Orbea Terra H40 Gravel Bike with Shimano GRX 10-Speed Groupset, 700 mm Handlebar, Metallic Night Black, 2023 Model, Frame Size 180–185 cm – Refurbished Product

Orbea

Orbea Terra H40 Gravel Bike with Shimano GRX 10-Speed Groupset, 700 mm Handlebar, Metallic Night Black, 2023 Model, Frame Size 180–185 cm – Refurbished Product Orbea

Name: Orbea Terra H40 Gravel Bike with Shimano GRX 10-Speed Groupset, 700 mm Handlebar, Metallic Night Black, 2023 Model, Frame Size 180–185 cm – Refurbished Product
Brand: Orbea
SKU: 3144227

€1,199.99

-39%

RRP when new €1,999.00

Non available

We will contact you by e-mail when this item is back in stock.

I also want to receive other offers by e-mail

Become Alltricks+ !

1 year benefits for 9.99€

For only 9.99€, enjoy 1 year of benefits:

Unlimited free 24-hour express delivery

Cashback discounts on thousands of products

100 days returns policy

Exclusive benefits

More about Alltricks+

The Alltricks+ subscription is not automatically renewed, no payment is required at the end of the 1 year period.

Description

Buying guide


	Please note that specifications are subject to change without notice, based on component availability and other factors.

Product origin:

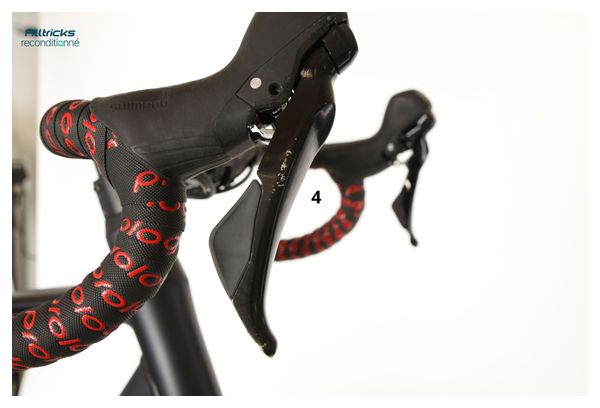

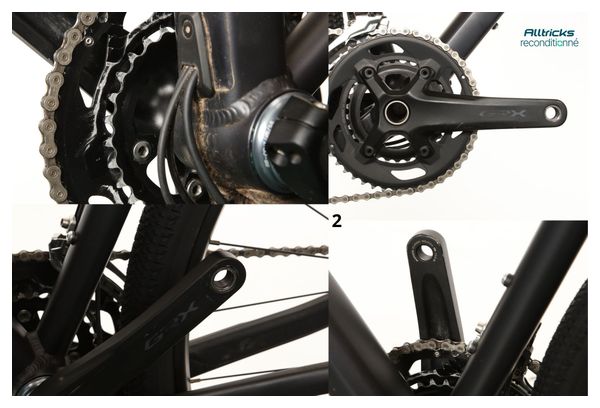

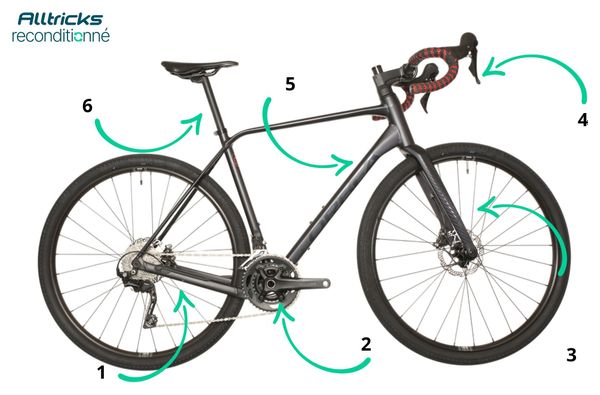

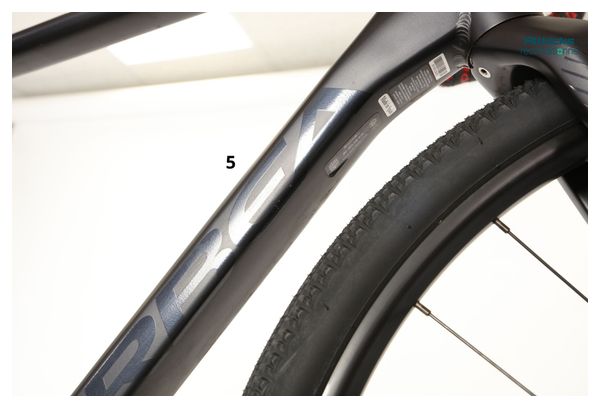

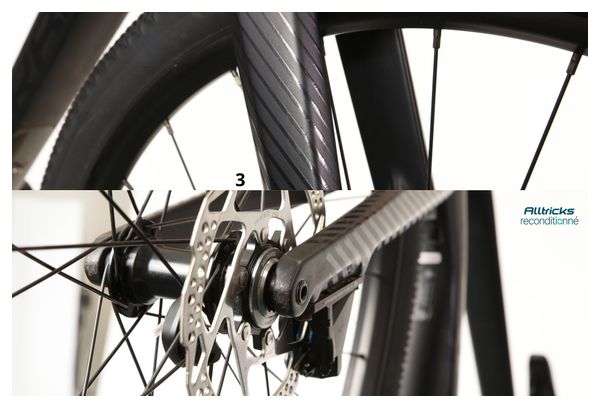

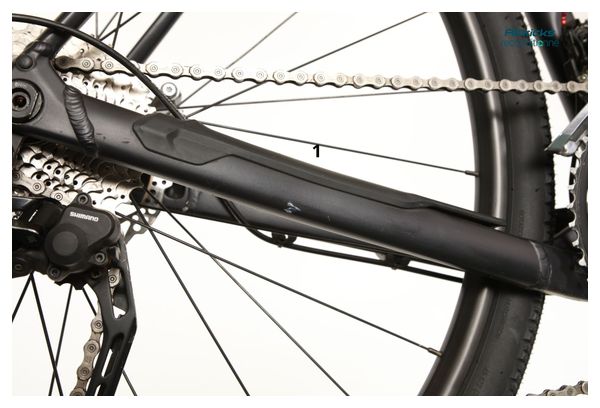

This product comes from a partner workshop. Following a quality inspection, minor damage was found (see photos with arrows).

Our workshop experts, who are just as passionate as you are, inspect every bike. They guarantee bikes that are "ready to ride" and come with a 2-year warranty, just like new:

Components are replaced if they are deemed unsafe or non-functional.
Consumables are replaced if they are 50% or more worn

Work performed and parts replaced:

Steering check
Brake system inspection
Wheel inspection and tightening: tires replaced.
Transmission adjustment and precision check: bottom bracket replaced.
The frame and components were also inspected for finish, assembly, and safety.

Size L / 180–185 cm

Description:

Endless explorations, extended getaways, country roads, and forest trails—everyone has their own definition of what gravel is. But there’s no doubt that a gravel bike must tackle all of this with control, speed, and comfort... and above all, with maximum enjoyment. Designed from the ground up for gravel,the Orbea Terra is not a modified road bike or a scaled-down mountain bike. The Terra IS gravel. Add comfort to your road rides, finally discover where that forest trail leads, or let your adventures stretch into the next day. The world is vast, and the Terra is ready to explore it alongside you.

Offering the greatest versatility in Orbea’s entire Terra lineup, the aluminum version is your ideal partner for unlimited exploration and extended getaways. Hydroformed aluminum tubes with carefully optimized dimensions ensure ultimate comfort on long rides, while integrated mounting points let you install a rear rack and panniers. If you feel the need to get away, the Terra H is ready to accompany you.

Orbea engineers manipulate the shapes and wall thicknesses of their aluminum frame tubes to increase their strength and resistance to unwanted flex. Many tubes are butted, which reduces weight in areas far from the stresses of joints and welds. The use of aluminum technologies as advanced as their carbon techniques ensures that Orbea aluminum bikes are never second-rate.

Product highlights:

The Terra is a balanced and precise gravel bike, with exceptional handling and control.
Your exploration companion.
Hydroformed aluminum frame and carbon fork.
Shimano GRX 2x10-speed drivetrain.
Shimano GRX RX400 hydraulic disc brakes.

Details:

Frame	Aluminum: Orbea Terra Hydro Disc, hydroformed triple-butted aluminum, top tube 1.5", bottom tube, 12x142 mm rear thru-axle, M12x2 P1 thread, DT internal cable routing, 27.2 mm seat tube, MMS system, tire clearance: 45C (or 650Bx50 mm)
Fork	Carbon: Orbea Terra ICR, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru Axle 12x100 mm, M12x2 P1 thread
Shifters	Shimano GRX ST-RX400, 2x10-speed
Front derailleur	Shimano GRX FD-RX400
Rear derailleur	Shimano GRX RD-RX400, 10-speed
Cassette	Shimano Tiagra HG-500, 11-34 teeth
Chain	KMC X10
Crankset	Shimano GRX FC-RX600, 46/30 teeth, 172.5mm
Brakes	Shimano GRX RX400, Hydraulic Disc Brake 160mm
Wheels	WTB, I25 700
Tires	Hutchinson Touareg 700x45
Handlebar	OC Gravel GR31-R, Rise 15 mm, Reach 70 mm, Drop 110 mm
Handlebar tape	Prologo
Stem	OC Road Performance RP21, -6º
Headset	FSA 1-1/2" Integrated Aluminum Cup
Saddle	Prologo Akero AGX, STN, 155 mm
Seatpost	Carbon, 27.2 mm, 20 mm setback
Weight	---
Color	D9 - Metallic Night Black (Matt-Gloss)
Part Number	N139

Frame Sizes:

Frame size	XS	S	M	L	XL	XXL
Seat tube (mm)	425	458	491	524	557	590
Top tube (mm)	526	539	558	570	590	603
Base length (mm)	430	430	430	430	430	430
Steering bushing (mm)	110	131	152	178	199	220
Steering angle (°)	70	70.5	71	71	71.5	72
Seat tube angle (°)	74	74	73.5	73.5	73	73
Wheelbase (mm)	1020	1030	1039	1054	1063	1072
Stack (mm)	526	548	570	592	614	636
Reach (mm)	375	382	389	395	402	409
Handlebar width (mm)	400	400	420	420	440	440
Stem length (mm)	70	80	90	90	100	110
Crank length (mm)	170	170	170	172.5	172.5	175
