Orbea Avant H30 Road Bike Shimano 105 12S 700 mm Magnetic Bronze Grey 2025
Orbea Avant H30 Road Bike Shimano 105 12S 700 mm Magnetic Bronze Grey 2025
Orbea
★★★★★
★★★★★
- 2 Reviews

Orbea Avant H30 Road Bike Shimano 105 12S 700 mm Magnetic Bronze Grey 2025 Orbea

€2,099.00

€2,099.00

€2,099.00

€2,099.00

€2,099.00

€2,099.00

€2,099.00

Frame size / rider height

Size Guide

Choose your option

47 cm / 155-160 cm

Out of stock

49 cm / 160-166 cm

Out of stock

51 cm / 167-172 cm

Out of stock

53 cm / 173-179 cm

Out of stock

55 cm / 180-185 cm

Out of stock

57 cm / 186-191 cm

Out of stock

60 cm / 192-207 cm

Out of stock

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

similar products

Description

What size do you need?


Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride

Measure yourself accurately

To get started, measure your height and use the size chart available on each product description.

What to do if you are in between bike sizes?

If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.

Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
  • If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
  • On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.

Still confused? Contact us
Choosing the right road bike

Please note that specifications are subject to change without notice, based on component availability and other factors.

Grab your Orbea Avant and fill your bottles before rolling out on your afternoon ride. No other machine can better help you enjoy the exhilaration of road cycling. The speed, freedom and the views offered by quiet roads are all included free with every Avant... and you love it.

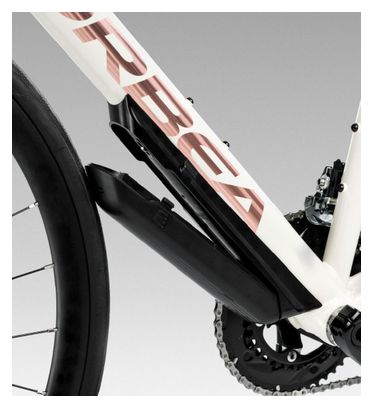

Internal Cable Routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment. The carbon layup and shaping of the Avant fork offers the best combination of elasticity, tire clearance and torsional stiffness. The fork legs sport integrated fender mounts and ample tire clearance for even more versatility. Leave the saddle bag at home with the made-to-measure Service box. There is space for necessities like tubes, CO2 cartridges, tire levers and house keys.

The Avant receives the same level of design attention as Orbea's carbon frames. The tubes are butted and hydroformed with smooth, polished welds to match the dramatic look of the monocoque frame.

Main features:

  • A perfect companion, no matter how far the road takes you.
  • Avant is a capable alloy road bike packed with advanced manufacturing and clever features.
  • Aluminium frame and carbon fork.
  • Shimano 105 2x12-speed drivetrain.
  • Shimano 105 R7170 hydraulic disc brakes.

Features:

Frame Aluminium: Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1.5" ICR, BB 68 mm – BSC English, Thru Axle 12x142 mm rear, thread M12x2 P1, Internal Cable Routing, SP 27.2 mm, MMS system, Tire Clearance: 35C (32C with mudguard)
Fork Carbon: Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru axle 12x100 mm, thread M12x2 P1
Shifters Shimano 105 ST-R7120, 2x12-speed
Front Derailleur Shimano 105 FD-R7100
Rear Derailleur Shimano 105 RD-R7100, 12-speed
Cassette Shimano 105 CS-R7100, 11-34T
Chain Shimano CN-M6100
Crankset Shimano FC-RS520, 50/34T
Bottom Bracket 68 mm, BSC English
Brakes Shimano 105 BR-R7170, Hydr. Disc Brake
Wheelset Alloy, Tubeless, 19c, 28H, 12x100/12x142 mm, 700c
Tires Vittoria Zafiro V, Rigid, 700x28c
Handlebar OC Road Perfornace RP31-R, Rise 15 mm, Reach 70 mm, Drop 125 mm
Bar Tape Orbea EVA
Stem OC Road Performance RP22, -5º
Headset FSA 1-1/2" Integrated Aluminium Cup
Saddle Fizik Aliante R5
Seatpost SP 0.6, Alloy, 27.2 mm, Setback 20 mm
Accessories OC Toolbox TB03PP
Weight ---
Color BD - Magnetic Bronze (Matt) - Cosmic Bronze (Gloss)
Reference S103

Geometries:

Frame Size (cm) 47 49 51 53 55 57 60
Seat Tube (mm) 420 445 470 495 520 545 575
Top Tube (mm) 515 531 544 558 570 587 599
Head Tube Length (mm) 111 130 149 169 191 211 231
Chain Stays (mm) 420 420 420 420 420 420 420
Head Tube Angle (°) 70.5 71 71.5 71.8 72 72.2 72.5
Seat Tube Angle (°) 74.5 74 73.8 73.8 73.8 73.2 73.2
Wheelbase (mm) 996 1003 1010 1019 1030 1042 1051
Stack (mm) 525 545 565 585 605 625 645
Reach (mm) 370 375 380 385 391 398 404

MORE INFORMATION

See all our Road bikes.

Features

Gender Men
Women
Wheel Size 700mm
Groupset Shimano 105
