Orbea Ordu M20iLTD Triathlon Bike Shimano Ultegra Di2 12S 700 mm Carbon Raw Grey Wine Red 2024
Orbea Ordu M20iLTD Triathlon Bike Shimano Ultegra Di2 12S 700 mm Carbon Raw Grey Wine Red 2024
Orbea Ordu M20iLTD Triathlon Bike Shimano Ultegra Di2 12S 700 mm Carbon Raw Grey Wine Red 2024
Orbea

Orbea Ordu M20iLTD Triathlon Bike Shimano Ultegra Di2 12S 700 mm Carbon Raw Grey Wine Red 2024 Orbea

€7,038.99

RRP €7,999.00

€7,038.99

RRP €7,999.00

€5,176.99

RRP €7,999.00

€7,038.99

RRP €7,999.00

Frame size / rider height

Size Guide

Choose your option

XS / 160-170 cm

Out of stock

S-M / 170-180 cm

Out of stock

M-L / 175-185 cm

Out of stock

XL / 185-195 cm

Out of stock

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

similar products

Description

What size do you need?


Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride

Measure yourself accurately

To get started, measure your height and use the size chart available on each product description.

What to do if you are in between bike sizes?

If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.

Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
  • If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
  • On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.

Still confused? Contact us
Choosing your Triathlon Bike

Please note that specifications are subject to change without notice, based on component availability and other factors.

Just like triathlon is a competition of multiple disciplines, Orbea Ordu is an elegant blend of aerodynamics, weight, handling and ergonomics. Once you have experienced Ordu’s multiple strengths, it is impossible to feel confident with a lesser machine. For those who aim to be the fastest, most efficient and decorated athletes, Ordu is the future. You and triathlon will never be the same again.

Historically, considering only the three design factors of aerodynamics, stiffness and weight rarely yeilds dramatic improvement. Big gains in one of the three areas always compromise one or both of the others. The key to building the best triathlon bike is finding the balance of these targets, and identifying additional performance factors that allow the rider to increase efficiency. It required more than 2,500 hours of calculations… Analyzing the frame, fork and cockpit assembly and identifying areas to refine and reduce aerodynamic resistance.

Ordu is designed to fit the widest possible range of riders. The ergonomics are easily modified over a huge range with just a few adjustment points, easily adaptable for any rider or race regulations. It doesn’t matter if you’re very flexible or not…Ordu will meet your needs. This big range of adjustability doesn’t only offer precise positioning, it results in better overall performance.

The Orbea Ordu is for the serious triathlete looking to upgrade an existing bike to something faster and more ergonomic with more integration and lower weight. Ordu is also the choice of elite or professional road racers who need a UCI-legal time trial bike. Ordu is the racing platform of many Orbea-sponsored teams, and of course our Orbea Pro Triathletes, Fundacion Euskadi and Ceratizit - WNT Team riders.

Main features:

  • Ordu is an elegant blend of aerodynamics, weight, handling and ergonomics.
  • Carbon OMX frame and fork.
  • Shimano Ultegra Di2 2x12-speed drivetrain.
  • Shimano Dura-Ace R9270 hydraulic disc brakes.

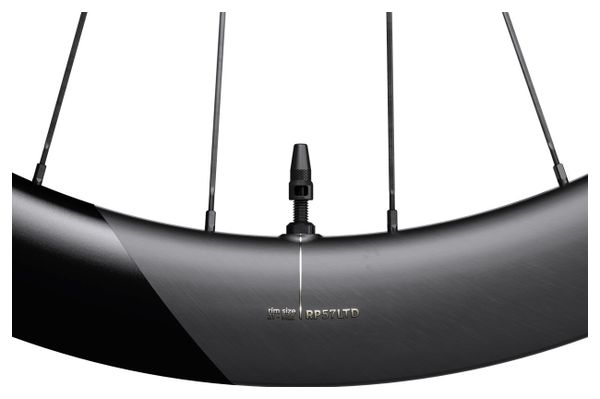

  • Oquo Road Performance RP57 LTD Carbon wheelset, 57 mm profile.

Features:

Frame Carbon: Orbea Ordu carbon OMX Disc, monocoque construction, HS 1" - 1 1/8" mini tapered, BB 386 mm, powermeter compatible, Thru Axle 12x142 mm, thread M12x2 P1, Speed release compatible dropout, Internal Cable Routing
Fork Carbon: Orbea Ordu OMX ICR fork 2021, full carbon, 1" head tube, Thru Axle 12x100 mm, thread M12x2P1, Speed release compatible dropout, UCI Legal
Shifters Shimano Dura-Ace Di2 ST-R9180 (Triathlon / TT), 2x12-speed
Front Derailleur Shimano Ultegra Di2 R8150
Rear Derailleur Shimano Ultegra Di2 R8150, 12-speed
Cassette Shimano Ultegra R8100, 11-30T
Chain Shimano M8100
Crankset Shimano Ultegra R8100, 52/36T
Bottom Bracket BB386
Brakes Shimano Dura-Ace R9270, Hydr. Disc Brake
Wheelset Oquo Road Performance RP57LTD, carbon, 21c, 24H, 700c
Tires Vittoria Corsa N.Ext, G2.0, Foldable, 700x28c
Handlebar Orbea Ordu OMX / Vision Metron TFA Carbon Aero Clip-on JS-Bend (Non UCI compliant)
Bar Tape Orbea Eva
Stem Orbea Ordu OMX
Headset FSA 1-1/8"-1" Integrated Aluminium Cup
Saddle Fizik Argo Vento R5, size 140 mm
Seatpost Orbea Ordu OMX, w/Micro tilt adjustment
Accessories OC Aero Bottle RA10 (550 ml) + Carbon Cage Kit RA10 / OC Aero Toolbox TB01PP
Weight ---
Color BX - Carbon Raw (Matt) - Wine Red Shades (Gloss)
Reference R136

Geometries:

Frame Size XS S-M M-L XL
Chain Stays (mm) 405 405 405 405
Head Tube Length (mm) 59 96 96 149
Head Tube Angle (°) 72 72 72 72
Seat Tube Angle (°) 74 / 78 74 / 78 74 / 78 74 / 78
Wheelbase (mm) 971 1007 1007 1048
Stack (mm) 481 / 451 516 / 486 516 / 486 566 / 536
Reach (mm) 481 / 361 505 / 385 505 / 385 529 / 409
Crank Length (mm) 170 170 170 172.5
