Trek Émonda ALR 4 Disc Road Bike Shimano Tiagra 10V 700 mm Grey Lithium
Trek Émonda ALR 4 Disc Road Bike Shimano Tiagra 10V 700 mm Grey Lithium
Trek Émonda ALR 4 Disc Road Bike Shimano Tiagra 10V 700 mm Grey Lithium
Trek Émonda ALR 4 Disc Road Bike Shimano Tiagra 10V 700 mm Grey Lithium
Trek Émonda ALR 4 Disc Road Bike Shimano Tiagra 10V 700 mm Grey Lithium
Trek Émonda ALR 4 Disc Road Bike Shimano Tiagra 10V 700 mm Grey Lithium
Trek Émonda ALR 4 Disc Road Bike Shimano Tiagra 10V 700 mm Grey Lithium
Trek Émonda ALR 4 Disc Road Bike Shimano Tiagra 10V 700 mm Grey Lithium
Trek Émonda ALR 4 Disc Road Bike Shimano Tiagra 10V 700 mm Grey Lithium
Trek Émonda ALR 4 Disc Road Bike Shimano Tiagra 10V 700 mm Grey Lithium
Trek

Trek Émonda ALR 4 Disc Road Bike Shimano Tiagra 10V 700 mm Grey Lithium Trek

€1,949.00

€1,949.00

€1,949.00

€1,949.00

€1,949.00

€1,949.00

€1,949.00

€1,949.00

€1,949.00

Frame size / rider height

Size Guide

Choose your option

47 cm / 152-158 cm

Out of stock

50 cm / 158-163 cm

Out of stock

52 cm / 163-168 cm

Out of stock

54 cm / 168-174 cm

Out of stock

56 cm / 174-180 cm

Out of stock

58 cm / 180-185 cm

Out of stock

60 cm / 185-190 cm

Out of stock

62 cm / 190-195 cm

Out of stock

64 cm / 195-200 cm

Out of stock

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

similar products

Description

What size do you need?


Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride

Measure yourself accurately

To get started, measure your height and use the size chart available on each product description.

What to do if you are in between bike sizes?

If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.

Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
  • If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
  • On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.

Still confused? Contact us
Choosing the right road bike

Please note that specifications are subject to change without notice, based on component availability and other factors.

TheÉmonda ALR 4 Disc is a lightweight aluminum road bike with powerful hydraulic disc brakes, a quality drivetrain and a frame that's as sleek and efficient as a much more expensive carbon model. It's ideal for beginner cyclists and those who value the braking power and tire clearance offered by disc brakes.

Product Highlights:

  • Ultra-lightweight 300 Series aluminum Alpha frame.
  • Shimano Tiagra 2x10 speed transmission.
  • Shimano Tiagra hydraulic disc brakes, 160/160 mm.

Details :

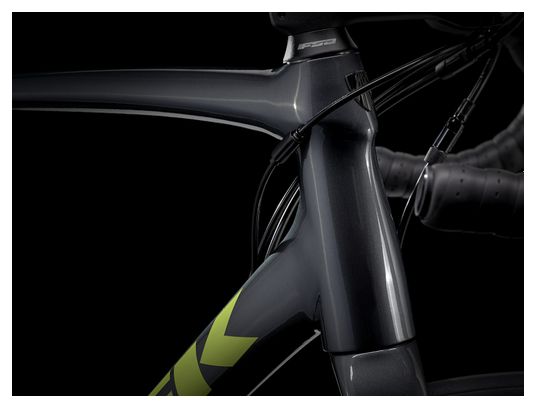

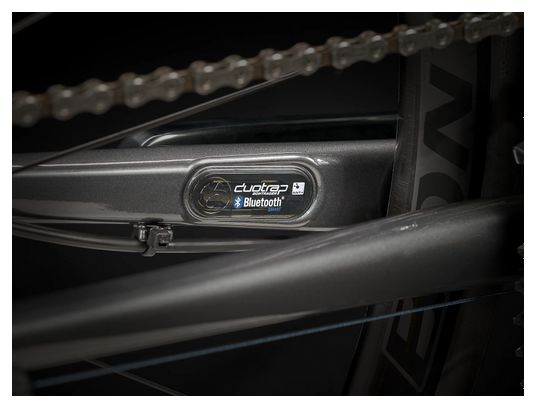

Frame Aluminum: Ultra-lightweight Alpha 300 Series aluminum, Invisible Weld technology, tapered head tube, Control Freak internal routing, DuoTrap S compatible, Flat-Mount disc brakes, 142x12 mm thru axle
Fork Aluminum

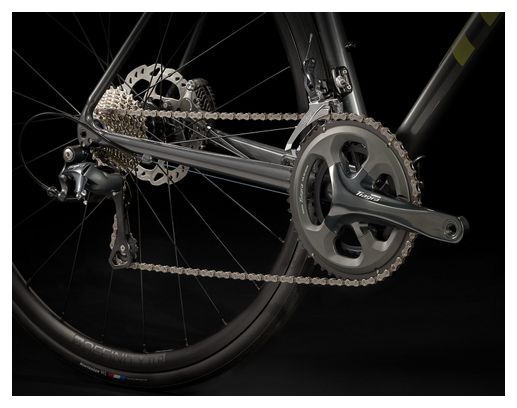

Shifter Shimano Tiagra R4725, short lever, 2x10 speeds
Front derailleur Shimano Tiagra 4700, braze-on
Rear derailleur Shimano Tiagra 4700, long cage, 34 dts max sprocket, 10 speeds
Sprocket set Shimano Tiagra HG500, 12-28 Teeth
Chain Shimano Tiagra HG54
Crankset Size: 47, 50, 52
Shimano Tiagra 4700, 50/34, length 170 mm
Size: 54, 56
Shimano Tiagra 4700, 50/34, length 172,5 mm
Size: 58, 60, 62, 64
Shimano Tiagra 4700, 50/34, length 175 mm
Bottom bracket Shimano BB71, 86.5 mm, PressFit

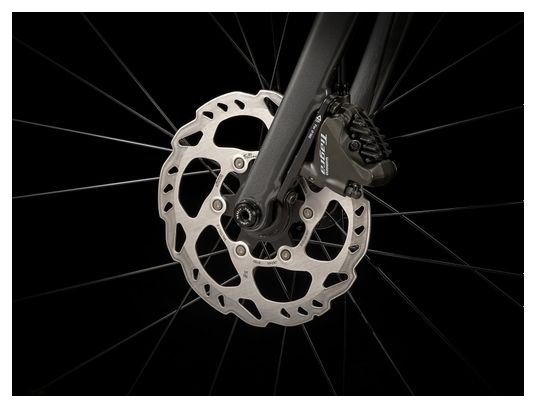

Brakes Shimano Tiagra hydraulic disc / Shimano SM-RT70, centerlock, 160/160 mm
Wheels Bontrager Affinity Disc, Tubeless Ready, 24 holes, 21 mm width, presta valve
Hubs F: Bontrager alloy, sealed bearing, centerlock disc, 100x12 mm thru axle / R: Bontrager alloy, sealed bearing, centerlock disc, 100x12 mm thru axle
Tires Bontrager R1 Hard-Case Lite, 60 tpi, 700x25C
Handlebars Size: 47
Bontrager Comp VR-C, alloy, 31,8 mm, 100 mm deep, 124 mm high, 38 cm wide
Size: 50, 52
Bontrager Comp VR-C, alloy, 31,8 mm, 100 mm deep, 124 mm high, 40 cm wide
Size: 54, 56
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm deep, 124 mm high, 42 cm wide
Size: 58, 60, 62, 64
Bontrager Comp VR-C, alloy, 31.8 mm deep, 124 mm high, 44 cm wide
Stem Size: 47
Bontrager Elite, 31.8 mm, Blendr compatible, 7 degrees, length 70 mm
Size: 50
Bontrager Elite, 31.8 mm, Blendr compatible, 7 degrees, length 80 mm
Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 90 mm length
Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 100 mm length
Size: 60, 62
Bontrager Elite, 31.8 mm, Blendr compatible, 7 degree, 110 mm length
Handlebar tape Bontrager Supertack Perf handlebar tape
Saddle Bontrager Montrose Comp, steel rails, 138 mm wide
Saddle post Size: 47
Bontrager Comp, alloy 6061, 27.2 mm, 8 mm offset, 250 mm length
Size: 50, 52, 54, 56, 58, 60, 62, 64
Bontrager Comp, alloy 6061, 27.2 mm, 8 mm offset, 330 mm length
Weight 9.33 kg
Colors Lithium Grey

Geometries :

Frame size (cm) 47 50 52 54 56 58 60 62 64
Saddle tube (mm) 444 476 493 506 533 553 573 593 613
Top tube (mm) 513 521 534 543 560 573 586 598 610
Base length (mm) 410 410 410 410 410 411 411 412 413
Steering sleeve (mm) 115 130 140 155 170 190 210 230 250
Steering angle (°) 71.2 72.1 72.8 73 73.5 73.8 73.9 73.9 74
Seat tube angle (°) 74.6 74.6 74.2 73.7 73.3 73 72.8 72.5 72.3
Wheelbase (mm) 974 974 977 981 983 992 1001 1010 1018
Stack (mm) 522 535 547 555 577 596 615 634 654
Reach (mm) 369 374 379 381 387 391 395 398 401

MORE INFORMATION

See all our Road bikes.

Features

Manufacturer Weight (g) 9330
Gender Men
Wheel Size 700mm
Groupset Shimano Tiagra
