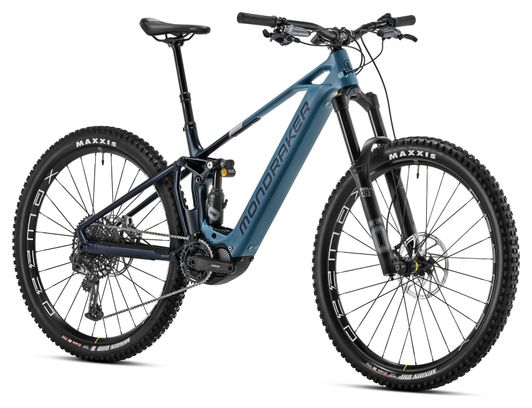

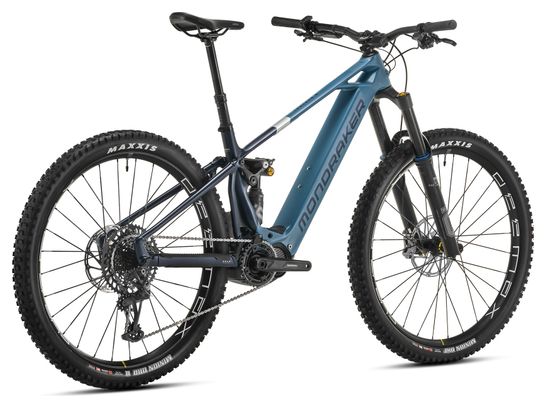

Mondraker Crusher R Full-Suspension Electric MTB Sram GX/X01 Eagle 12V 720 Wh 29'' Blue 2025 Mondraker
€8,299.00
€8,299.00
€8,299.00
€8,299.00
Save with our perfect combination
Save up to with our perfect combination
Our perfect combination
Add the pack
Your item
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Please note that specifications are subject to change without notice, based on component availability and other factors. |
The Mondraker Crusher R is equipped with an Öhlins RXF 38 M.2 29 fork, Sram X01 Eagle derailleur, Sram Code Bronze Stealth brakes, OnOff Pija seatpost (with 125 to 200 mm travel depending on frame size) and Maxxis Minion DHF/DHR II 2.6’ EXO+ tyres. Available in ‘Denim Blue - Navy Blue - Racing Silver’.
Main features:
- Carbon frame with aluminium rear triangle and 150 mm travel.
- Sram GX/X01 Eagle 1x12 speed drivetrain.
- Sram Code Bronze Stealth hydraulic disc brakes, 4 pistons, 200/200 mm.
- Shimano Steps EP801 motor with 720 Wh battery.
Features:
| Frame | Aluminum / Carbon: Crusher Stealth Air Carbon front triangle, Atealth Alloy rear triangle, Zero Suspension System optimized for e-Bikes, 150 mm caster, Forward Geometry, non-removable internal integrated battery, Boost 12x148 mm rear axle, tapered head tube, one-piece monoblock top link, HHG internal cable routing, max. capacity sealed bearings, oversized 17 mm axle, speed sensor integrated into rear dropout, exclusive plastic motor guards |
| Forks | Öhlins RXF 38 M.2 29, 160 mm, TTX18 Twin Tube cartridge, tapered pivot, 15x110 mm Boost axle, 44 mm offset. Settings: high-speed compression with climb mode, low-speed compression, rebound, air preload, ramp air chamber. |
| Shock absorber | Öhlins TTX Air 205x65 mm. Settings: high-speed compression with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10 mm lower rings |
| Motor | Shimano STEPS EP801, 85Nm |
| Battery | Simplo internal 720 Wh G3 |
| Screen | Shimano EN600 |
| Derailleur lever | Sram Trigger GX Eagle, X-Actuation 1:1, one click, 1x12-speed |
| Rear derailleur | Sram X01 Eagle, Roller bearing clutch Type 3, cage lock, X-Actuation 1:1, 12-speed |
| Cassette | Sram XG-1275, 10-52T |
| Chain | Sram NX Eagle, 12 speeds, Powerlock |
| Crankset | Shimano Steps FC-EM600 ebike, 165 mm, Sram X-Sync 2 Eagle 34T chainring, Alloy, narrow width, 104 BCD |
| Brakes | Sram Code Bronze Stealth, 4-piston caliper, single-piece 6-bolt Centerline 200/200 mm IS disc, metallic pads |
| Wheelset | Mavic E-Deemax 29, 30 mm internal width, welded, PFP, tubeless compatible, 28 spokes, 15x110/12x148 mm, XD freehub |
| Tires | Front tires: Maxxis Minion DHF 29x2.6, tubeless compatible, 3C MAXX TERRA rubber, EXO+ protection, 120 TPI, soft bead / Rear: Maxxis Minion DHR II 29x2.6, tubeless compatible, 3C MAXX TERRA rubber, EXO+ protection, 120 TPI, soft bead |
| Handlebar | Onoff Krypton 1.0, curve: 25 mm, width: 800 mm, bend 9º, rise 5º, bore 31.8 mm |
| Grips | Onoff Desert, 1 lock-on, 135 mm |
| Stem | Onoff Krypton FG 30 mm, CNC, 31.8 mm bore |
| Saddle | Fizik Terra Aidon X5 145 mm |
| Seat post | Onoff Pija dropper internal, diameter 31.6 mm, 1x remote lever with bearing |
| Weight | 24.1 kg |
Geometries :
| Frame size | S | M | L | XL |
| Seat tube (mm) | 380 | 420 | 450 | 490 |
| Top tube (mm) | 605 | 625 | 650 | 670 |
| Head tube (mm) | 110 | 110 | 130 | 130 |
| Chainstay (mm) | 455 | 455 | 455 | 455 |
| Head tube angle (°) | 65 | 65 | 65 | 65 |
| Seat tube angle (°) | 73.5 | 73.5 | 73.5 | 73.5 |
| Wheelbase (mm) | 1227 | 1247 | 1267 | 1287 |
| Stack (mm) | 622 | 622 | 640 | 640 |
| Reach (mm) | 450 | 470 | 490 | 510 |
| Seatpost travel (mm) | 125 | 150 | 170 | 200 |
MORE INFORMATION
See our best MTBs.
Discover the whole All-Mountain *MTB's range
Features
| Frame material | Alloy / Carbon |
| Groupset | Sram X01 Eagle |
