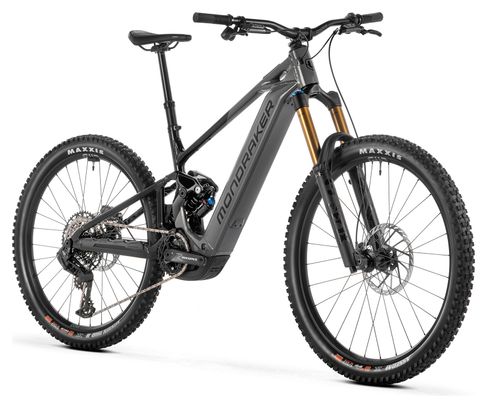

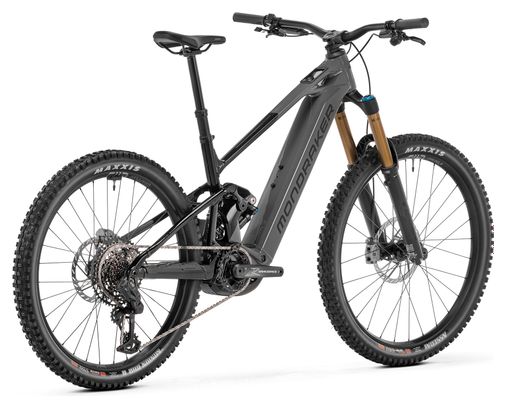

Mondraker Level RR Sram S1000 AXS T-Type 12V 800 Wh MX (29/27.5'') Grey/Black 2026 All-Suspension Electric Mountain Bike Mondraker
€7,999.99
RRP €8,499.00
€7,999.99
RRP €8,499.00
Including 12.94€ eco-participation
€7,999.99
RRP €8,499.00
Including 12.94€ eco-participation
€7,999.99
RRP €8,499.00
€7,999.99
RRP €8,499.00
Save with our perfect combination
Save up to with our perfect combination
Our perfect combination
Add the pack
Your item
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Please note that specifications are subject to change without notice, based on component availability and other factors. |
The
Product highlights :
- 6061 Level Stealth Evo aluminum frame with 170 mm of travel.
- Sram S1000 AXS T-Type 1x12-speed transmission.
- Fox suspension.
- Sram Maven Bronze hydraulic disc brakes, 4 pistons, 220/200 mm.
Details :
| Frame | Aluminum: Level 6061 Alloy Stealth Evo, Zero Suspension System optimized for e-Bikes, 170-mm caster, Forward Geometry, non-removable internal battery, 12x148-mm Boost rear axle, tapered head tube, one-piece monoblock top link, HHG internal cable routing, max. capacity sealed bearings, oversized 17-mm axle, speed sensor integrated into rear dropout, exclusive plastic motor guards |
| Fork | Fox 38 29 Float GRIPX2 Factory Kashima, 180 mm, tapered fork steerer, Boost 15x110 m Kabolt axle, 44 mm offset. Adjustments: high- and low-speed compression, high- and low-speed rebound, pneumatic preload |
| Shock absorber | Fox DHX2 Performance Elite, 205x65mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, lower bushes 30x8 mm |
| Motor | Bosch Performance Line CX (25 Km/h) GEN5 Smart System, 100 Nm |
| Battery | Bosch Powertube 800 Wh |
| Display | Bosch Kiox 400C / Bosch Mini Remote / Bosch System Controller |
| Derailleur lever | Sram AXS Pod MMX, 1x12 speeds |
| Rear derailleur | Sram S1000 T-Type, 12 speeds |
| Cassette | Sram XS-1270 T-Type, 10-52 teeth |
| Chain | Sram GX T-Type, Powerlock |
| Crankset | Race Face Effect ebike, 160 mm, Sram X-Sync 2 T-Type 34-tooth chainring, steel, BCD 104 |
| Brakes | Sram Maven Bronze, 4-piston oversize caliper, HS2 6-hole Centerline 220/200 mm IS disc, sintered metal pads on steel |
| Wheels | E*thirteen Grappler Core, welded 6066 aluminum without hook, 30 mm inner width, tubeless compatible, 28 spokes, e*thirteen Boost 15x110/12x148 mm 6-hole hubs, XD freewheel |
| Tires | Maxxis Assegai 29x2.6 WT, tubeless compatible, 3C MAXX GRIP rubber, DD casing, 120x2 TPI, soft bead ring/Maxxis Minion DHR II 27.5x2.6 WT, tubeless compatible, 3C MaxxTerra rubber, DD protection, 120x2TPI, soft bead ring |
| Handlebars | Onoff S6 1.0 alloy 7050, width: 800mm, 8º backsweep, 5º upsweep, bore 31.8 mm |
| Handles | Onoff Desert Pro, CNC lock-on, 135mm |
| Stem | Onoff S6 30mm 0º, forged alloy 6061+ CNC, bore 31.8 mm |
| Headset | Onoff ZS44/ZS56, 1-1/8", 1.5" steerer bushing, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º |
| Saddle | Fizik Terra Aidon X5 145 mm |
| Seat post | Onoff Pija dropper internal, diameter 31.6 mm |
| Weight | 26.9 kg |
Geometries :
| Frame size | S | M | M/L | L | XL |
| Seat tube (mm) | 380 | 410 | 435 | 460 | 490 |
| Top tube (mm) | 576 | 598 | 620 | 642 | 664 |
| Base length (mm) | 445 | 445 | 445 | 445 | 445 |
| Steering bushing (mm) | 110 | 120 | 130 | 140 | 150 |
| Steering angle (°) | 64 | 64 | 64 | 64 | 64 |
| Seat tube angle (°) | 75.3 | 75.3 | 75.3 | 75.3 | 75.3 |
| Wheelbase (mm) | 1236 | 1260 | 1284 | 1319 | 1343 |
| Stack (mm) | 640 | 649 | 658 | 667 | 676 |
| Reach (mm) | 440 | 460 | 480 | 500 | 520 |
| Seatpost travel (mm) | 115-140 | 135-160 | 155-180 | 185-210 | 185-210 |
MORE INFORMATION
See our best MTBs.
Features
| Frame material | Alloy |
| Groupset | Sram S1000 Eagle AXS |
