Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Please note that specifications are subject to change without notice, based on component availability and other factors. |

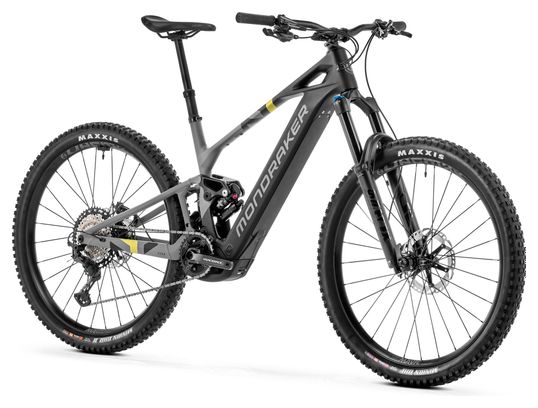

The Mondraker Crafty Carbon R is your passport to riding Mondraker's best ebike range to date. The Bosch CX motor, the heart of the machine, is combined with the fully removable Bosch 800Wh battery (accessible via a cover under the down tube). This is the only model equipped with the Shimano XT M8100 groupset, featuring four-piston XT brakes, a 12-speed XT derailleur and a 10-51 cassette.
Main features:
- Carbon/aluminium frame, Zero suspension system optimized for electric bikes.
- Long-range Bosch Powertube 800 Wh battery.
- Shimano XT 12-speed transmission.
- Shimano XT 203/203 mm hydraulic disc brakes.
Features:
| Frame | Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, updated Zero Suspension System, Mullet, 150 mm headset, Forward Geometry, removable internal battery, 12x148 mm Boost rear axle, tapered head tube, one-piece monoblock top link, HHG internal cable routing, max. capacity sealed bearings, 15 mm oversize axle, exclusive plastic motor protectors. |
| Fork | Fox 38 29 Float GRIP Performance, 160 mm, optimized for e-bikes, tapered fork steerer, 15x110 mm Boost axle, 44 mm offset, 68 mm OD triple clamp. Adjustments: 3 positions with micro-adjustable compression, low-speed rebound, pneumatic preload |
| Shock absorber | Fox Float-X LV Performance, 185x55 mm. Adjustments: 2-position compression lever, low-speed rebound, pneumatic preload. Trunnion top mount, 30x8 mm lower bushings |
| Motor | Bosch Performance Line CX Cruise (25 km/h) Gen5 SmartSystem (BDU384Y), 85Nm |
| Battery | Bosch Powertube 800 Wh |
| Display | Bosch Purion 400 / Bosch Mini Remote |
| Derailleur lever | Shimano XT M8100, Rapid Fire Plus, 1x12 speed |
| Rear derailleur | Shimano XT M8100, SGS, Shadow+, 12 speed |
| Cassette | Shimano XT M8100 10-51T Hyperglide+ |
| Chain | Shimano XT M8100 |
| Crankset | Race Face Affect -R ebike, 160 mm, Race Face bearing, 34T, steel, direct mount |
| Brakes | Shimano XT M8120, 4 pistons, MT800 ICE-Tech 203mm discs, resin pads with fins |
| Wheelset | Mavic E-Deemax 29, 30 mm internal width, welded, PFP, tubeless compatible, 28 spokes, ID360, MS freehub |
| Tires | Maxxis Minion DHF 29x2.6, tubeless compatible, 3C MAXX TERRA rubber, EXO+ protection, 120 TPI, soft bead / Maxxis Minion DHR II 29x2.6, tubeless compatible, 3C MAXX TERRA rubber, EXO+ protection, 120 TPI, soft bead |
| Handlebar | OnOff S6 1.0 alloy 7050, curve: 25 mm, width: 800 mm, bend 8º, rise 5º, bore 31.8 mm. Size L and XL: curve 1.5. |
| Grips | OnOff Forest, CNC lock-on, 135 mm |
| Stem | OnOff S6 30mm 0º, 6061+ CNC forged alloy, 31.8mm bore |
| Headset | Acros custom ZS56/ZS56, 1-1/8‘, 1.5’ steerer bushing, internal cable routing, non-blocklock sealing cap |
| Saddle | Ergon SM-10 |
| Seat post | OnOff Pija dropper internal, 31.6 mm diameter, 1X remote lever with bearing |
| Weight | 23.9 kg |
Geometries :
| Frame size | S | M | M/L | L | XL |
| Seat tube (mm) | 380 | 410 | 435 | 460 | 490 |
| Top tube (mm) | 581 | 596 | 618 | 640 | 662 |
| Chainstay (mm) | 455 | 455 | 455 | 465 | 465 |
| Head tube (mm) | 120 | 120 | 130 | 140 | 150 |
| Head tube angle (°) | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| Seat tube angle (°) | 73 | 73 | 73 | 73 | 73 |
| Wheelbase (mm) | 1240 | 1255 | 1280 | 1314 | 1338 |
| Stack (mm) | 638 | 638 | 647 | 656 | 665 |
| Reach (mm) | 445 | 460 | 480 | 500 | 520 |
| Seatpost travel (mm) | 115-140 | 135-160 | 155-180 | 185-210 | 185-210 |
