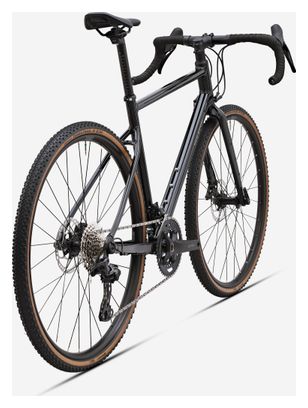

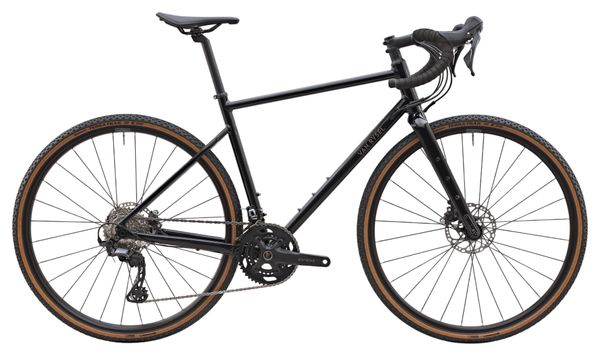

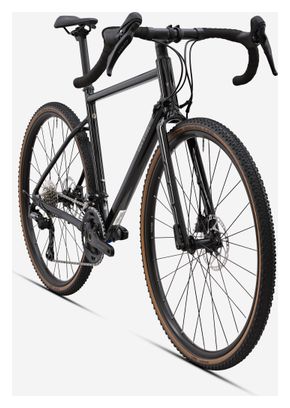

Van Rysel GRVL AF Gravel Bike with Shimano GRX 12-speed drivetrain, 700 mm, Black

Van Rysel

Van Rysel GRVL AF Gravel Bike with Shimano GRX 12-speed drivetrain, 700 mm, Black Van Rysel

Name: Van Rysel GRVL AF Gravel Bike with Shimano GRX 12-speed drivetrain, 700 mm, Black
Brand: Van Rysel
SKU: 3665400

€1,699.00

Frame size / rider height

Size Guide

L / 181-186 cm

XS / 155-166 cm

Out of stock

S / 166-173 cm

Out of stock

M / 173-181 cm

Out of stock

L / 181-186 cm

Delivery from friday

€1,699.00

XL / 186-196 cm

Out of stock

Non available

We will contact you by e-mail when this item is back in stock.

I also want to receive other offers by e-mail

Non available

We will contact you by e-mail when this item is back in stock.

I also want to receive other offers by e-mail

Non available

We will contact you by e-mail when this item is back in stock.

I also want to receive other offers by e-mail

€1,699.00

Sold by Alltricks

Delivery from friday

Non available

We will contact you by e-mail when this item is back in stock.

I also want to receive other offers by e-mail

Become Alltricks+ !

1 year benefits for 9.99€

For only 9.99€, enjoy 1 year of benefits:

Unlimited free 24-hour express delivery

Cashback discounts on thousands of products

100 days returns policy

Exclusive benefits

More about Alltricks+

The Alltricks+ subscription is not automatically renewed, no payment is required at the end of the 1 year period.

Description

Buying guide


	Please note that specifications are subject to change without notice, based on component availability and other factors.

Looking for adventure? This GRVL AF gravel bike from Van Rysel, made of aluminum, offers comfort and performance for your regular rides with its 2x12-speed drivetrain, 40mm tires, and hydraulic disc brakes.
The GRVL AF was designed for cyclists seeking fun and escape: a high-performance aluminum frame, a dynamic carbon fork, and comfortable geometry for riding on both roads and trails.

Product highlights:

Comfortable and dynamic 6061 aluminum frame and carbon fork.
Powerful and precise Shimano GRX hydraulic disc brakes.

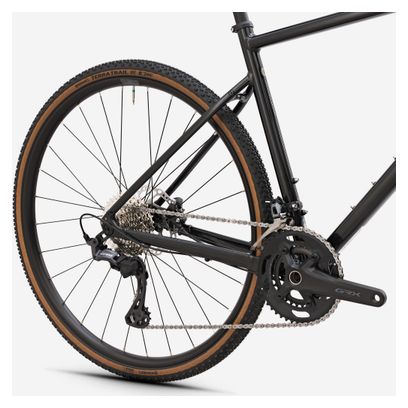

Smooth and versatile Shimano GRX 2x12-speed drivetrain.

Details:

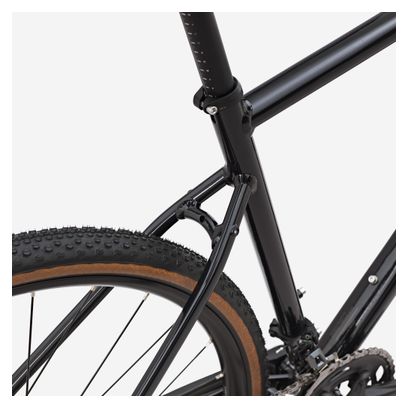

Frame	Double-butted 6061 aluminum, compatible with tires up to 50 mm, compatible with fenders and racks, 1870 g (size M)

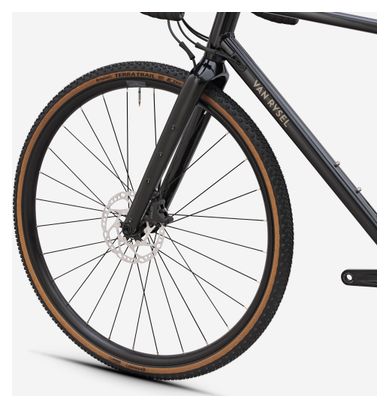

Fork	Carbon with aluminum pivot, inserts for panniers and bottle cages, compatible with tires up to 50 mm, 12x100 mm

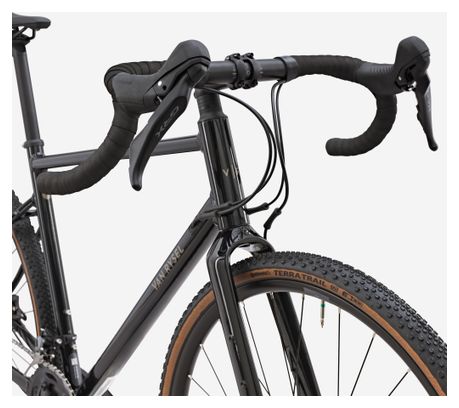

Shift lever	Shimano GRX 610, 2x12-speed
Rear derailleur	Shimano GRX RD RX820D Direct Mount, 12-speed
Front derailleur	Shimano GRX FD RX820F, 12-speed
Cassette	Shimano CS-HG710, 11-36 teeth
Chain	Shimano M7100 12-speed
Crankset	Shimano GRX RX-610, 30/46 teeth
Bottom bracket	Shimano SM-BBR60, 68 mm BSA
Brakes	Shimano GRX BR-RX400 Flatmount, Shimano SM-RT64 Centerlock discs 160/160 mm
Wheels	6069 aluminum Tubeless Ready rims, 12x100 / 12x142 mm, Centerlock hubs

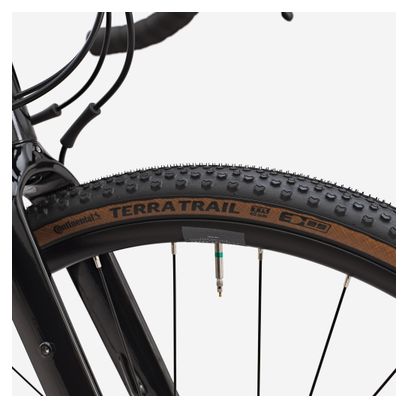

Tires	Continental Terra Trail 700 x 40C Tubeless Ready
Handlebar	6061 T6 aluminum, 16° flare, 31.8 mm diameter
Stem	6061 T6 aluminum, 7°/-7° angle

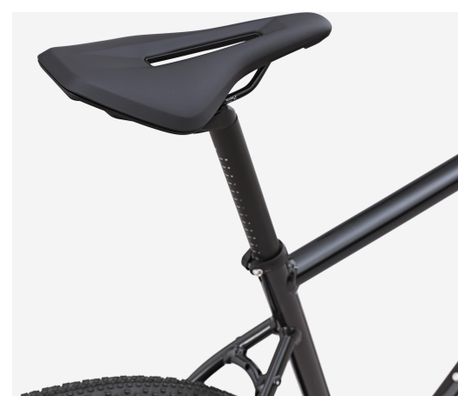

Saddle	DECATHLON CONFORT 30°, width 155 mm
Seatpost	B'TWIN 6061 T6 aluminum, 27.2 mm diameter
Weight	10.60 kg (size M)
Maximum weight	This bike has a maximum total weight limit (including the weight of the bike, rider, and luggage) of 110 kg.
Colors	Graphite Black

Geometries:

Frame size (cm)	XS	S	M	L	XL
Seat tube (mm)	450	480	500	520	530
Top tube (mm)	530	540	560	575	590
Steering bushing (mm)	115	130	155	185	215
Base length (mm)	435	435	435	435	435
Steering angle (°)	70	70	70	70	70
Seat tube angle (°)	73.5	73.5	73.5	73.5	73.5
Wheelbase (mm)	1020	1031	1052	1069	1086
Stack (mm)	535	549	572	600	629
Reach (mm)	372	378	391	397	404
Crank arms (mm)	165	165	172.5	172.5	175
Handlebar width (mm)	400	420	440	440	460
Stem (mm)	60	70	80	90	100
