  3. Gravel bike Wilier Triestina Adlar Shimano GRX 11V 700 mm Black Purple 2024
Gravel bike Wilier Triestina Adlar Shimano GRX 11V 700 mm Black Purple 2024
Gravel bike Wilier Triestina Adlar Shimano GRX 11V 700 mm Black Purple 2024
Gravel bike Wilier Triestina Adlar Shimano GRX 11V 700 mm Black Purple 2024
Gravel bike Wilier Triestina Adlar Shimano GRX 11V 700 mm Black Purple 2024
Gravel bike Wilier Triestina Adlar Shimano GRX 11V 700 mm Black Purple 2024
Gravel bike Wilier Triestina Adlar Shimano GRX 11V 700 mm Black Purple 2024
Gravel bike Wilier Triestina Adlar Shimano GRX 11V 700 mm Black Purple 2024
Gravel bike Wilier Triestina Adlar Shimano GRX 11V 700 mm Black Purple 2024
Gravel bike Wilier Triestina Adlar Shimano GRX 11V 700 mm Black Purple 2024
Wilier Triestina

Gravel bike Wilier Triestina Adlar Shimano GRX 11V 700 mm Black Purple 2024 Wilier Triestina

€2,499.99

RRP €3,600.00

€2,499.99

RRP €3,700.00

€2,499.99

RRP €3,700.00

Color :

Black

+ 1 Color

Frame size / rider height

Size Guide

Choose your option

S / 163-170 cm

Delivery from thursday

€2,499.99

M / 171-178 cm

Delivery from thursday

€2,499.99

L / 179-186 cm

Delivery from thursday

€2,499.99

€2,499.99

Sold by Alltricks

Delivery from thursday

Only 2 left in stock!

€2,499.99

Sold by Alltricks

Delivery from thursday

Last one in stock!

€2,499.99

Sold by Alltricks

Delivery from thursday

Only 2 left in stock!

Description

What size do you need?


Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride

Measure yourself accurately

To get started, measure your height and use the size chart available on each product description.

What to do if you are in between bike sizes?

If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.

Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
  • If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
  • On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.

Still confused? Contact us
Buying guide

Please note that specifications are subject to change without notice, based on component availability and other factors.

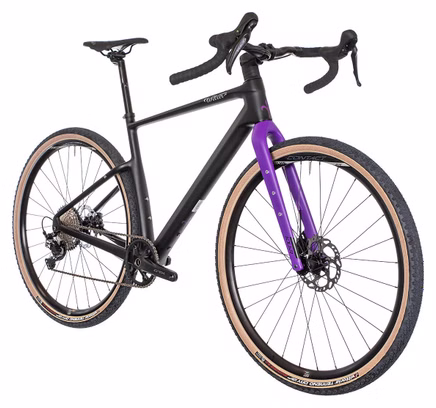

The Wilier Triestina Adlar is designed for bikepacking, exploring and touring. The carbon-fiber frame structure has been reinforced to such an extent that it allows a maximum additional load of 35 kg. Wilier engineers have added to this quality with new shapes, a careful study of geometries and a completely internal cable routing.

The Adlar frame weighs 1100 g and comes in five sizes (XS, S, M, L, XL). Its geometries are derived from mountain biking, which is why the horizontal development of the front triangle (reach) is rather pronounced. This solution makes it possible to adopt a shorter stem, which works in synergy with a relatively open steering angle (70°). This evolution gives greater maneuverability and control on the most demanding trails with the bike loaded.

Generous wheel arches accommodate any 52 mm wide gravel Tyre (52-622) as well as 29x2.00" MTB Tyres. The Frame has been designed to accommodate a Fork with particularly long forks. This configuration facilitates the installation of a suspension fork (maximum travel of 40 mm compatible with a 1" 1/4 - 1" 1/2 tapered headset) without changing the overall geometry of the frame. There's also a hole in the fork steerer tube for a dynamo hub /axle cable. The 27.2 mm seatpost can also be replaced by a telescopic seatpost.

Product highlights :

  • NHU-MOD monocoque carbon Frame and Fork.
  • Shimano GRX 1x11-speed transmission.
  • Shimano GRX hydraulic disc brakes, 160/160 mm.

Details :

Frame Carbon: Adlar - Carbon Monocoque NHU-MOD, Thru Axle 12x142 mm, Width tire maximum: 52 mm
Fork Carbon: Adlar - Carbon Monocoque NHU-MOD, Thru Axle 12x100 mm
Derailleur lever Shimano GRX ST-RX600, 1x11-speed

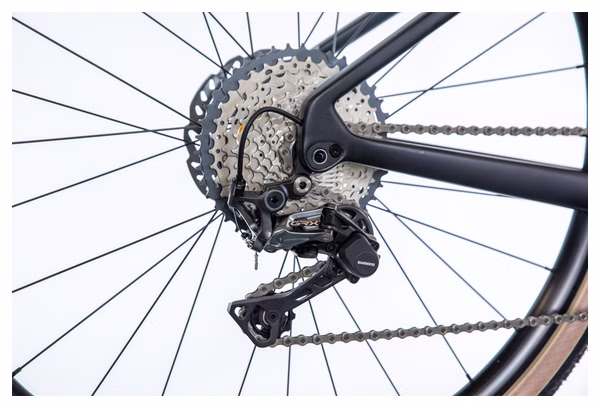

Rear derailleur Shimano GRX RD-RX812, 11-speed
Cassette Shimano Deore XT CS-M8000-11, 11-42 Teeth
Chain Shimano CN-HG601

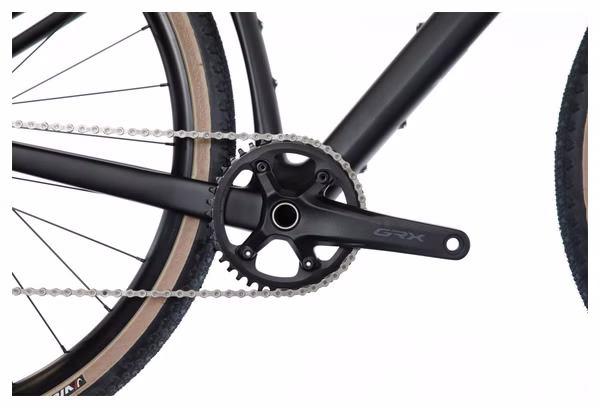

Crankset Shimano GRX FC-RX600-1, 40 Teeth
Bottom bracket Miche BB Pressfit 86.5x41

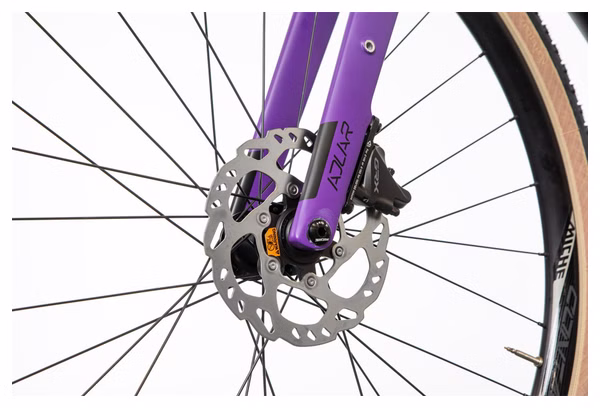

Brakes Shimano GRX BR-RX400, Hydr. Disc Brake, Shimano SM-RT70 Center Lock Rotors (160/160)
Wheels Miche Contact GR, 622-24C, 12x100/12x142 mm
Tyres Vittoria Terreno Dry, Tubeless Ready, 700x47C
Handlebars Ritchey Comp Corralitos
Stem Wilier Stemma S
Headset Wilier Custom Bearings Superslim + Ritchey Cartridge
Saddle Wilier Saddle Road, Titan Rail M 245x144 mm
Seatpost Ritchey Comp 2-Bolt Alu
Weight --- kg (Frame: 1190 g / Fork: 470 g)
Colors C8 - Black / Purple (Matt)
Reference E437YDW

Geometries :

Frame size XS S M L XL
Seat tube (mm) 380 410 440 470 510
Top tube (mm) 542 562 583 599 621
Base length (mm) 423 423 423 423 423
Steering bushing (mm) 79 104 130 155 181
Steering angle (°) 70 70 70 70 70
Seat tube angle (°) 75 74.5 74 74 73.5
Wheelbase (mm) 1030 1048 1065 1083 1101
Stack (mm) 538 562 586 610 634
Reach (mm) 395 404 413 422 431

MORE INFORMATION

See our comparison of the best Gravel Bikes.

See all our Gravel Bikes.

Features

Gender Men
Women
Wheel Size 700mm
Groupset Shimano GRX
