Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Please note that specifications are subject to change without notice, based on component availability and other factors. |
Lightweight for performance in competition or for covering the greatest possible distance on a wide variety of terrain.
COMFORTABLE, LIGHTWEIGHT AND HIGHLY RESPONSIVE
Built like all high-end BH frames, the brand uses Hollow Core Internal Molding (HCIM) technology, which allows us to keep the weight of the frame to a minimum, weighing in at just 1,050g in size M.

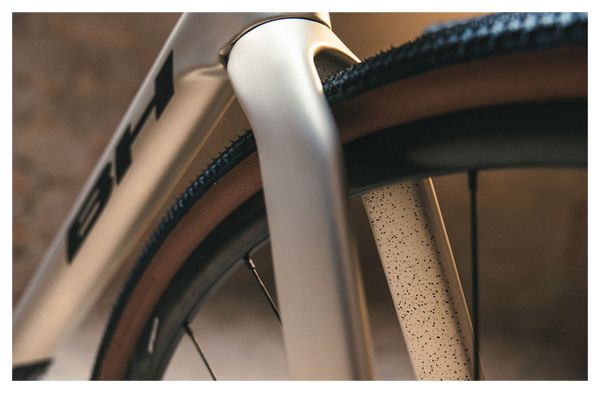

GRAVEL AIR BOW FORK
Equipped with the distinctive Air Bow fork, offering optimized clearance for mounting Tyres up to 45 mm.
SRS ANTI-VIBRATION SYSTEM
Developed to absorb ground vibrations, effectively combining comfort and performance without ever hindering pedaling.

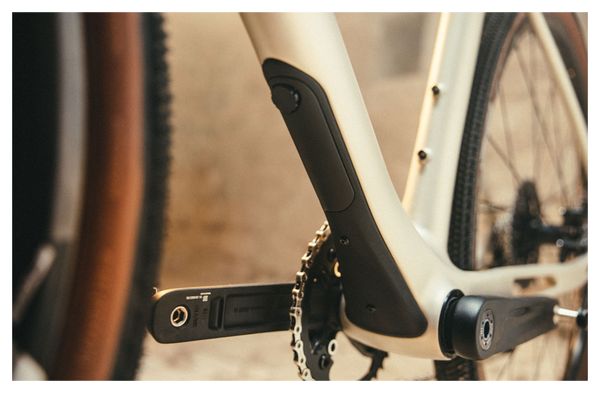

INTEGRATED TECHNICAL COMPARTMENT
At the bottom of the downtube is an integrated compartment for carrying a small bicycle pump or CO2 cartridge. It's easy to open and you can even add a folded inner tube.
Product highlights :
- Ultra-light carbon frame.
- Shimano GRX transmission, 1x12 speeds.
- Shimano GRX hydraulic disc brakes.
- Vision Team TC30 aluminum semi-aero wheels.
Details :
| Frame | Gravel X Carbon Monocoque |
| Fork | Gravel X Evo Carbon 1.5'' conical |
| Derailleur shifter | Shimano GRX hydra |
| Rear derailleur | Shimano GRX 12sp |
| Cassette | Shimano SLX 10/45 12v |
| Chain | Shimano 105 12v |
| Crankset | Shimano GRX Mono 40T |
| Bottom bracket | BB386, 86,5mm width, 46mm inner diameter |
| Brakes | Shimano GRX hydra, 160 mm |
| Wheels | Vision Team TC30, F: 12x100, R: 12x145 |
| Tyres | Hutchinson Touareg Tan 700x40 |
| Handlebars | BH Lite Gravel |
| Stem | BH SL |
| Headset | BH SL integrated sealed bearing |
| Saddle clamp | BH Gravel X |
| Saddle | BH Ergo G |
| Seat post | BH Lite Gravel |
| Colors | Red / Red / Red |
| Reference | LG303RRR |
Geometries :
| Frame size | S | M | L | XL |
| Seat tube (mm) | 500 | 520 | 540 | 560 |
| Top tube (mm) | 527,4 | 547,8 | 567 | 586,7 |
| Base length (mm) | 428 | 428 | 428 | 428 |
| Steering bushing (mm) | 120 | 140 | 160 | 180 |
| Steering angle (°) | 70,5º | 71º | 71,5º | 72º |
| Seat tube angle (°) | 73,75º | 73º | 72,75º | 72,5º |
| Satck (mm) | 540 | 558,8 | 579,7 | 598,6 |
| Reach (mm) | 370 | 377 | 387 | 398 |
MORE INFORMATION
See all our Gravel Bikes.
Features
| Gender |
Men Women |
| Wheel Size | 700mm |
| Groupset | Shimano GRX |
