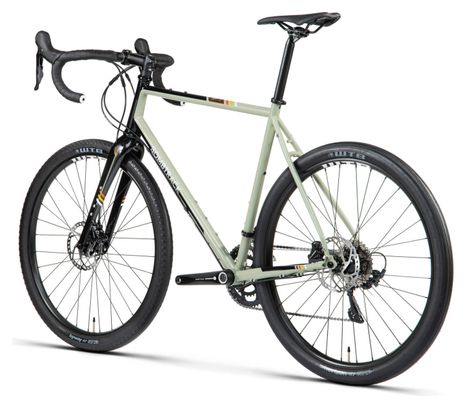

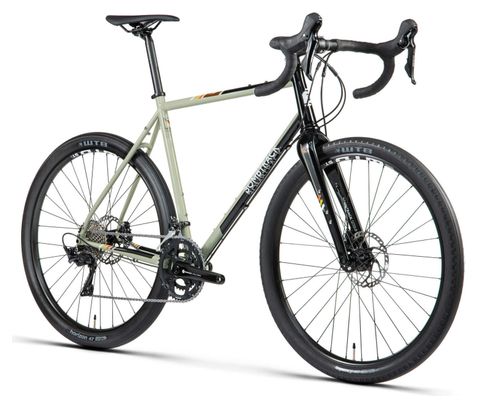

Gravel Bike Bombtrack Audax Shimano 105 11V 650b Vert Sage/Noir 2023
Gravel Bike Bombtrack Audax Shimano 105 11V 650b Vert Sage/Noir 2023
Gravel Bike Bombtrack Audax Shimano 105 11V 650b Vert Sage/Noir 2023
Gravel Bike Bombtrack Audax Shimano 105 11V 650b Vert Sage/Noir 2023
Gravel Bike Bombtrack Audax Shimano 105 11V 650b Vert Sage/Noir 2023
Gravel Bike Bombtrack Audax Shimano 105 11V 650b Vert Sage/Noir 2023
Gravel Bike Bombtrack Audax Shimano 105 11V 650b Vert Sage/Noir 2023
Gravel Bike Bombtrack Audax Shimano 105 11V 650b Vert Sage/Noir 2023
Gravel Bike Bombtrack Audax Shimano 105 11V 650b Vert Sage/Noir 2023
Gravel Bike Bombtrack Audax Shimano 105 11V 650b Vert Sage/Noir 2023
Bombtrack

Gravel Bike Bombtrack Audax Shimano 105 11V 650b Vert Sage/Noir 2023 Bombtrack

€1,562.49

€1,999.99

RRP €3,249.00

Frame size / rider height

Size Guide

Choose your option

XS / 150-160 cm

Out of stock

S / 160-171 cm

Out of stock

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

similar products

Description

What size do you need?


Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride

Measure yourself accurately

To get started, measure your height and use the size chart available on each product description.

What to do if you are in between bike sizes?

If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.

Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
  • If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
  • On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.

Still confused? Contact us
Buying guide

Please note that specifications are subject to change without notice, based on component availability and other factors.

A slim steel frame, a lightweight carbon fork, all the bindings you could wish for and a reliable Shimano 11-speed groupset.
The Bombtrack Audax is the ideal companion for all kinds of adventures. With Shimano hydraulic disc brakes and 650b WTB wheels, it offers a bold ride over long distances.
Mixing WTB Horizon and Byway tires, it rolls fast, yet is efficient on a wide range of surfaces.
The integrated rear light bracket brings discipline into the modern era.
Complete with a Ritchey finishing kit, it's happy to go as fast or as far as you dare to push it.

Product benefits:

  • The ideal companion for all kinds of adventures.
  • Shimano 105 2x11-speed transmission, with Ultegra RX800 rear derailleur.
  • Shimano 105 hydraulic disc brakes, 160/160 mm.
  • Max. tire clearance: frame: 650b x 47c / 700c x 35c; fork: 650b x 50c / 700c x 35c.

Details :

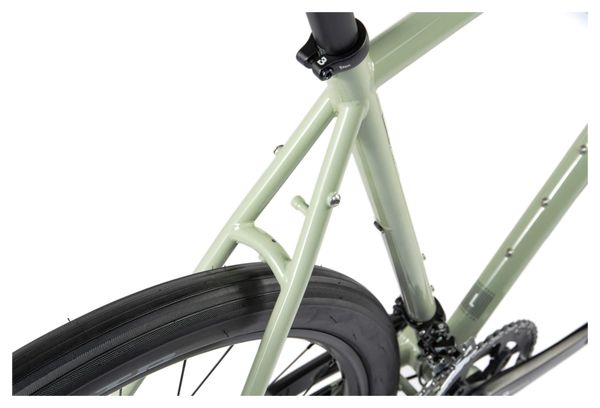

Frame Cromo steel: Columbus Cromor double butted, TA, rack / fender mounts, internal light cable routing, rear light mount, 86.5 mm T47 BB shell, 650b x 47c / 700c x 35c Frame Max Tire Clearance
Fork Carbon: Full carbon, TA, 1.1/2'' - 1.1/8'', with fender / cage mounts
Derailleur lever Shimano 105 ST-R7020, STI, 2x11-speed
Front derailleur Shimano 105 FD-R7000

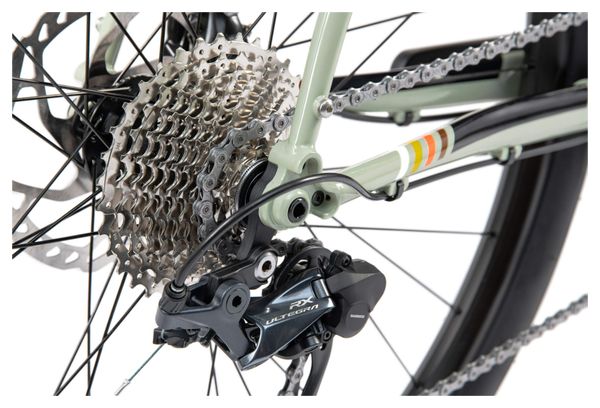

Rear derailleur Shimano Ultegra RX RD-RX800-GS, clutch, medium cage, 11-speed
Cassette Shimano 105 CS-R7000, 11-34 Teeth
Chain KMC X11 EPT Anti Rust chain, 1/2'' x 11/128'', 114L

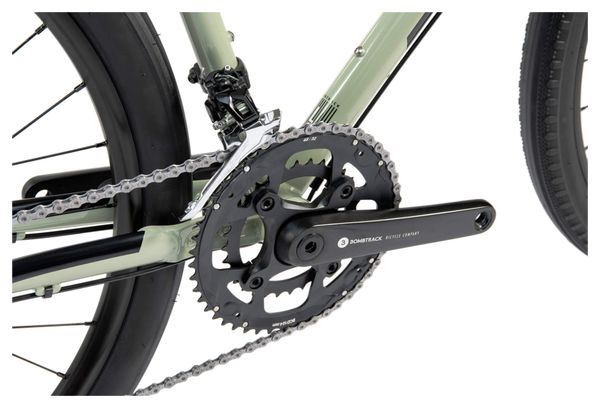

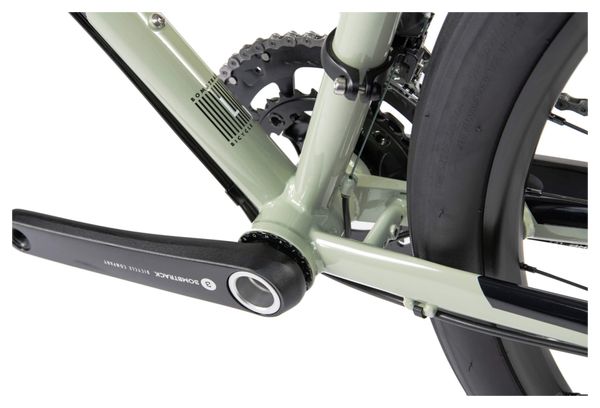

Crankset Bombtrack Lyer forged aluminium crank, direct mount interface (Sram compatible), 30 mm spindle
Chainring Aluminium, subcompact, direct mount spider, 48/32 Teeth
Bottom bracket Bombtrack T47 internal sealed BB for 30 mm spindle

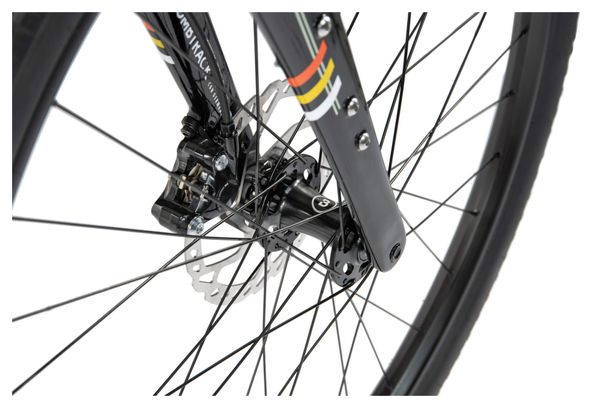

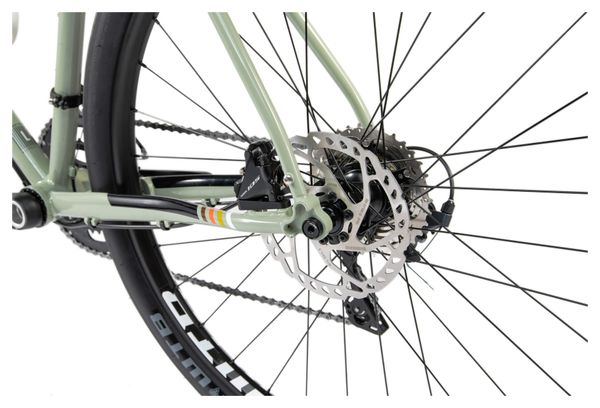

Brakes Shimano 105 BR-R7070, Hydr. Disc Brake, 160/160 mm, Flat Mount
Wheels WTB ST i25 double wall, TCS 2.0, 32h
Hubs Front Bombtrack Tau sealed disc hub, 12 x 100 mm thru-axle / Rear: Bombtrack Tau sealed disc hub, 11-speed, 12 x 142 mm thru-axle
Tires Front: WTB ByWay, TCS, tubeless ready, 650b x 47c / Rear: WTB Horizon, TCS, tubeless ready, 650b x 47c

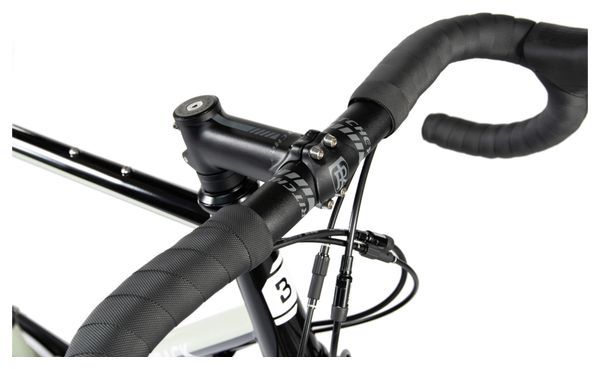

Handlebars Ritchey Comp Streem III drop bar, 31.8 mm, 5° backsweep, 10° flare, 75 mm reach, 116 mm drop
Handlebar tape Bombtrack Command
Stem Ritchey Comp, 4-Axis 44 forged aluminium, -6°, -6° backsweep
Headset Sealed external aheadset, 1.1/2'' - 1.1/8'', EC34 / 28.6 | EC44 / 40 (S.H.I.S.)
Saddle Bombtrack Dart
Seat post Ritchey Comp, 2-Bolt, aluminum, 27.2 x 400 mm
Saddle clamp Bombtrack Origin, forged aluminium seat clamp, 29.8 mm
Total weight 10.8 kg (size M)
Maximum weight 120 kg: maximum system weight includes bike, rider and load (carrier or trailer)
Colors Glossy Sage Green

Geometries :

Frame size XS S M L XL
Seat tube (mm) 470 490 520 550 580
Top tube (mm) 504 519 544 566 593
Base length (mm) 420 420 420 420 420
Steering bushing (mm) 105 125 145 170 195
Steering angle (°) 71.5 71.5 72 72 72
Seat tube angle (°) 74.5 74.5 74 74 73.5
Wheelbase (mm) 987 1005 1018 1037 1055
Stack (mm) 534 553 574 590 609
Reach (mm) 361 373 384 396 408
Handlebar width (mm) 400 420 420 440 440
Stem length (mm) 80 80 90 100 100
Crank length (mm) 165 170 170 175 175

MORE INFORMATION

See all our Gravel Bikes.

Features

Manufacturer Weight (g) 10800
Gender Men
Women
Wheel Size 27.5''
Groupset Shimano 105
