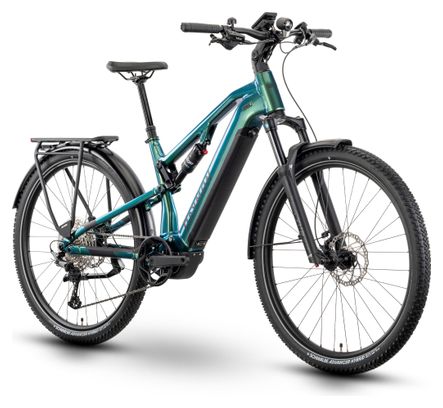

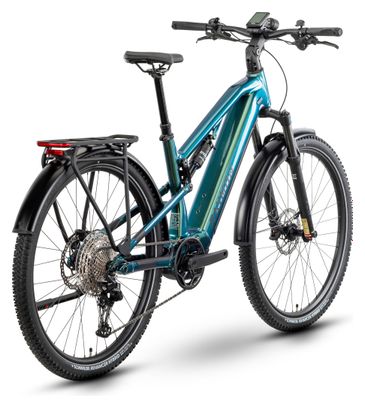

Raymon CrossRay Pro Full-suspension Electric Trekking Bike Shimano Deore 12S 800Wh 29'' Green Raymon
€3,087.99
RRP €4,799.00
Including 12.94€ eco-participation
similar products
€1,799.99
Sold by Alltricks
€2,999.99
Sold by Alltricks
Bestseller
Bicyklet
3.7/5(15)
Bicyklet Joseph Electric Hybrid Bike Shimano Altus 7S 417 Wh 700 mm Blue
3.7/5(15)
Bicyklet Joseph Electric Hybrid Bike Shimano Altus 7S 417 Wh 700 mm Blue
€799.99
Sold by Alltricks
€2,749.00
Sold by Alltricks
Bicyklet
3.7/5(15)
Hybride Bikes Joseph Shimano Altus 7V 417 Wh 700 mm Black Grey
3.7/5(15)
Hybride Bikes Joseph Shimano Altus 7V 417 Wh 700 mm Black Grey
€799.99
Sold by Alltricks
New in
€1,349.00
Sold by Alltricks
New in
€1,349.00
Sold by Alltricks
€2,799.99
Sold by Alltricks
New in
€3,799.00
Sold by Alltricks
Outlet
€2,648.99
Sold by Alltricks
€3,199.99
Sold by Alltricks
Save with our perfect combination
Save up to with our perfect combination
Our perfect combination
Add the pack
Your item
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Please note that specifications are subject to change without notice, based on component availability and other factors. |
Globe-trotter. Flexible. Adventurous. The Raymon CrossRay electric bike is ideal for exploring new terrain. It combines the advantages of several categories and has an impressive mix of moderately sporty geometry and comfortable specifications. Your panniers and groceries can be transported easily and conveniently thanks to its luggage rack.
Main features:
- 6061 aluminium frame with integrated battery (removable).
- Yamaha PW-X3 System motor, 250W, 85Nm, 25km/h.
- 36V, 800Wh battery.
- Full-suspension VTC.
Features:
| Frame | Aluminium: 29’, Alloy 6061, Detachable Battery, Boost, 120 mm |
| Fork | SR Suntour XCR34X Boost 2CR, air, 120 mm, tapered |
| Shock | SR Suntour EdgeX R, air, 210x47.5 mm |
| Motor | Yamaha PW-X3, 250 W, 85 Nm |
| Battery | 800 Wh, 36 V |
| Display | Yamaha B, LCD, micro-USB |
| Shifter | Shimano Deore, SL-M6100, Rapidfire Plus, 1x12 speed |
| Rear derailleur | Shimano Deore, RD-M6100, Shadow Plus, 12 speed |
| Cassette | Shimano CS-M6100, 10-51T |
| Chain | Shimano CN-M6100 |
| Crankset | Raymon FC40, forged alloy, ISIS, Raymon, Narrow Wide, 40T |
| Brakes | Tektro Volans, 4 pistons, Hydraulic disc brake, Tektro TR17 180/180mm discs |
| Wheelset | Raymon VR24/DT210, 15x110/12x148 mm, MS freehub |
| Tires | Schwalbe Advancer Hybrid, Reflex, 60-622, 29x2.35‘’ |
| Handlebars | Raymon Riser 31,8 mm, Sweep: 9 °, Rise: 15 mm |
| Handles | Raymon Ergo, lock on |
| Stem | Raymon 31.8, Ahead, adjustable |
| Saddle | Raymon MIMA VM fit |
| Seatpost | Raymon, 34.9 mm |
| Accessories | Lights: Litemove HKSE-70, Spanninga Glow / Mudguard: Curana Apollo / Luggage rack: Raymon, MIK, 25 kg / Stand: Ursus MOOIKSA40, adjustable |
| Weight | 29.1 kg |
| Colors | green |
Geometries :
| Frame size | S | M | L |
| Seat tube (mm) | 450 | 500 | 550 |
| Top Tube (mm) | 605 | 610 | 615 |
| Head tube (mm) | 140 | 140 | 150 |
| Chainstay (mm) | 460 | 460 | 460 |
| Head tube angle (°) | 69 | 70 | 70 |
| Seat tube angle (°) | 73 | 73 | 73 |
| Wheelbase (mm) | 1134 | 1128 | 1133 |
| Stack (mm) | 621 | 626 | 635 |
| Reach (mm) | 415 | 419 | 421 |
MORE INFORMATION
Features
| Gender |
Men Women |
| Wheel Size | 29'' |
| Groupset | Shimano Deore |
