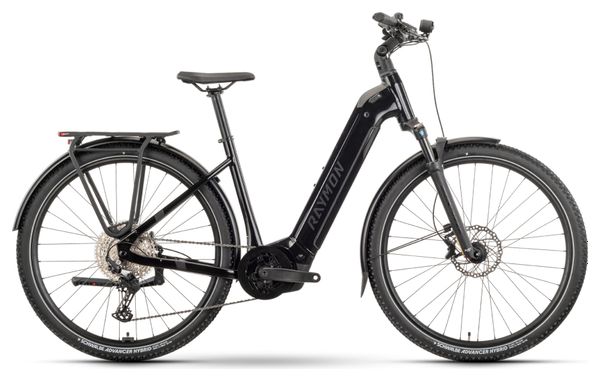

  3. Raymon Tahona Pro Wave Shimano Deore 12S 800Wh 29'' Black 2025
Raymon Tahona Pro Wave Shimano Deore 12S 800Wh 29'' Black 2025
Raymon

Raymon Tahona Pro Wave Shimano Deore 12S 800Wh 29'' Black 2025 Raymon

€3,599.99

RRP €4,499.00

Including 12.94€ eco-participation

€3,599.99

RRP €4,499.00

Including 12.94€ eco-participation

Frame size / rider height

Size Guide

Choose your option

S / 155-165 cm

Delivery from 03h

€3,599.99

M / 165-175 cm

Delivery from 03h

€3,599.99

€3,599.99

Sold by Alltricks

€3,599.99

Sold by Alltricks

Description

What size do you need?


Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride

Measure yourself accurately

To get started, measure your height and use the size chart available on each product description.

What to do if you are in between bike sizes?

If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.

Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
  • If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
  • On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.

Still confused? Contact us

Please note that specifications are subject to change without notice, based on component availability and other factors.

Globe-trotter. Flexible. Adventurous. The Raymon Tahona Pro electric bike is ideal for exploring new terrain. It combines the advantages of several categories and has an impressive mix of moderately sporty geometry and comfortable specifications. Your panniers and groceries can be transported easily and conveniently thanks to its luggage rack.

Main features:

  • 6061 aluminum frame with battery on the down tube.
  • Shimano Deore Transmission, 1x12 speeds.
  • Hydraulic disc brakes Tektro Volans.

Features:

Frame Aluminium : 29’, Alloy 6061, removeable battery, boost
Fork SR Suntour MOBIE34 D-Boost LO, air, 80 mm, tapered
Motor Bosch Performance Line CX, 250/600 W, 85 Nm
Battery Bosch PowerTube, 800 Wh, 36 V
Display Bosch Kiox 300 / Bosch LED Remote, Bluetooth
Shift lever Shimano Deore, 1x12 speed
Rear derailleur Shimano Deore, RD-M6100, Shadow Plus, 12 speed
Cassette Shimano CS-M6100, 10-51T
Chain Shimano CN-M6100
Crankset Raymon FC02, forged alloy, BIS, Raymon chainring, Narrow Wide, 40T
Brakes Tektro Volans, 4 pistons, Hydraulic disc brake, Tektro TR17 180/180 mm discs
Wheels Raymon VR24, DT210 hubs 15x110/12x148 mm, MS freehub
Tires Schwalbe Advancer Hybrid, Reflex 57-622, 29x2.25‘’
Handlebar Raymon Riser 31,8 mm, Sweep: 15 °, Rise: 30 mm
Grips Raymon Ergo, Screw-on grips
Stem Raymon 31.8, Ahead, adjustable
Saddle Raymon MIMA VM fit
Seatpost Raymon, 34.6 mm, Patent
Accessories Lighting: Litemove HKSE-70, 70 lx, Spanninga Glow / Mudguard: Curana Apollo / Luggage rack: Raymon, MIK HD, 27 kg / Ursus MOOI stand, KSA40, adjustable
Weight 28.1 kg
Colors Black Stealth

Geometries :

Frame size (cm) S M L
Seat tube (mm) 450 500 550
Top Tube (mm) 650 655 660
Steering angle (°) 69.5 69.5 69.5
Seat tube angle (°) 74 74 74
Base length (mm) 460 460 460
Steering sleeve (mm) 160 160 170
Wheelbase (mm) 1192 1197 1203
Stack (mm) 642 642 652
Reach (mm) 466 471 473

MORE INFORMATION

Features

Gender Men
Women
Wheel Size 29''
Groupset Shimano Deore
