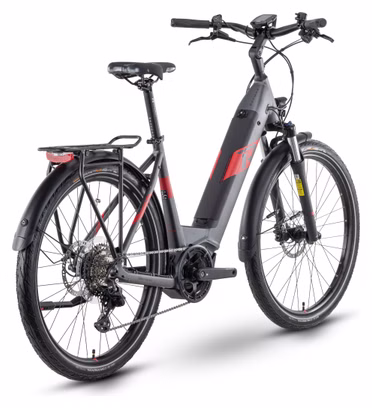

Raymon TourRay E 6.0 Wave Tektro M350 9S 630Wh 27.5'' Grey 2024 Raymon
€2,199.99
RRP €3,499.00
Including 12.94€ eco-participation
€2,199.99
RRP €3,499.00
Including 12.94€ eco-participation
€2,199.99
RRP €3,499.00
Including 12.94€ eco-participation
similar products
€1,799.99
Sold by Alltricks
€3,036.99
Sold by Alltricks
Bestseller
€2,499.99
Sold by Alltricks
Bestseller
Bicyklet
3.7/5(15)
Bicyklet Joseph Electric Hybrid Bike Shimano Altus 7S 417 Wh 700 mm Blue
3.7/5(15)
Bicyklet Joseph Electric Hybrid Bike Shimano Altus 7S 417 Wh 700 mm Blue
€799.99
Sold by Alltricks
Bicyklet
3.7/5(15)
Hybride Bikes Joseph Shimano Altus 7V 417 Wh 700 mm Black Grey
3.7/5(15)
Hybride Bikes Joseph Shimano Altus 7V 417 Wh 700 mm Black Grey
€799.99
Sold by Alltricks
New in
€1,349.00
Sold by Alltricks
New in
€1,349.00
Sold by Alltricks
Outlet
€2,999.99
Sold by Alltricks
€2,999.99
Sold by Alltricks
Outlet
€2,399.99
Sold by Alltricks
Outlet
Refurbished
€2,899.99
-27%
Sold by Alltricks
Save with our perfect combination
Save up to with our perfect combination
Our perfect combination
Add the pack
Your item
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Please note that specifications are subject to change without notice, based on component availability and other factors. |
Globe-trotter. Flexible. Adventurous. The Raymon TourRay E 6.0 electric mountain bike is ideal for exploring new terrain. It combines the advantages of various categories and has an impressive mix of moderately sporty geometry and comfortable specifications. Your panniers and groceries can be transported simply and practically with its luggage rack.
Product Highlights:
- 6061 aluminum frame with battery on the down tube.
- Transmission Tektro M350, 1x9 Speeds.
- Hydraulic disc brakes Tektro HD-T280.
Details :
| Frame | Aluminum: 27.5", alloy 6061, Integrated battery |
| Fork | SR Suntour Mobie-A32 NLO, Spring, 75 mm, tapered |
| Motor | Yamaha PW-ST, 250 W, 70 Nm |
| Battery | Simplo 630 Wh, 36 V |
| Display | Yamaha Display A, LCD-Display |
| Shift lever | Tektro SL-M350R, 1x9-speed |
| Rear derailleur | Tektro RD-M350, 9-speed |
| Sprocket set | Tektro CS-M350, 11-46T |
| Chain | KMC e9S |
| Crankset | Raymon EC40, Forged aluminium, JIS, Raymon chainring, 44T |
| Brakes | Tektro HD-T280, 2 pistons, Hydraulic disc brake, Tektro TR24 180/180mm discs |
| Tires | Continental CONTACT Plus City, 55-584, 27.5x2.2'' |
| Handlebar | Raymon Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm |
| Grips | R Raymon Ergo, Screw-on grips |
| Stem | R Raymon 31.8, Ahead, adjustable |
| Pedals | R Raymon, aluminum |
| Saddle | R Raymon Ergo |
| Seatpost | R Raymon, 31.6 mm, 350 mm, Patent |
| Accessories | Herrmans MR4, 120 lm, Position light / AXA Blueline E, Position light / R Raymon Tour, MIK, 25 kg belastbar / Eurofender Tempo / Ursus MOOI, stand KSA40, adjustable |
| Weight | 27.4 kg |
| Colors | Anthracite Metallic / Red / Black |
Geometries :
| Frame size (cm) | S | M | L |
| Saddle tube (mm) | 480 | 520 | 560 |
| Top tube (mm) | 650 | 655 | 660 |
| Steering Angle (°) | 69.5 | 69.5 | 69.5 |
| Saddle tube angle (°) | 74 | 74 | 74 |
| Base Length (mm) | 460 | 460 | 460 |
| Steering Sleeve (mm) | 160 | 160 | 170 |
| Wheelbase (mm) | 1192 | 1197 | 1201 |
| Stack (mm) | 642 | 642 | 652 |
| Reach (mm) | 465 | 469 | 471 |
MORE INFORMATION
Features
| Gender |
Men Women |
| Wheel Size | 27.5'' |
| Groupset | Tektro M350 |
