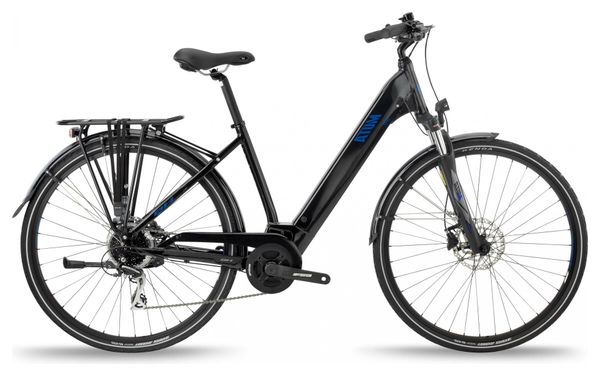

BH Atom City Wave Shimano Acera 8S 500 Wh 700 mm 2021 Electric City Bike Black

They love it!

★★★★★
★★★★★
21 Reviews
BH
★★★★★
★★★★★
- 21 Reviews

BH Atom City Wave Shimano Acera 8S 500 Wh 700 mm 2021 Electric City Bike Black BH

€1,990.00

Including 12.94€ eco-participation

€2,049.90

Frame size / rider height

Size Guide

Choose your option

M / 165-177 cm

Out of stock

L / 175-189 cm

Out of stock

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

similar products

Description

What size do you need?


Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride

Measure yourself accurately

To get started, measure your height and use the size chart available on each product description.

What to do if you are in between bike sizes?

If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.

Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
  • If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
  • On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.

Still confused? Contact us
Buying guide

Please note that specifications are subject to change without notice, based on component availability and other factors.

The BH Atom City Wave electric bike is the ideal bike if you are looking for an electric bike with a built-in battery, the geometry of classic bikes and a long battery life.

BH's Atom range includes the Turn & Slide 'TS System', patented by BH, with easy and minimalist battery integration in the top of the down tube, which maintains the design and aesthetics of a conventional frame.

The relative position of the heavier parts of the system (drive unit and battery) provides a low centre of gravity, guaranteeing a responsive and stable bike, without having to sacrifice its geometry. The Full Suspension range incorporates the Split Pivot system which allows the three forces exerted on a bicycle to operate independently: pedalling, braking and suspension.

Product highlights:

  • Aluminium frame with integrated battery.
  • 1 x 8-Speed Shimano Acera Transmission.
  • Shimano MT200 hydraulic disc brakes, 180/180 mm.

Details:

Frame Aluminium: City Wave Alloy 28" Internal Cable Routing
Fork SR Suntour NEX DS 63 mm
Drive unit BH 1E-36V
Battery 500 Wh
Display BH X Display Lite
Derailleur gear lever 1 x 8-Speed, Shimano Acera
Rear derailleur 8-Speed, Shimano Acera
Cassette 11-32 Teeth, Shimano HG31
Chain Shimano HG40
Crankset FSA, 38 Teeth, 170 mm
Brakes Shimano MT200, Hydr. Disc Brake, (180/180)
Wheels Alloy Double Wall
Tyres Kenda K1129 700 x 45 C
Handlebar BH City Alloy 640 mm
Grips BH Ergonomic
Stem BH Traditional
Headset Semi-Integrated 1 1/8"
Pedals Antislip
Saddle Royal Freeway Gel Saddle
Seatpost Alloy 31.6
Seat post clamp Alloy
Accessories Front light: B&M Upp 30 Lux. Rear light: B&M Toplight/
Luggage rack: Racktime
Weight ---

Dimensions:

Frame size M L
Seatpost tube (mm) 480 540
Top tube (mm) 599 629
Base length (mm) 460 460
Head tube (mm) 170 180
Steering angle (°) 70 70
Seatpost angle (°) 75 74.9
Wheelbase (mm) 685 715
Stack (mm) 665 674
Reach (mm) 421 448

MORE INFORMATION

Features

Gender Men
Women
Wheel Size 700mm
Groupset Shimano Acera
