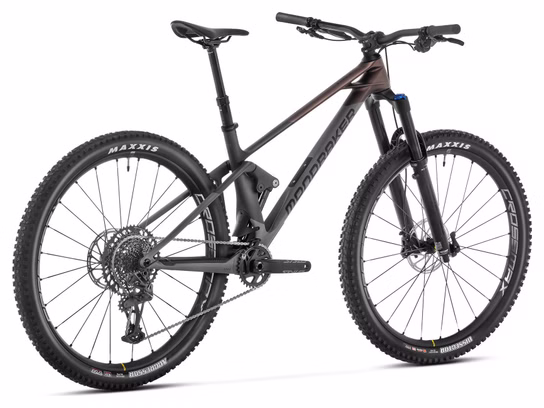

Mondraker Raze Carbon R All-Suspension Mountain Bike Sram GX/NX Eagle 12V 29'' Gris 2024 Mondraker
€4,499.99
RRP €5,999.00
€4,499.99
RRP €5,999.00
€4,499.99
RRP €5,999.00
€4,499.99
RRP €5,999.00
Save with our perfect combination
Save up to with our perfect combination
Our perfect combination
Add the pack
Your item
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Please note that specifications are subject to change without notice, based on component availability and other factors. |
The Mondraker Raze Carbon R is the ideal bike if you're looking for an aggressive trail bike that lets you pedal in comfort. With its great climbing qualities, you'll be able to climb as high as your legs allow. There's no doubt about its efficiency. But best of all, when it comes to tackling a descent, its response is excellent. Its absorption, lightness and rigidity make it the best all-round bike. Mondraker's Stealth Air Full Carbon, Zero Suspension System, Forward Geometry and Mind technologies are, of course, also present on the Raze Carbon R. With 150 mm of travel at the front and 130 mm at the rear, you'll be amazed by its versatility and the fun it offers.
Product highlights :
- Stealth Air full carbon frame with 130 mm of travel.
- Sram GX/NX Eagle 1x12-speed transmission.
- Sram G2 R hydraulic disc brakes, 180/180 mm.
Details :
| Frame | Raze 29 Stealth Air Full Carbon, Zero Suspension System, 130 mm caster, Forward Geometry, Monobloc carbon top link, Boost 12x148 mm rear axle, tapered head tube, 73 mm BSA bottom bracket, specific design for single-plate drivetrain, HHG internal cable routing, MAX Enduro sealed bearings, shock mudguards, ISCG 05, custom frame protectors. |
| Forks | Fox 36 29 Float GRIP EVOL Performance, 150 mm, tapered fork steerer, Boost 15x110 m axle, 44 mm offset. Adjustments: 3 positions with micro-adjustable compression, low-speed rebound, pneumatic preload |
| Shock absorber | Fox Float EVOL Performance, 205x57.5 mm. Settings: 2-position compression adjustment (open/close), rebound, pneumatic preload. Trunnion top mount, 30x8 mm lower bushings |
| Derailleur lever | Sram Trigger NX Eagle, X-Actuation 1:1, 1x12-speed |
| Rear derailleur | SRAM GX Eagle, Roller bearing clutch Type 3, cage lock, 1x12s, X-Actuation 1:1 |
| Cassette | Sram XG-1275, 10-52 Teeth |
| Chain | Sram NX Eagle, Powerlock |
| Crankset | 32T, CNC-machined alloy, X-SYNC 2 / Truvativ Stylo 7k Eagle, Boost, DUB axle, direct-fit chainring, size S: 170 mm size M: 170 mm size L: 175 mm size XL: 175 mm, CL 52 |
| Bottom bracket | Sram DUB BSA, sealed bearings, 73 mm |
| Brakes | Sram G2 R, Hydr. Disc Brake, 4-piston caliper, Centerline 180/180 mm IS 6 bolts one-piece rotors |
| Wheels | Mavic CrossMax XL S, 29 Boost 30 mm internal width, hookless, tubeless compatible, 24 spokes |
| Hubs | Front: Infinity hub, Boost 15x110 mm, IS 6 bolts / Rear: Infinity hub, ID360 freewheel technology, Boost 12x148 mm, IS 6 bolts |
| Tires | Front: Maxxis Maxxis Dissector, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, 29x2.4" WT / Rear: Maxxis Aggressor, tubeless ready, dual compound, Exo protection, 60TPI, folding bead, 29x2.3" |
| Handlebars | ONOFF Sulfur 1.0 double-reinforced 6061 alloy, curve: 20 mm, width: 800 mm, bend 9º, rise 5º, bore 31.8 mm |
| Handles | Onoff Desert, 1lock-on, 135 mm |
| Stem | Onoff Sulfur FG 30 mm, 0º, 6061 forged alloy, 31.8 mm barbore |
| Headset | Acros custom for 1-1/2" headset, angular contact bearings 40x52x7, internal cable routing |
| Saddle | Fizik Vento Argo X5 |
| Seat post | ONOFF Pija dropper internal, diameter 31.6 mm, 1X remote lever with bearing, size S: 405x95-125 mm, size M: 458x120-150 mm, size L: 498x140-170 mm, size XL: 558x170-200 mm |
| Weight | 13.6 kg |
Geometries :
| Frame size | S | M | L | XL |
| Wheel size (inches) | 29 | 29 | 29 | 29 |
| Seat tube (mm) | 375 | 415 | 445 | 500 |
| Top tube (mm) | 595 | 620 | 645 | 670 |
| Base length (mm) | 435 | 435 | 435 | 435 |
| Steering bushing (mm) | 90 | 100 | 115 | 130 |
| Steering angle (°) | 65.5 | 65.5 | 65.5 | 65.5 |
| Seat tube angle (°) | 71 | 71 | 71 | 71 |
| Wheelbase (mm) | 1193 | 1217 | 1243 | 1269 |
| Stack (mm) | 608 | 617 | 631 | 645 |
| Reach (mm) | 455 | 475 | 495 | 515 |
MORE INFORMATION
See our best MTBs.
Discover the whole All-Mountain *MTB's range
Features
| Frame material | Carbon |
| Groupset | Sram GX/NX Eagle |
