Haibike AllMtn 10 Electric Full-Suspension MTB Shimano XT 12S 720Wh 29/27.5'' Blue Grey 2024
Haibike
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
Note : Please note that specifications are subject to change without notice, based on component availability and other factors.
Our Haibike AllMtn 10 offers uncompromising electric performance on the trail: compact and powerful, the Yamaha PW-X3 motor provides optimal support, and its 720 Wh battery ensures you have enough range for even longer rides.
The 29"/27.5" wheel diameters provide both optimal traction on hills and smoothness on descents.
With the 160mm travel Fox 38 Factory Kashima suspension fork, a Shimano XT transmission, and Shimano XT 4-piston disc brakes, you're well equipped for any adventure.
You're sure to master jumps or challenging courses with safety and confidence.
Product Highlights:
- 6061 aluminum frame with 160mm of travel.
- Yamaha motor, PW-X3, 250 W, 85 Nm.
- Integrated 720 Wh battery.
- Transmission Shimano XT 1x12 speeds.
- Shimano XT 4-piston hydraulic disc brakes, 203/203 mm.
- Fox Factory Kashima suspension.
- Mavic E-Deemax wheels.
Details:
| Frame | Aluminum: Haibike, AllMtn PW-X3, Aluminum |
| Fork | FOX 38 Factory Kashima, air, travel: 160mm |

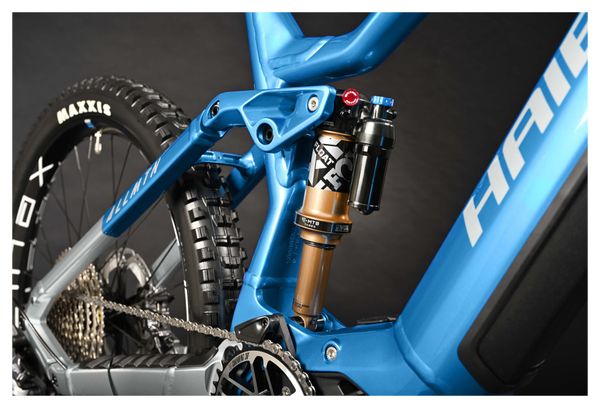

| Shock absorber | FOX Float X Factory EVOL LV, air |

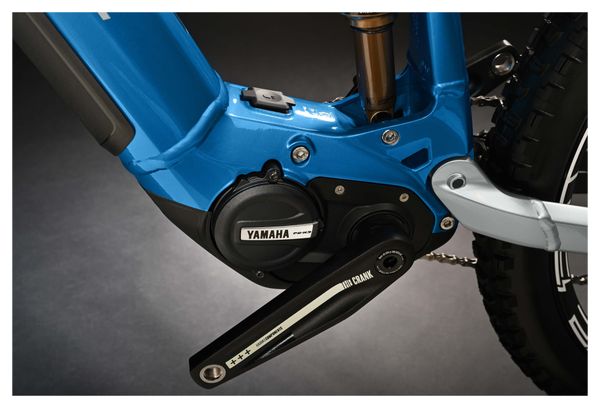

| Engine | Yamaha, PW-X3, 250 W, 85 Nm |
| Battery | InTube, 720 Wh (removalbe) |

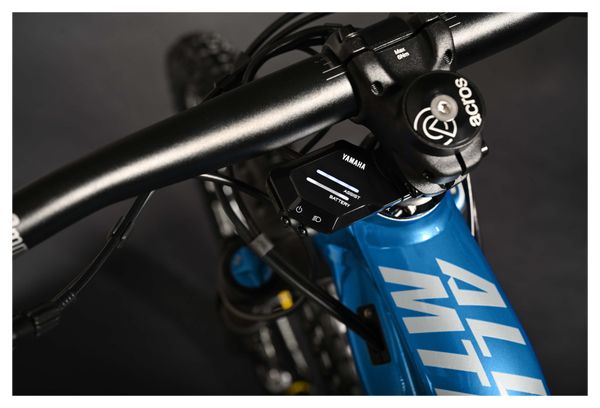

| Screen | Yamaha, Interface - X |

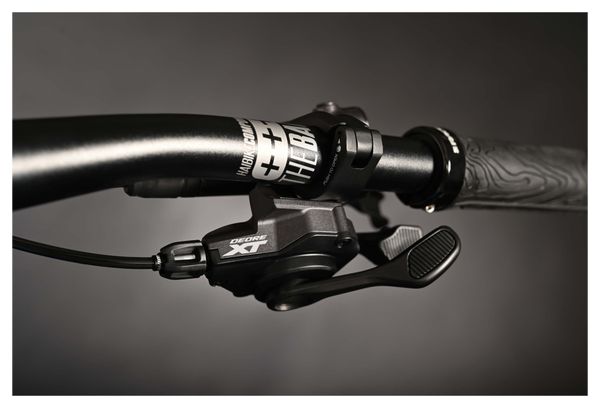

| Shift lever | Shimano Deore XT M8100, 1x12-Speed |
| Rear Derailleur | Shimano SLX M8100, 12-Speed |
| Cassette | Shimano M6100, 10-51T |
| Chain | Shimano |
| Crankset | Haibike Components, The Crank ++, Aluminium, Sram Chainring, 38 Teeth |
| Brakes | Shimano XT M8120, RT86 203/203 mm |
| Wheelset | Front: Mavic E-Deemax 29 / Rear: Mavic E-Deemax 27.5 MS freehub |
| Tires | Front: Maxxis, Minion DHF II, 63-622, 29 x 2.5" / Rear: Maxxis, Minion DHR II, 66-584, 27.5 x 2.6 |
| Handlebars | Haibike Components, TheBar +++, 780 mm |
| Stem | Haibike Components, TheStem +++, 31.8 mm |
| Pedals | Freeridepedal, Aluminium, with Reflector |
| Saddle | fi'zi:k Terra Aidon X5-160 |
| Seatpost | Haibike Components, Dropper-Post Remote 34.9, Aluminium |
| Total Weight | --- |
| Maximum weight | 150 kg: maximum system weight includes bike, rider and load (carrier or trailer) |
Geometries :
| Frame size | S | M | L | XL |
| Seat tube (mm) | 410 | 440 | 470 | 500 |
| Top tube (mm) | 570 | 600 | 627 | 659 |
| Base length (mm) | 460 | 460 | 460 | 460 |
| Steering sleeve (mm) | 120 | 120 | 130 | 140 |
| Steering angle (°) | 64.5 | 64.5 | 64.5 | 64.5 |
| Seat tube angle (°) | 77 | 77 | 77 | 76.9 |
| Wheelbase (mm) | 1220 | 1250 | 1279 | 1313 |
| Stack (mm) | 646 | 646 | 655 | 664 |
| Reach (mm) | 421 | 451 | 475 | 505 |
MORE INFORMATION
See the whole range of E-Bikes available.
| 1 Bicycle bought = 1 Tree planted. Alltricks is committed to the planet. Read more |
Features
| Gender |
Men Women |
| Fork Travel | 160 |
| Shock Travel | 160 |
| Frame material | Alloy |
| Groupset | Shimano SLX 12V |
| Year | 2024 |
| Pratique | All Mountain |
