Orbea Oiz M10 Full Suspension MTB Shimano XT 12S 29'' Silver Grey Blue Carbon View 2024 Orbea

Name: Orbea Oiz M10 Full Suspension MTB Shimano XT 12S 29'' Silver Grey Blue Carbon View 2024
Brand: Orbea
SKU: 2653497

€3,592.99

RRP €4,845.99

€4,845.99

Frame size / rider height

Size Guide

Choose your option

S / 155-170 cm

Out of stock

M / 165-180 cm

Out of stock

L / 178-190 cm

Out of stock

XL / 185-198 cm

Out of stock

Non available

We will contact you by e-mail when this item is back in stock.

I also want to receive other offers by e-mail

Non available

We will contact you by e-mail when this item is back in stock.

I also want to receive other offers by e-mail

Non available

We will contact you by e-mail when this item is back in stock.

I also want to receive other offers by e-mail

Non available

We will contact you by e-mail when this item is back in stock.

I also want to receive other offers by e-mail

Description

Buying guide


	Please note that specifications are subject to change without notice, based on component availability and other factors.

Take control. Don't accept compromises. The Orbea Oiz isn't down-country or trail; this is a 120 mm XC race machine that looks as good as it rides. Modern geometry and clever suspension, designed from the start around 120 mm, bring extra fun to every ride without compromising weight or efficiency. Simply put, Oiz is the fastest XC bike to leave Orbea's factory in over 180 years.

Modern XC racing is more demanding than ever, meaning that modern XC bikes are evolving to offer more control, and fun, on the descents. Orbea's No Compromise Geometry takes feedback from their racers, riders and tests to make Orbea's funnest ever XC bike.

A steep seat tube and lower stack puts you in the driving seat, in full control of your ride. The longer reach, designed around a 60-90 mm stem, offers stability on the descents while maintaining a weighted front wheel for attacking on the climbs and corners.

OMR is Orbea's second level carbon which offers all the rigidity and strength of OMX carbon for those who don’t need the ultimate in light weight.

Main features:

Oiz is the fastest XC bike to leave Orbea's factory in over 180 years.
OMR carbon frame.
120 mm front and rear travel.
Shimano XT 1x12-speed drivetrain.
Shimano XT M8100 hydraulic disc brakes.

Features:

Frame	Carbon: Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
Fork	Fox 34 Float SC Factory FIT4 Remote-Adj Push to Lock, QR15x110 mm, Kashima, 120 mm travel
Rear Shock	Fox Float SL Factory 120 mm Remote Push-lock Evol Kashima custom tune, 190 x 45 mm
Shifter	Shimano XT M8100, I-Spec EV, 1x12-speed
Rear Derailleur	Shimano XT M8100, SGS, Shadow Plus, 12-speed
Cassette	Shimano Deore XT CS-M8100, 10-51T
Chain	Shimano M7100
Crankset	Shimano XT M8120, 32T
Brakes	Shimano XT M8100, Hydr. Disc Brake

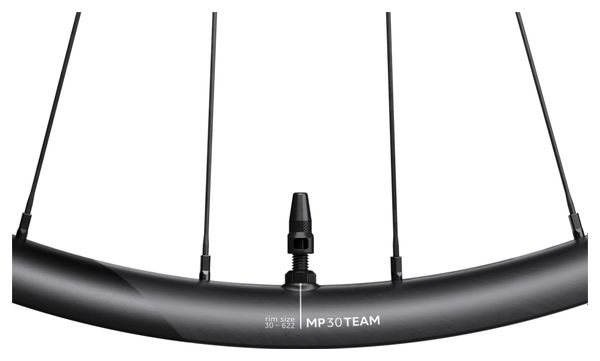

Wheelset	Oquo Mountain Performance MP30TEAM, carbon hookless rim, DT350 CL hub, 30 mm internal width, Sapim D-Sprint spokes, 29"
Tires	Maxxis Rekon Race, 120 TPI, Exo, TLR, 29x2.40" WT
Handlebar	OC Mountain Performance MP10 Carbon, Width 760 mm, Sweep 9°
Stem	OC Mountain Performance MP21, -6º
Headset	Alloy 1-1/2", Black Oxidated Bearing
Saddle	Fizik Taiga, S-alloy rail
Seatpost	OC Mountain Control MC21, 31.6 mm, Dropper / OC Squidlock MP20 Remote, Dropper, Suspension 3 Pos
Weight	---
Color	N2 - Halo Silver - Blue Carbon View (Gloss)
Reference	R238

Geometries:

Frame Size	S	M	L	XL
Seat Tube (mm)	405	432	460	510
Top Tube (mm)	575	598	623	650
Chain Stays (mm)	432	432	432	432
Head Tube Length (mm)	90	90	100	115
Head Tube Angle (°)	67	67	67	67
Seat Tube Angle (°)	76.5	76.5	76.5	76.5
Wheelbase (mm)	1138	1163	1189	1219
Stack (mm)	596	596	606	619
Reach (mm)	425	450	472	496
