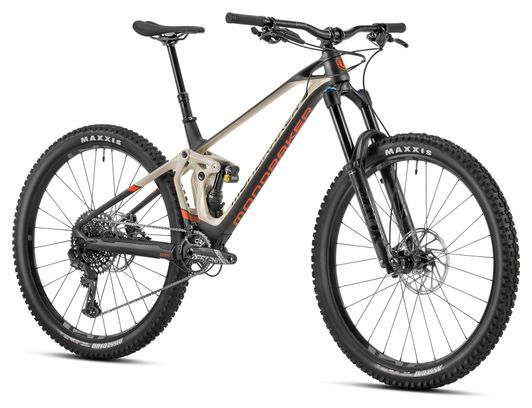

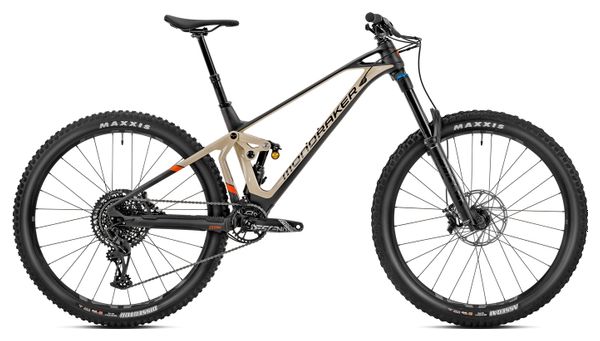

Mondraker Superfoxy Carbon R mountain bike Sram GX Eagle 12V 29'' Beige/Grey
Mondraker
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
Note : Please note that specifications are subject to change without notice, based on component availability and other factors.
As with the Summum Carbon, the lightest bikes on the international DH circuit, the Superfoxy Carbon follows their example in what we consider Superenduro. 170 mm of front travel and 160 mm of rear travel: that says it all. And best of all, thanks to Sram's 12-speed transmission, you can climb all the way to the top and then get back to enjoying the downhill. A light, maneuverable bike. The Fox 38 fork and Ölhins TTX Air shock, combined with a frame and swingarm with 12x157 mm Superboost hub, will give you unprecedented rigidity that will make the toughest trails child's play.
Product benefits :
- 6061 Alloy Stealth Evo aluminum frame with 160 mm of travel.
- Sram GX Eagle transmission, 1x12 speeds.
- Sram Code R hydraulic disc brakes, 4 pistons, 200/200 mm.
Details :
| Frame | Carbon: SuperFoxy 29 Stealth Air all-carbon, Zero suspension system, 160 mm travel, Forward Geometry, Monoblock carbon top link, SuperBoost 12 x 157 mm rear axle, tapered head tube, BSA 73 mm bottom bracket, specific design for single-drivetrain, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05 |
| Forks | Fox 38 29 Float FIT GRIP EVOL Performance, 170 mm, tapered steerer tube, 15 x 110 mm Boost axle, 44 mm offset. Adjustments: 3 positions with micro-adjustment of compression, low-speed rebound, pneumatic preload |
| Shock absorber | Öhlins TTX Air 205x65 mm. Settings: high-speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, lower bushes 22.2 x 10 mm |
| Derailleur lever | Sram Trigger GX Eagle, 12 speeds, X-Actuation 1:1 |
| Rear derailleur | Sram GX Eagle, Roller Bearing Clutch type 3, clevis locking technology, 1 x 12 speeds, X-Actuation 1:1 |
| Cassette | Sram XG-1275, 10-52 teeth, 12 speeds |
| Chain | Sram NX Eagle, 12 speeds, Powerlock |
| Crankset | Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, 32-tooth Direct Mount chainring, CNC-machined aluminum, X-SYNC 2 (Cranks: sizes S/M: 170 mm, size L/XL: 175 mm) |
| Bottom bracket | Sram DUB BSA, sealed bearings, 73 mm |
| Brakes | Sram Code R, 4-piston oversize caliper, Centerline 200/200mm IS single-piece 6-hole disc, sintered metal pads on steel |
| Wheels | e*thirteen LG1 Enduro, IW30 hookless, welded 6069 aluminum, internal width 30 mm, Tubeless Ready, 28 spokes |
| Hubs | Front: e*thirteen Boost 15 x 110 mm, triple sealed, all-aluminum machined, IS 6 holes / Rear: e*thirteen Superboost 12 x 157 mm, triple sealed, all-aluminum machined with 6-degree engagement, IS 6 holes, XD freewheel |
| Tires | Front: Maxxis Assegai 29 x 2.5 WT, Tubeless Ready, 3C MAXX GRIP compound, DH casing, 60 x 2 TPI, soft bead / Rear: Maxxis Dissector 29 x 2.4 WT, Tubeless Ready, 3C MAXX GRIP compound, DH casing, 60 x 2 TPI, soft bead |
| Handlebars | Onoff Sulfur 1.0, double-reinforced 6061 aluminum, curvature: 20 mm, width: 800 mm, 9° bend, 5° rise, bore 31.8 mm |
| Handles | Onoff Desert, single lock, 135 mm |
| Stem | Onoff Sulfur FG 30 mm 0º, forged aluminum alloy 6061, bore 31.8 mm |
| Headset | Onoff Titan tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, top 41.8x30.5x8x45°x45°, bottom 51.9x40x8x45°x45° |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seat post | OnOff Pija internal telescopic seatpost, diameter 31.6 mm, size S: 405 x 95-125 mm, size M: 458 x 120-150 mm, size L: 498 x 140-170 mm, size XL: 498 x 140-170 mm |
| Weight | 15.6 kg |
Geometries :
| Frame size | S | M | L | XL |
| Wheel size (inches) | 29 | 29 | 29 | 29 |
| Seat tube (mm) | 380 | 420 | 470 | 510 |
| Top tube (mm) | 603 | 626 | 651 | 675 |
| Base length (mm) | 440-450 | 440-450 | 440-450 | 440-450 |
| Steering bushing (mm) | 90 | 100 | 115 | 130 |
| Steering angle (°) | 65 | 65 | 65 | 65 |
| Seat tube angle (°) | 70.5 | 70.5 | 70.5 | 70.5 |
| Wheelbase (mm) | 1207 | 1230 | 1256 | 1283 |
| Stack (mm) | 605 | 605 | 642 | 642 |
| Reach (mm) | 450 | 470 | 490 | 510 |
MORE INFORMATION
| 1 Bicycle bought = 1 Tree planted. Alltricks is committed to the planet. Read more |
Features
| Gender |
Women Men |
| Fork Travel | 170 |
| Shock Travel | 160 |
| Frame material | Carbon |
| Groupset | Sram GX Eagle 12V |
| Year | 2023 |
| Pratique | Enduro |
| Poids | 15.60 |
