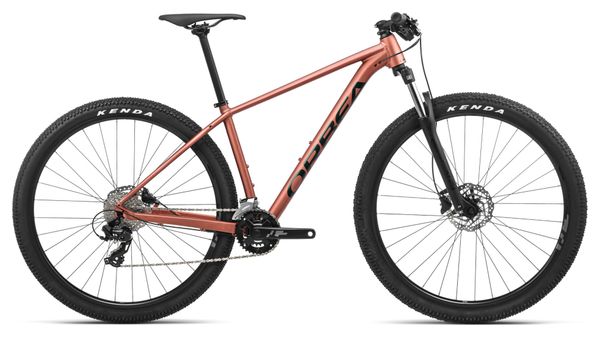

Orbea Onna 50 Hardtail MTB Shimano Tourney/Altus 8S 29'' Terracotta Red Orange 2023
Orbea Onna 50 Hardtail MTB Shimano Tourney/Altus 8S 29'' Terracotta Red Orange 2023
Orbea

Orbea Onna 50 Hardtail MTB Shimano Tourney/Altus 8S 29'' Terracotta Red Orange 2023 Orbea

€519.99

RRP €599.00

€519.99

RRP €599.00

Frame size / rider height

Size Guide

Choose your option

M / 165-180 cm

Out of stock

L / 175-190 cm

Out of stock

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

similar products

Description

What size do you need?


Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride

Measure yourself accurately

To get started, measure your height and use the size chart available on each product description.

What to do if you are in between bike sizes?

If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.

Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
  • If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
  • On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.

Still confused? Contact us
Buying guide

Please note that specifications are subject to change without notice, based on component availability and other factors.

Orbea designed the Onna for the rider who wants to conquer the trail. A bike geometry that maximizes efficiency and control is perfect for any rider who is learning to love MTB.

Onna 50 boasts balanced geometry with perfect trail manners to maximise the fun for all riders. Add wheel sizes matched to frame size give perfect fit for all riders and the Onna is ready for the trail ahead. With tapered headtube to give a wide choice of 100 mm suspension forks and hydraulic disc brakes across all the range, Onna is equipped for the ride. With plenty of room for wide mountain bike tyres for comfort and grip, Onna isn´t going to limit your adventures. Onna´s advanced aluminium frame with shaped tubes allows us to fine tune the ride quality. Stiff enough to be fast and responsive, compliant enough to be comfortable and controlled.

The perfect ride starts with the perfect fit, and to help you find yours Onna is available in four frame sizes matched with two wheel sizes.

Main features:

  • Orbea Onna is equipped for the ride.
  • Advanced aluminium frame.
  • Shimano Tourney/Altus 2x8-speed drivetrain.
  • Shimano MT200 hydraulic disc brakes.

Features:

Frame Aluminium: Orbea Onna Alloy, Dropout 9x135 mm, BSA BB, Internal cable routing
Fork SR Suntour XCE 28 Coil, QR, 100 mm travel
Shifters Microshift TS38, 2x8-speed
Front Derailleur Shimano M315, 31.8 mm
Rear Derailleur Shimano Tourney TX RD-TX800, 8-speed
Cassette SunRace CSM66, 11-34T
Chain KMC X8
Crankset Forged alloy, 36/22T
Brakes Shimano MT200, Hydr. Disc Brake
Wheelset Mach1 ER20 19c, 29"
Tires Kenda K1153, 22 TPI, 29x2.35"
Handlebar Alloy, 31.8 mm, Flat, Width 720 mm
Stem Alloy, 7º
Headset 1"-1/8 Semi-Integrated
Saddle Essax Adv soft135mm for Orbea
Seatpost Alloy, 27.2 mm, Setback 0 mm
Pedals VP-537 Black
Weight ---
Color NA - Terracotta Red (Matt) - Green (Gloss)
Reference N207

Geometries:

Frame Size S M L XL
Seat Tube (mm) 388 430 470 540
Top Tube (mm) 561 589 614 646
Chain Stays (mm) 440 440 440 440
Head Tube Length (mm) 95 95 105 120
Head Tube Angle (°) 68.5 68.5 68.5 68.5
Seat Tube Angle (°) 74.5 74.5 74.5 74.5
Wheelbase (mm) 1093 1121 1146 1180
Stack (mm) 617 617 627 641
Reach (mm) 390 418 440 468
Stem Length (mm) 70 70 70 90

MORE INFORMATION

See our best MTBs.

Features

Frame material Alloy
Groupset Shimano Tourney/Altus
