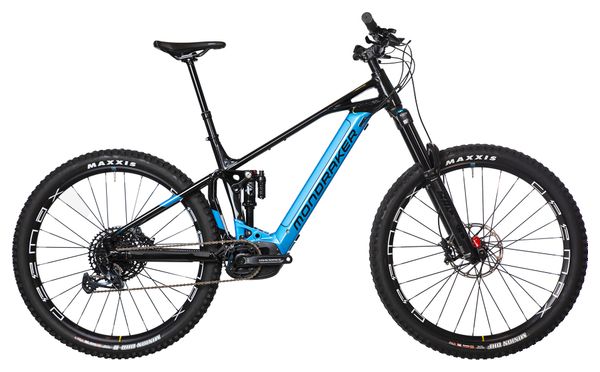

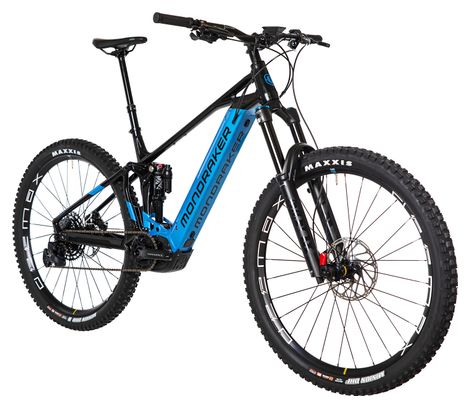

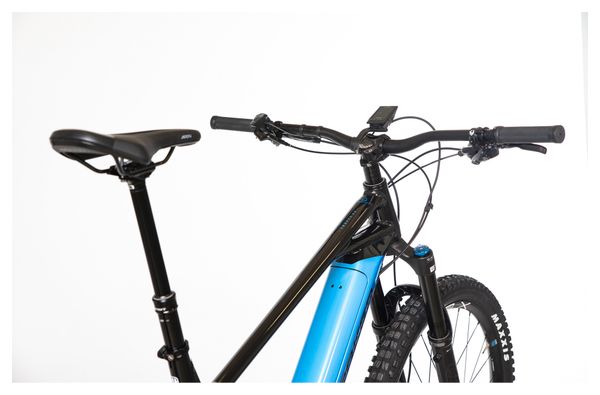

Mondraker Crafty SE Sram GX/NX Eagle 12V 625 Wh 29'' Black Blue 2022
Mondraker Crafty SE Sram GX/NX Eagle 12V 625 Wh 29'' Black Blue 2022
Mondraker Crafty SE Sram GX/NX Eagle 12V 625 Wh 29'' Black Blue 2022
Mondraker Crafty SE Sram GX/NX Eagle 12V 625 Wh 29'' Black Blue 2022
Mondraker Crafty SE Sram GX/NX Eagle 12V 625 Wh 29'' Black Blue 2022
Mondraker Crafty SE Sram GX/NX Eagle 12V 625 Wh 29'' Black Blue 2022
Mondraker Crafty SE Sram GX/NX Eagle 12V 625 Wh 29'' Black Blue 2022
Mondraker Crafty SE Sram GX/NX Eagle 12V 625 Wh 29'' Black Blue 2022
Mondraker Crafty SE Sram GX/NX Eagle 12V 625 Wh 29'' Black Blue 2022

They love it!

★★★★★
★★★★★
1 Reviews
Mondraker
★★★★★
★★★★★
- 1 Reviews

Mondraker Crafty SE Sram GX/NX Eagle 12V 625 Wh 29'' Black Blue 2022 Mondraker

€4,299.99

RRP €6,199.00

Including 12.94€ eco-participation

€4,299.99

RRP €6,199.00

Including 12.94€ eco-participation

€4,299.99

RRP €6,199.00

Including 12.94€ eco-participation

Frame size / rider height

Size Guide

Choose your option

M / 168-180 cm

Out of stock

L / 175-188 cm

Out of stock

XL / 185-198 cm

Out of stock

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

similar products

Description

What size do you need?


Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride

Measure yourself accurately

To get started, measure your height and use the size chart available on each product description.

What to do if you are in between bike sizes?

If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.

Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
  • If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
  • On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.

Still confused? Contact us
Buying Guide
Buying guide

Please note that specifications are subject to change without notice, based on component availability and other factors.

Mondraker engineers put everything they know about performance ATVs into the making of their electric ATVs. That's why their Crafty models have no room for compromise, they're simply designed for the real ATV. The Zero Suspension System and Forward Geometry technologies work incredibly well, and allow the rider to perform the way they want by taking it to the next level.

Product Highlights:

  • 6061 Alloy Stealth Evo aluminum frame with 150mm of travel.
  • Transmission Sram GX/NX Eagle 1x12 Speeds.
  • Sram G2 R hydraulic disc brakes, 200/200 mm.

Details:

Frame Aluminum: Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150 mm travel, Forward Geometry, internal battery, Boost 12x148 mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, Mondraker M068 Derailleur hanger
Fork Fox 38 29 Float GRIP Performance, 160 mm travel, e-bike tuned, tapered steerer tube, Boost 15x110 mm axle, 44 mm offset. Adjustments : 3 positions with micro adjust compression, low-speed rebound, air preload

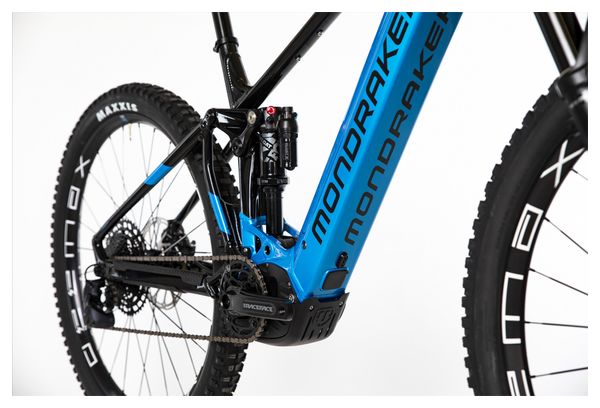

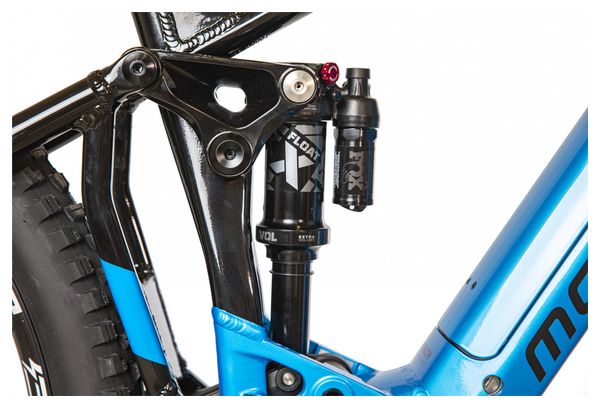

Shock absorber Fox Float-X LV Performance, 205x65 mm, Trunnion top mount, 25x10 mm bottom bushings. Adjustments : 2 position compression lever, low-speed rebound, air preload (Medium compression, medium rebound, air volume spacer 0.2)
Engine Bosch Performance Line CX Cruise (25 km/h) GEN4
Battery Bosch PowerTube 625 Wh
Screen Bosch Kiox 300
Shift lever Sram Trigger NX Eagle, X-Actuation 1:1, single click, 1x12-speed

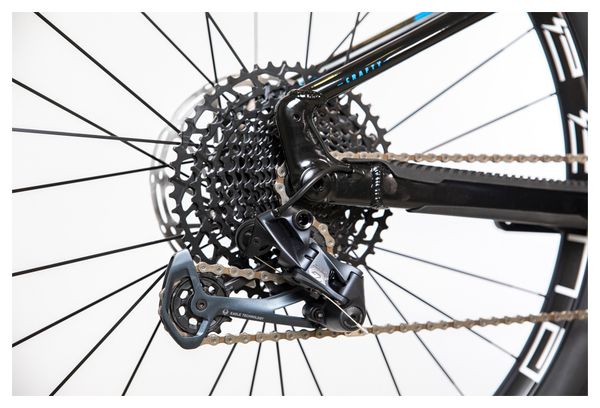

Rear derailleur Sram GX Eagle, Type 3 roller bearing clutch, cage lock, X-Actuation 1:1, 12-speed
Sprocket set Sram XG-1210, 11-50 Teeth
Chain Sram SX Eagle, Powerlock

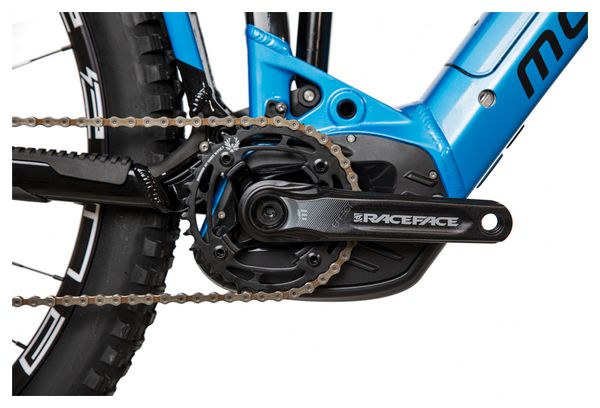

Crankset Race Face Effect ebike, 165 mm, Sram X-Sync 2 Eagle 34 Dents, steel, narrow-wide, 104 BCD
Brakes Sram G2 R, Hydr. Disc Brake, 4-piston caliper, Centerline 200/200 mm IS 6 bolts one-piece rotors
Wheels Mavic E-Deemax 29, 30 mm internal width, welded, PFP, tubeless ready, 28 spokes, Mavic J-bend duble butted, contactless lacing spokes
Hubs Front: Mavic, Boost 15x110 mm, IS 6 bolts / Rear: Mavic, Boost 12x148 mm, ID360 Ratched system, IS 6 bolts
Tires Front: Maxxis Minion DHF Maxxis Minion DHF, tubeless ready, 3C Maxx Terra, EXO+ Protection, 120 TPI, folding bead, 29x2.6" / Rear: Maxxis Minion DHR II, tubeless ready, 3C Maxx Terra, EXO+ Protection, 120 TPI, folding bead, 29x2.6"

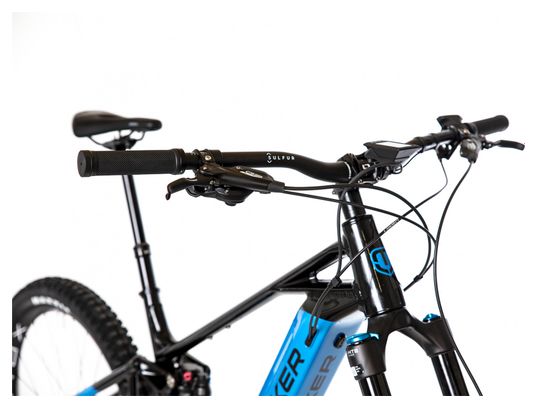

Handlebars OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20 mm, width: 800 mm, 9º backsweep, 5º upsweep, 31.8 mm barbore
Handles Onoff Diamond, 1lock-on, 135 mm
Stem Onoff Sulfur FG 30 mm 0º, 6061 forged alloy, 31.8 mm barbore
Headset Onoff Saturn tapered for 1-1/8" to 1-1/2" head tube, ACB sealed bearings, 41x30.2x7x45ºx45º (top), 51.9x40x8x45ºx45º (bottom)
Saddle Fizik Terra Aidon X5, 145 mm

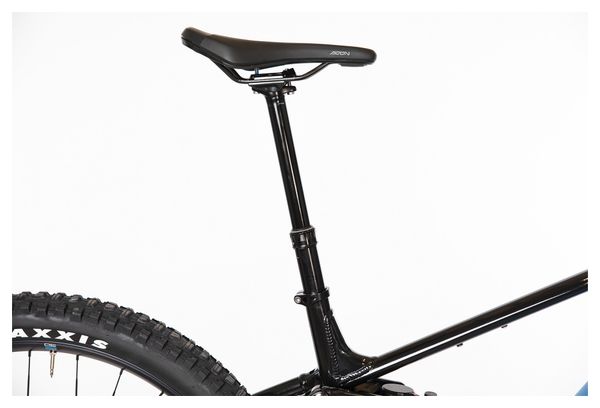

Saddle post Onoff Pija dropper internal, diameter 31.6 mm, 387x125 mm (S), 425x150 mm (M), 465x170 mm (L/XL)
Weight 25.3 kg

Geometries :

Frame size S M L XL
Wheel size (inches) 29 29 29 29
Seat tube (mm) 380 420 450 490
Top tube (mm) 605 625 650 670
Base length (mm) 455 455 455 455
Header sleeve (mm) 110 110 130 130
Steering angle (°) 65.5 65.5 65.5 65.5
Seat tube angle (°) 73.5 73.5 73.5 73.5
Wheelbase (mm) 1225 1245 1265 1285
Stack (mm) 622 622 640 640
Reach (mm) 450 470 490 510
