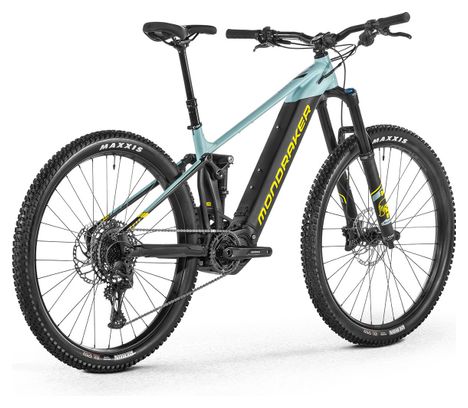

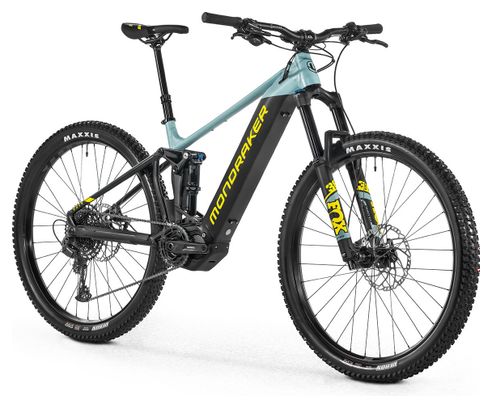

Mondraker Dusk R Full Supension MTB Shimano Deore 12S 29'' 630 Wh Blue / Black 2021
Mondraker Dusk R Full Supension MTB Shimano Deore 12S 29'' 630 Wh Blue / Black 2021
Mondraker Dusk R Full Supension MTB Shimano Deore 12S 29'' 630 Wh Blue / Black 2021
Mondraker Dusk R Full Supension MTB Shimano Deore 12S 29'' 630 Wh Blue / Black 2021
Mondraker Dusk R Full Supension MTB Shimano Deore 12S 29'' 630 Wh Blue / Black 2021
Mondraker Dusk R Full Supension MTB Shimano Deore 12S 29'' 630 Wh Blue / Black 2021
Mondraker Dusk R Full Supension MTB Shimano Deore 12S 29'' 630 Wh Blue / Black 2021
Mondraker Dusk R Full Supension MTB Shimano Deore 12S 29'' 630 Wh Blue / Black 2021
Mondraker Dusk R Full Supension MTB Shimano Deore 12S 29'' 630 Wh Blue / Black 2021
Mondraker

Mondraker Dusk R Full Supension MTB Shimano Deore 12S 29'' 630 Wh Blue / Black 2021 Mondraker

€5,499.00

€5,499.00

Frame size / rider height

Size Guide

Choose your option

M / 167-178 cm

Out of stock

L / 175-188 cm

Out of stock

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

similar products

Description

What size do you need?


Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride

Measure yourself accurately

To get started, measure your height and use the size chart available on each product description.

What to do if you are in between bike sizes?

If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.

Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
  • If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
  • On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.

Still confused? Contact us
Buying Guide
Buying guide

Please note that specifications are subject to change without notice, based on component availability and other factors.

With the latest shimano EP8 engine, lighter and quieter, in our state-of-the-art stealth alloy evo frame, with optional secondary battery, the Dusk R 2021 puts the competition in a shadow.

Mondraker's famous Forward Geometry technology has been perfected to the extreme to take it to the level of DH racing, making it a perfect machine for taming the extra speed and load of motorized riding. We've optimized our Zero Suspension system to pair our super precise integrated battery frame with the legendary Fox 36 Float Evol fork for a set that gives you total control. Because you'll want to ride this awesome set so much, we've also added the option of adding an extra battery to get 50% more run time than the main battery. Add 203mm rotors, an OnOff Pija dropper post and Maxxis Rekon tires, and you've got a splendid mix.

The + product:

  • Dusk Stealth Evo aluminum frame with 150mm travel.
  • Shimano Deore 1x12 speed drivetrain
  • Shimano MT420 4 piston hydraulic disc brakes.
  • Shimano Steps EP8 motor with 630 Wh battery.

Details:

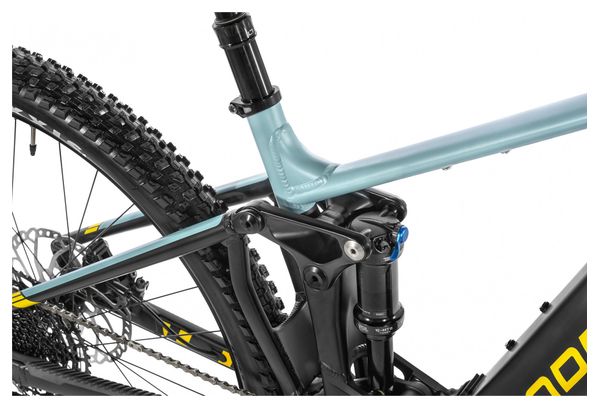

Frame Aluminum: Dusk Stealth Evo in 6061 aluminum, Zero suspension system optimized for e-bikes, 150mm travel, Forward Geometry, built-in non-removable internal battery, 12 x 148mm Boost rear axle
Fork Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, Boost 15x110mm axle, 44mm offset.

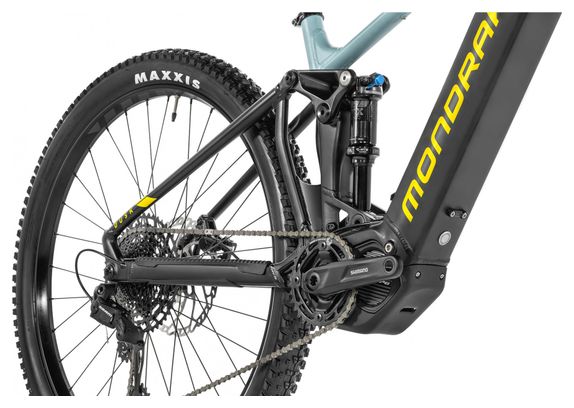

Rear Shock  Fox Float DPS LV EVOL Performance, 205 x 65 mm.

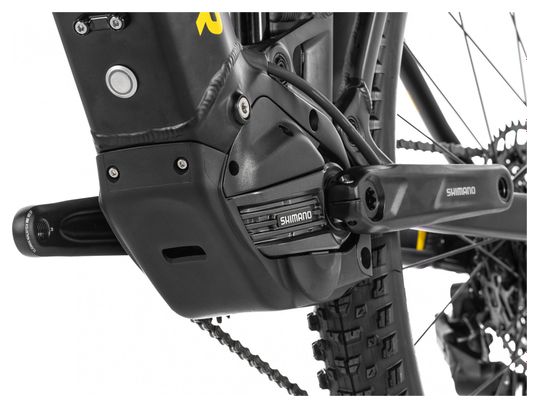

Engine Shimano STEPS EP800
Battery Simplo internal 630 Wh
Display Shimano STEPS E7000
Shifter Shimano Deore M6100, Rapid Fire Plus, 1x12 speed
Rear derailleur Shimano Deore M6100, SGS, Shadow +, 1x12 speed
Cassette Shimano Deore M6100, 10-51T Hyperglide +
Chain Shimano Deore M6100, 12 speed, Quick-link
Crankset Shimano STEPS EM600, 165mm
Brakes F: Shimano M4100, Servo Wave, aluminum lever, tool free guard adjustment / R: Shimano MT420, 4 piston caliper, RT66 203mm IS 6 bolt disc, resin pads
Wheels MDK-HP1 29 ", internal width 30 mm, compatible with tubeless tires, 32 spokes
Hubs F: Formula DC711, 15 x 110mm, sealed bearings, IS 6 bolts / R: Formula EHL148 Boost 12 x 148mm, sealed bearings, IS 6 bolts
Tires Maxxis Rekon 29 x 2.6, tubeless compatible, double material, Exo protection, 60 TPI, flexible bead

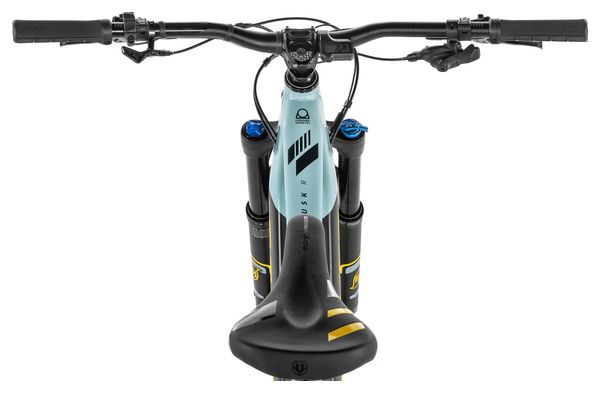

Handlebar Onoff Sulfur 1.0, double butted 6061 aluminum, contour: 20mm, width: 780mm, 9 ° backsweep, 5 ° upsweep, 31.8mm bore
Grips Onoff Twin, 1 locking, 135 mm
Stem Onoff Sulfur FG 30mm 0º, Forged 6061 Aluminum Alloy, 31.8mm bore
Saddle Custom Mondraker E-MTB design
Seatpost Onoff Pija Internal Telescopic, Diameter 31.6mm, Size S: 387 x 125mm, Size M: 425 x 150mm, Size L / XL: 465x170mm
Weight 23.6 kg
Colors Black / blue

Geometries:

Frame size S M L XL
Wheel Size (inch) 29 29 29 29
Seat tube (mm) 380 420 450 490
Top tube (mm) 605 625 650 670
Base length (mm) 455 455 455 455
Head tube (mm) 110 110 130 130
Steering angle (°) 65.5 65.5 65.5 65.5
Seat tube angle (°) 73.5 73.5 73.5 73.5
Wheelbase (mm) 1125 1245 1265 1285
Stack (mm) 622 622 640 640
Reach (mm) 450 470 490 510

MORE INFORMATION

See our best MTBs.

Features

Frame material Alloy
Groupset Shimano Deore
