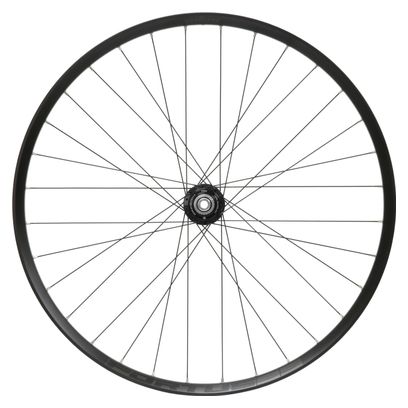

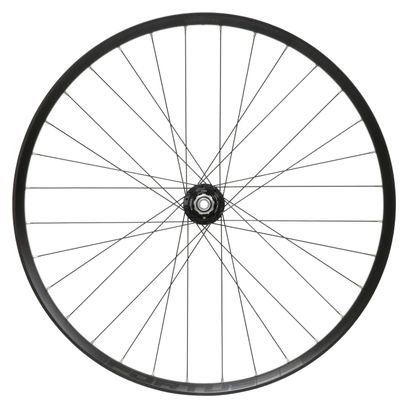

Our 35mm rim offers superior strength with its triple cavity construction, ideal for the private enduro or DH rider looking for a reliable and durable wheelset.
New hub body profile for greater stiffness without adding weight.
Fully repairable and rebuildable with simple tools.
End spacers can be easily replaced to fit different frames and axles.
Details
- Material: 6061 T6 aluminum.
- Axle: Boost 12x148 mm.
- Disc mount: CenterLock.
- Internal rim width: 35 mm.
- External rim width: 40 mm.
- Rim height: 18.5 mm.
- ERD: 567 mm.
- Spokes length left side: 275 mm.
- Length of the spokes on the right side: 273 mm.
- Weight of the 27.5" rim: 575 g.
- Recommended tire width: 2.5" - 3.0".
- 32 holes.
- Maximum recommended tire pressure: 60 Psi / 4.1 Bar.
Part number
- HRW27F35P5CLN148SA / Shimano/Sram body - CenterLock
- HRW27F35P5CLN148MS / Shimano Micro Spline Body - CenterLock
- HRW27F35P5CLN148XD / Sram XD Body - CenterLock
