Avinox motors: the most powerful e-bike motors on the market!
A little over a year ago, Avinox, the motor brand developed by DJI's cycling division, shook up the electric mountain bike (e-MTB) market with its first M1 motor. With the new M2 and M2S generations, the brand is pushing its own limits even further. More powerful, quieter, and packed with connected features, these motors are establishing themselves as an essential reference. Here’s everything you need to know before buying an e-MTB equipped with an Avinox motor.
The Avinox M2S Motor: The Pinnacle of the Avinox Range
- ✓ Up to 150 N·m of torque in Boost mode
- ✓ 1,500 W peak power (with FP700 or RS800 battery)
- ✓ 800% maximum assistance ratio
- ✓ Flat wire winding: +46% power density
- ✓ Noise level ≤ 45 dB — the quietest on the market
- ✓ IP66 certification — resistant to direct water jets
From €7,999
Everything You Need to Know About Avinox Motors
Key Strengths of the Avinox System
Unmatched Power
130 N·m continuously, 150 N·m for 60 seconds in Boost mode, and 1,500 W peak power. Double the peak power compared to market references, in an equivalent weight.
Heart Rate Control
Connect an Apple Watch or heart rate monitor: the system automatically adjusts assistance to keep your heart rate in the target zone. No competitor offers this natively.
Multi-Layer Anti-Theft System
The system combines Apple's Find My network, sound alarm, app notifications, password lock, and automatic Bluetooth key unlock (your phone = the key). With an integrated nano-SIM, location works even without a phone nearby.
GPS Navigation Without a Smartphone
Import your GPX, FIT, Komoot, or TCX tracks from your iPhone. The route displays turn-by-turn on the bike's screen with sound alerts — without needing a phone nearby, thanks to the integrated GPS chip and 4G connectivity via SIM card.
Fast Charging + USB-C Charging
The FP700 battery reaches 80% in 1 hour and 16 minutes with the fast charger. The bike's screen also has a USB-C port to charge your smartphone or any other external device during your ride.
Silence and Efficiency
The M2S introduces flat wire winding, which improves power density by 46% and achieves an efficiency of 84.5%. Noise measured at ≤ 45 dB.
Walk Mode and Gear Shifting While Stationary
Walk mode assists pushing up to 6 km/h with anti-rollback on slopes. Even better: by lifting the rear wheel in Walk mode, you can shift gears without pedaling — ideal before a technical section.
OTA Updates
The system updates Over-The-Air via the Avinox Ride app, without needing to visit a workshop. New features and fixes arrive directly on your bike.
The 5 Avinox Assistance Modes
Avinox offers four riding modes and a special Boost mode. All parameters are customizable — assistance level, torque, power, and startup — via the app or directly on the bike's screen.
| Mode | Max Power (M2S) | Max Torque (M2S) | Startup Profile | Recommended Use |
|---|---|---|---|---|
| Eco | 400 W | 70 N·m | Gradual, smooth | Flat terrain, preserve battery life |
| Auto | 1,300 W | 130 N·m | Adaptive (multi-sensor fusion) | Long rides on varied terrain |
| Trail | 1,300 W | 130 N·m | Moderate | Mixed and technical trails |
| Turbo | 1,300 W | 130 N·m | Aggressive | Obstacles, difficult climbs |
| Boost ⚡ | 1,500 W | 150 N·m | Long press — peak of 10 to 60 seconds | Critical crossings |
Comparison of Avinox M1, M2, and M2S Motors
Three generations, three levels of performance. The M1 was already considered one of the best motors on the market at its release. The M2 and M2S push the limits even further — with the M2S introducing flat wire winding for unprecedented power density in this category.
| Feature | Avinox M1 | Avinox M2 | Avinox M2S ★ |
|---|---|---|---|
| Weight | 2.52 kg | 2.65 kg | 2.59 kg |
| Dimensions (L×W×H) | 173 × 101 × 104 mm | 173 × 101 × 103 mm | 173 × 101 × 103 mm |
| Max Torque (Normal Modes) | 105 N·m | 110 N·m | 130 N·m |
| Boost Torque | 120 N·m | 125 N·m | 150 N·m |
| Torque Density | 47.6 N·m/kg | 47.2 N·m/kg | 57.9 N·m/kg |
| Nominal Power | 250 W | 250 W | 250 W |
| Peak Power | 1,000 W | 1,100 W | 1,500 W * |
| Max Assistance Ratio | 800% | 800% | 800% |
| Pedaling Resistance (Motor Off) | Moderate | Low | Very Low (−41%) |
| Noise Level | Moderate | Low | ≤ 45 dB (Lowest) |
| Winding Type | Round Wire | Optimized Round Wire | Flat Wire (+46% Density) |
| Efficiency | — | 83% | 84.5% |
| IP Protection | IP66 | IP66 | IP66 |
| Crank Interface | ISIS | ISIS | ISIS |
| Speed Sensor Connector | 2 Pins | 4 Pins | 4 Pins |

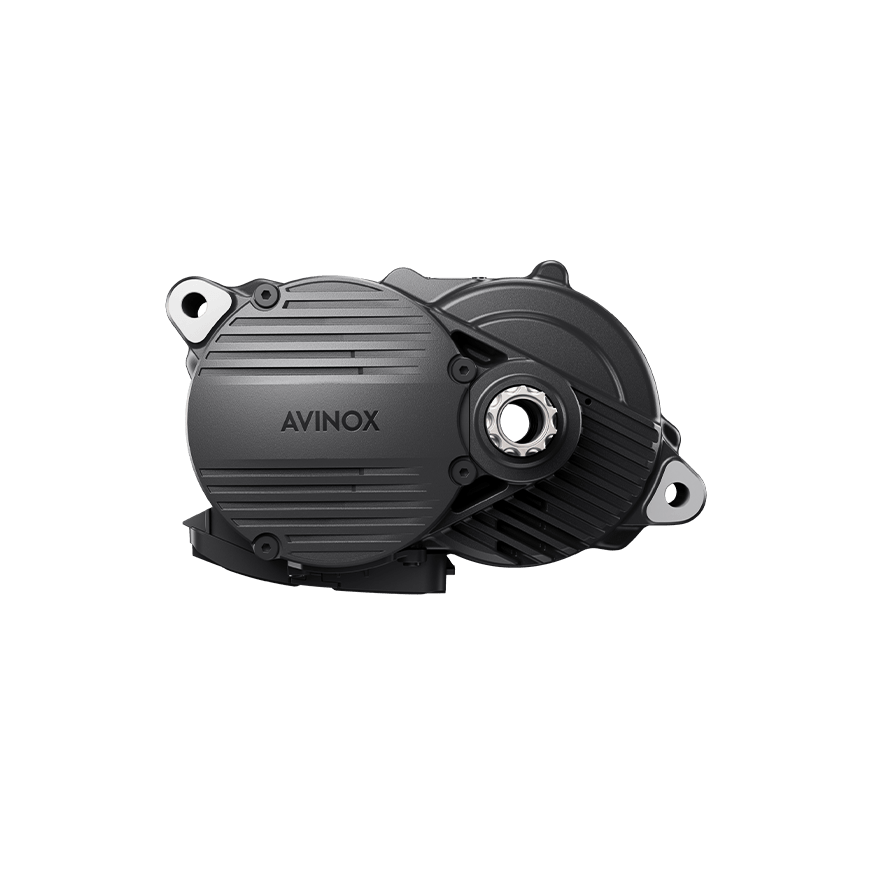

Avinox M1 — The Original Reference
The M1 created a sensation upon its release: 105 N·m and 1,000 W in a compact 2.52 kg format, figures that already surpassed all its competitors. Its 2-pin interface distinguishes it from the new generations. It remains an excellent base for riders looking for a proven motor at a more accessible price.

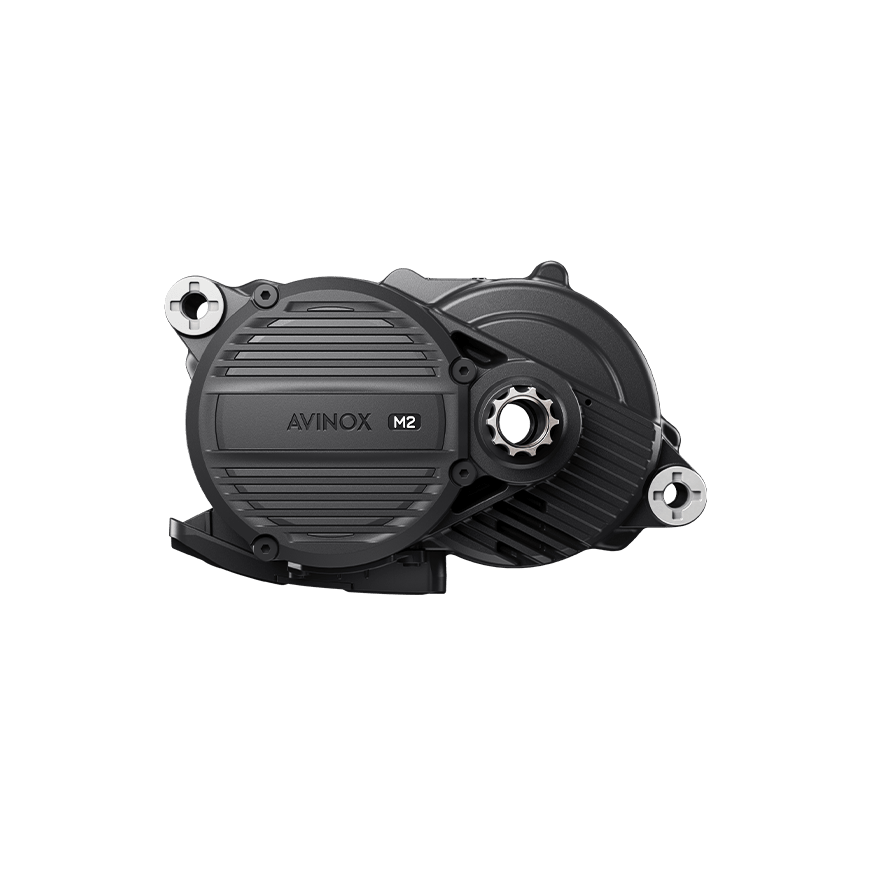

Avinox M2 — The Power Upgrade
The M2 builds on the M1's foundation, improving in every aspect: 110 N·m (vs. 105), 1,100 W peak (vs. 1,000), 125 N·m in Boost (vs. 120). Pedaling resistance goes from "moderate" to "low." Its optimized round wire winding achieves an efficiency of 83%. Excellent performance-to-price ratio for equipping enduro or trail bikes.

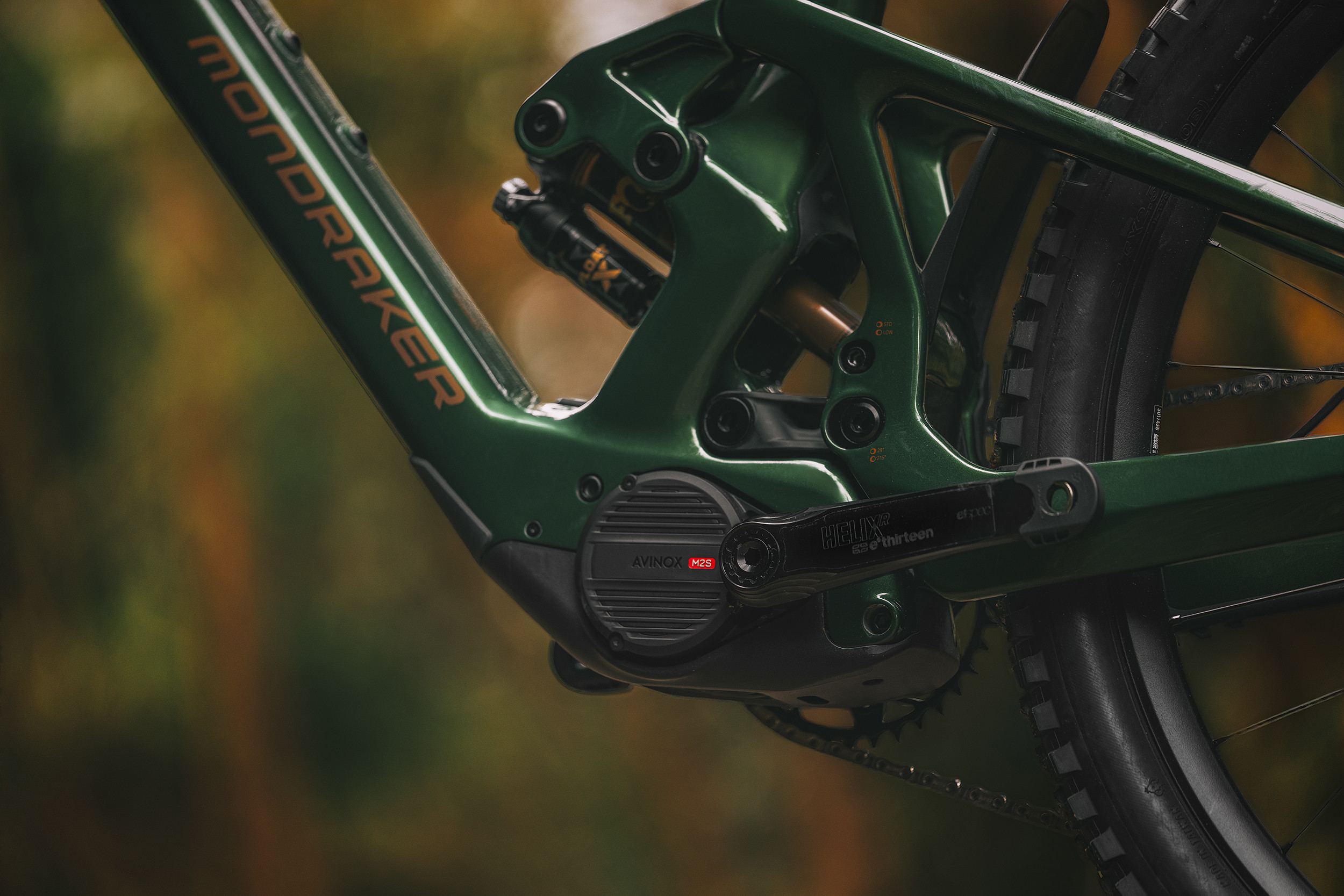

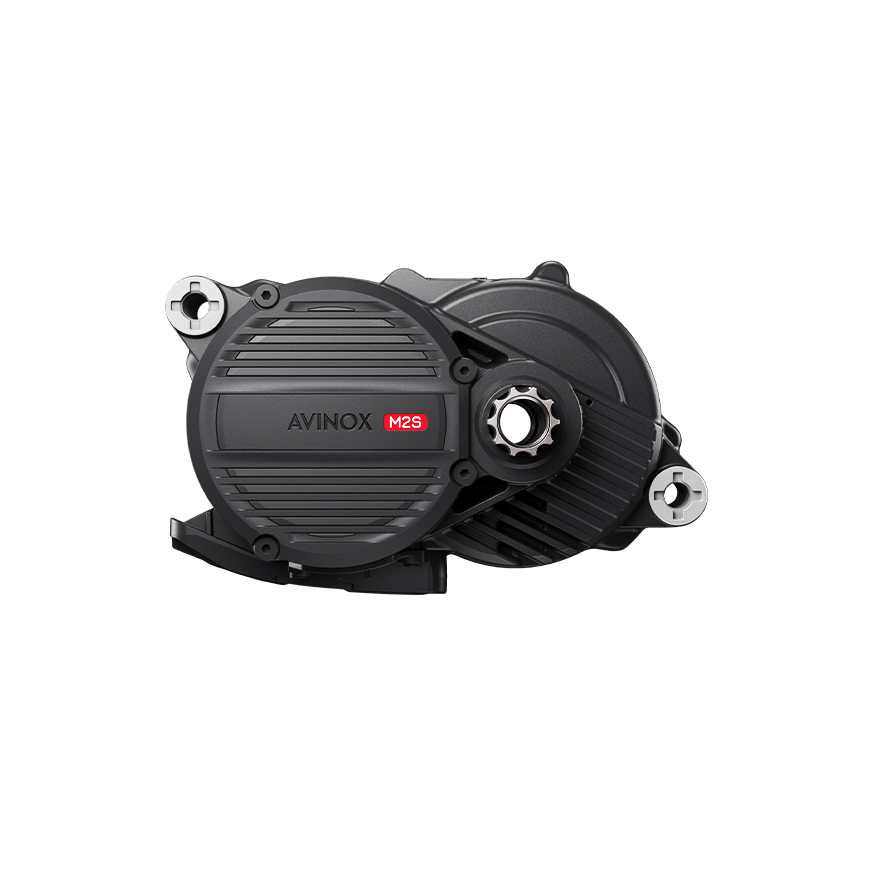

Avinox M2S — The Peak of the Range
The M2S is the true technological breakthrough in the range. Its flat wire winding — a technique from aeronautics — increases power density by 46% and significantly improves thermal management. Result: 130 N·m continuously, 150 N·m in Boost, 1,500 W peak, 84.5% efficiency, and the lowest noise level in the range. It is currently the most powerful e-MTB motor available on the consumer market.
View M2S Bikes
Avinox Batteries: Which One to Choose?
Avinox offers four different batteries. The choice not only affects range but also the maximum power unlocked by the M2S motor — a point often overlooked at purchase.
| Battery | Capacity | Weight | Removable | M2S Power Unlocked | Key Points |
|---|---|---|---|---|---|
| FP700 | 700 Wh | 3.18 kg | No (Integrated) | 1,500 W ★ | 220 Wh/kg — record density. 4680 cells. 80% in 1h16 with fast charger. |
| RS800 | 800 Wh | 4 kg | Yes (Key lock + strap) | 1,500 W ★ | Compatible with external battery (+600 Wh = 1,400 Wh total). Range > 100 km. |
| FS800 | 800 Wh | — | Yes | 1,300 W | Standard use. Does not unlock full M2S power. |
| FS600 | 600 Wh | — | Yes | 1,300 W | Compact format. Does not unlock full M2S power. |
Avinox Motor vs. Bosch
Bosch has dominated the e-MTB motor market for several years and remains our top seller. Here is an objective comparison of the two systems to help you choose.
| Feature | Avinox M2S | Bosch Performance CX Gen 5 |
|---|---|---|
| Max Torque | 150 N·m | 100 N·m |
| Peak Power | 1,500 W | 750 W |
| Weight | 2.59 kg | 2.8 kg |
| Max Assistance Ratio | 800% | 400% |
| Heart Rate Control | Yes (Native, via Apple Watch or Heart Rate Monitor) | — |
| Integrated Anti-Theft | Apple Find My Network + Alarm + Bluetooth Lock + 4G Location via Nano-SIM | Available via eBike Flow app (Bluetooth) or with ConnectModule |
| Built-in GPS Navigation | Integrated GPS Chip — Works Without Phone (GPX, FIT, Komoot, TCX) | Navigation via Phone GPS in Bluetooth |

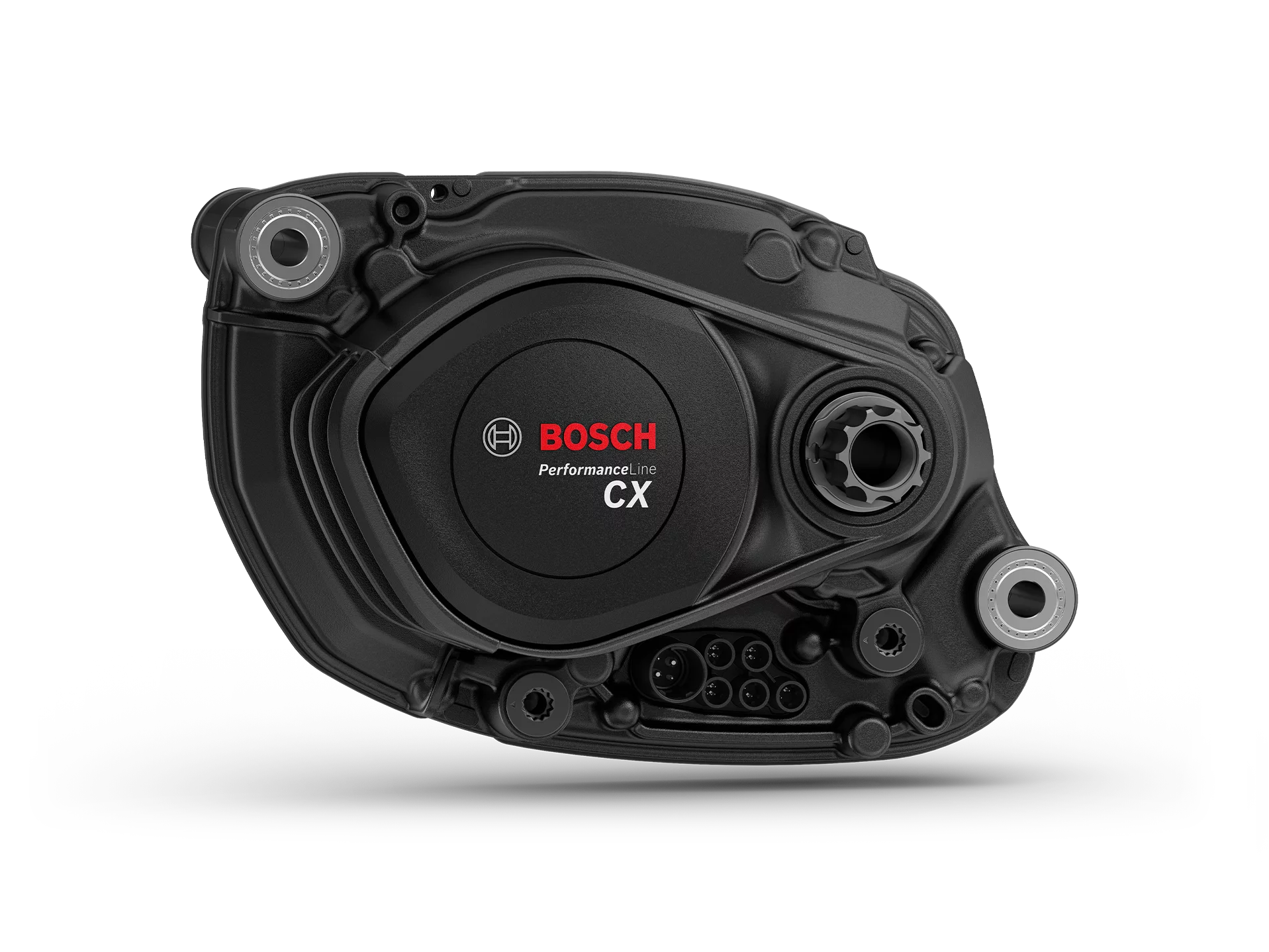

Avinox M2S vs. Bosch Performance CX Gen 5
The Bosch CX Gen 5 is the historic reference in electric MTBs, and for good reason: reliable, well-integrated, with the densest service network on the market, and compatible with a very large number of frames.
However, in raw numbers, the Avinox M2S has the edge: 150 N·m vs. 100 N·m, 1,500 W vs. 750 W, 800% assistance vs. 400%. It is also a step ahead in connectivity: integrated GPS chip for phone-free navigation, automatic assistance adjustment based on heart rate, and 4G location via nano-SIM without relying on Bluetooth. Bosch offers similar features but requires more accessories or the companion app.
Bikes with Bosch Motor Avinox Bikes
Brands That Use Avinox
Amflow, Avinox's sister brand, is the showcase for the system. But many recognized brands sold at Alltricks have already integrated Avinox motors into their ranges, demonstrating the industry's confidence.
Mondraker
High-end Spanish brand, specializing in enduro and downhill. The integration of the M2S into their frames is a strong signal of Avinox's credibility.
Megamo
Another recognized Spanish brand in the world of technical MTBs. Its adoption of the Avinox system demonstrates the brand's growing influence among European manufacturers.
Avinox Bikes Available at Alltricks
Discover our selection of electric MTBs equipped with Avinox M2 and M2S motors.
Avinox FAQ
The M2S is the high-end version. Its main innovation is flat wire winding (vs. round wire on the M2), which increases power density by 46%, improves thermal management, and achieves an efficiency of 84.5%. In practical terms, the M2S offers 130 N·m in normal modes (vs. 110 N·m), 150 N·m in Boost (vs. 125 N·m), and a peak power of 1,500 W (vs. 1,100 W). It is also the quietest thanks to its double-engagement helical gears, which eliminate mechanical play.
Yes. The 1,500 W power and 150 N·m Boost torque of the M2S are only available with the FP700 and RS800 batteries, which integrate 4680 cells. With FS800 or FS600 batteries, the system is capped at 1,300 W. This is an essential point to check before purchasing.
The nano-SIM card is optional but unlocks important features. Without a SIM, the system works via Bluetooth with your phone for navigation, settings, and location. With a 4G nano-SIM (standard, available from all operators), the bike is permanently connected: you can locate it in real time even without a phone nearby, automatically sync your ride data to the cloud, control assistance parameters remotely via the app, and receive anti-theft alerts even if you are far from the bike. The SIM fits into a dedicated slot under the screen (accessed with a Torx key). Important: If your SIM has a PIN code, you must deactivate it from a phone before inserting it; otherwise, the screen cannot connect to the internet.
The Avinox anti-theft system works on multiple layers. First, a digital password to enter on the bike's screen. Second, Mobile Key Unlock: if your paired phone is nearby, the bike unlocks automatically at startup without entering the code. Third, motion detection: if the bike is moved while locked, the screen sounds an alarm, and you receive a notification on the app. Fourth, real-time location via Bluetooth or 4G (with SIM): you see the bike's position and trajectory on a map in the app. Fifth, compatibility with Apple's Find My network, which works without a SIM via nearby Apple devices. The system is designed to be multi-layered: even if someone tries to remove the SIM (which requires disassembling the screen with a Torx key), the alarm triggers, and the motor remains locked without your Bluetooth phone nearby.
By activating the Smart Heart Rate Control function in the Avinox Ride app, you can connect an Apple Watch or a Bluetooth heart rate monitor. You set your target heart rate zone, and the system automatically adjusts assistance to keep you in that zone — very useful for training in heart rate zones without constantly monitoring your screen. This feature does not exist natively with Bosch or other competing motor manufacturers.
Walk mode is activated by a long press on the assistance decrease button. Once activated, hold the button down to get push assistance up to 6 km/h. The system also includes anti-rollback on slopes to prevent the bike from rolling backward during a stop on an incline. Assistance stops automatically as soon as you release the button or exceed 6 km/h. Bonus feature: in Walk mode, lift the rear wheel and press the derailleur lever twice to shift gears without pedaling — very practical for selecting the right gear before tackling a technical section.
Yes, this is one of the system's strengths. The Avinox screen has an integrated GPS chip and a touchscreen. You import your tracks from the app (GPX, FIT, Komoot, TCX), and they are stored on the system. During the ride, the route displays turn-by-turn on the screen with sound alerts, without needing the phone in Bluetooth. With a 4G nano-SIM card, this autonomy is total: navigation, location, and data sync are done without a phone.
Yes. The Avinox control screen is equipped with a USB-C port. Plug in a USB-C cable, turn on the screen, and your phone or any other compatible device charges directly from the bike's battery. Practical for long rides.
Yes. The M2 and M2S motors have a 41% reduction in pedaling resistance compared to previous generations, thanks to the double-engagement helical gears. The M1 is rated "moderate" on this criterion, the M2 "low," and the M2S "very low." Pedaling without assistance on an Avinox M2S e-MTB is therefore entirely feasible.
According to Avinox, the battery capacity may be slightly affected after 500 full charge cycles, without significant impact on riding. To preserve lifespan: charge between 0°C and 40°C, avoid leaving the battery below 10% for too long, do not overcharge (unplug once charged), and if you store the bike for several months, discharge the battery to 30% and remove it from the frame. A full charge/discharge cycle every three months is recommended for prolonged storage.
Updates are done Over-The-Air (OTA) via the Avinox Ride app, without needing to visit a workshop. When an update is available, a notification appears in the app. Make sure you have enough battery before starting the update, maintain a stable Bluetooth connection, and do not move the bike during the process. New features and fixes arrive directly on your bike.
For demanding enduro or trail use, the Avinox M2S stands out in terms of raw performance (torque, power, assistance ratio) and autonomous connectivity (built-in GPS, 4G via SIM, native heart rate control). The Bosch CX Gen 5 remains our top seller for good reasons: a very dense service network, compatibility with a very large number of frames, proven reliability over several years, and well-developed connected features via the eBike Flow ecosystem. The choice depends above all on your priorities: maximum power and connected autonomy for Avinox, mature ecosystem and peace of mind for Bosch.
Product List
Megamo
Megamo Reason AL 05 Full-Suspension Electric Mountain Bike, SRAM 12V, 800 Wh, DJI 150 Nm, 29-inch, White/Red, 2027
€5,999.00
Options
S / 154-169 cm
Delivery today from 02h
€5,999.00
M / 167-182 cm
Out of stock
€5,999.00
Amflow
Amflow PX Carbon 12V 700 Wh DJI 150 Nm 29''/27.5'' Full-Suspension Electric Mountain Bike - Black 2026
€6,999.99
Options
M / 162-177 cm
Out of stock
€6,999.99
L / 170-185 cm
Out of stock
€6,999.99
XL / 175-191 cm
Out of stock
€6,999.99
Megamo
Megamo Reason AL 03 Full-Suspension Electric Mountain Bike, Sram 12V, 800 Wh, DJI 150 Nm, 29-inch, White/Red, 2027
€6,999.00
Options
S / 154-169 cm
Out of stock
€6,999.00
Amflow
Amflow PX Carbon Pro 12V 700 Wh DJI 150 Nm 29''/27.5'' Full-Suspension Electric Mountain Bike, Gray, 2026
€9,999.00
Options
M / 162-177 cm
Delivery today from 02h
€9,999.00
BH
BH ilynx+DL Enduro Carbon 9.8 800 Wh DJI 150 Nm 29'' Full-Suspension Electric Mountain Bike, Gray, 2026
€8,999.90
Options
L / 182-193 cm
Out of stock
€8,999.90
M / 170-182 cm
Out of stock
€8,999.90
S / 149-170 cm
Out of stock
€8,999.90
XL / 192-205 cm
Out of stock
€8,999.90
BH
BH ilynx+DL Enduro Carbon 9.6 800 Wh DJI 150 Nm 29'' Full-Suspension Electric Mountain Bike - Gray 2026
€6,999.90
Options
L / 182-193 cm
Delivery today from 02h
€6,999.90
M / 170-182 cm
Out of stock
€6,999.90
S / 149-170 cm
Delivery from monday
€6,999.90
XL / 192-205 cm
Out of stock
€6,999.90
BH
BH ilynx+DL Enduro Carbon 9.7 800 Wh DJI 150 Nm 29'' Full-Suspension Electric Mountain Bike - Gray 2026
€7,999.90
Options
L / 182-193 cm
Out of stock
€7,999.90
M / 170-182 cm
Out of stock
€7,999.90
S / 149-170 cm
Out of stock
€7,999.90
XL / 192-205 cm
Out of stock
€7,999.90
Mondraker

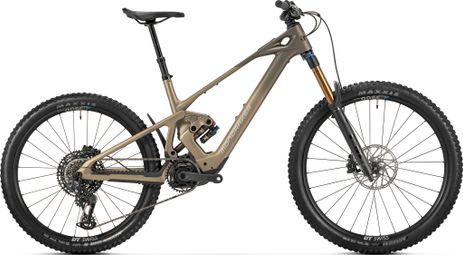

Mondraker Zendit RR Full-Suspension Electric Mountain Bike with SRAM 12-speed drivetrain, 800 Wh battery, Avinox 130/150 Nm motor, MX (29/27.5-inch) wheels, Beige, 2027
