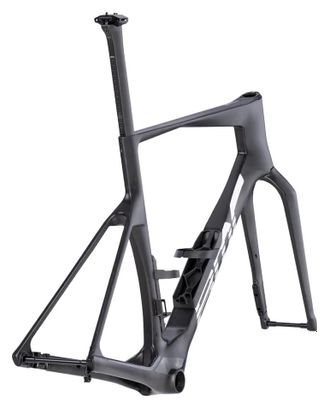

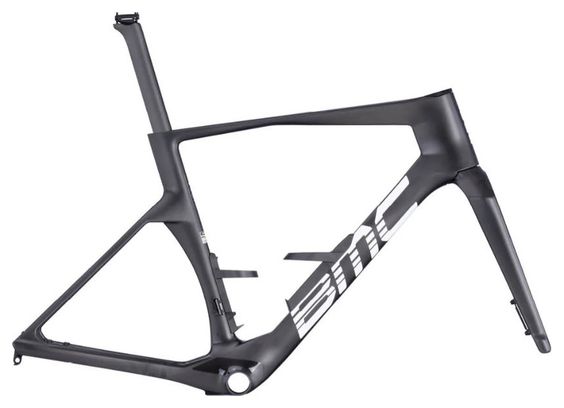

Kit Cadre / Fourche BMC BMC Teammachine R 01 Four Noir 2026 BMC
€3,999.99
RRP €4,999.00
€3,999.99
RRP €4,999.00
€3,999.99
RRP €4,999.00
€3,999.99
RRP €4,999.00
€3,999.99
RRP €4,999.00
€3,999.99
RRP €4,999.00
Save with our perfect combination
Save up to with our perfect combination
Our perfect combination
Add the pack
Your item
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
BMC 's Teammachine R frame is designed for a special category of cyclist. Forged on the mountain passes of the Swiss Alps. Hardened by the cobbles of the spring Classics. Perfected in the echelons of the Grand Tours. Developed in collaboration with Red Bull Advanced Technologies, the Teammachine R is the essence of every podium, every trophy, every solo victory, every sprint in which BMC has participated... It redefines the terms of a racing bike's capabilities. It is the uncompromising weapon, indispensable in competition, when every watt and every pedal stroke counts.
Product benefits :
- The alliance between Formula 1 technology and the precision of Swiss cycling.
- Premium carbon frame and fork.
Details :
| Frame | Carbon: Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle |
| Forks | Carbon: Teammachine R 01 Premium Carbon, ICS Technology, Stealth Cable Routing, Stealth Dropout Design, Flat Mount Disc, 12x100 mm Thru-Axle |
| Seat post | Teammachine R 01 Premium Carbon Seatpost | 10mm Offset |
| Weight | 1.810 kg in size 54 with all accessories |
Geometries :
| Frame size (cm) | 47 | 51 | 54 | 56 | 58 | 61 |
| Seat tube (mm) | 418 | 463 | 499 | 519 | 541 | 570 |
| Top tube (mm) | 522 | 532 | 552 | 562 | 582 | 598 |
| Base length (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| Steering bushing (mm) | 108 | 133 | 149 | 165 | 185 | 211 |
| Steering angle (°) | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| Seat tube angle (°) | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| Wheelbase (mm) | 968 | 986 | 989 | 999 | 1015 | 1030 |
| Stack (mm) | 504 | 528 | 548 | 563 | 582 | 608 |
| Reach (mm) | 368 | 378 | 387 | 393 | 402 | 409 |
| Handlebar width (mm) | 400 | 420 | 420 | 420 | 420 | 440 |
| Fork offset (mm) | 48 | 48 | 43 | 43 | 43 | 43 |
| Crank length (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
MORE INFORMATION
Features
| Bottom bracket mount | PressFit Shimano (BB86/91/92...) |
| Frame Caliper Mount | Flat Mount |
| Seat Clamp | Integrated |
| Diameter (mm) | Aero |
