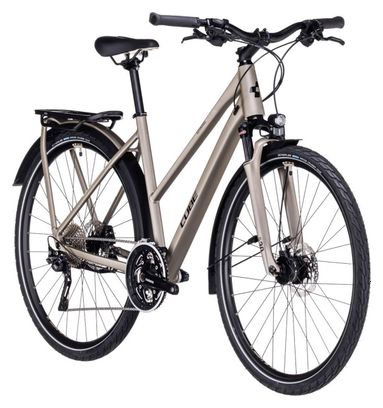

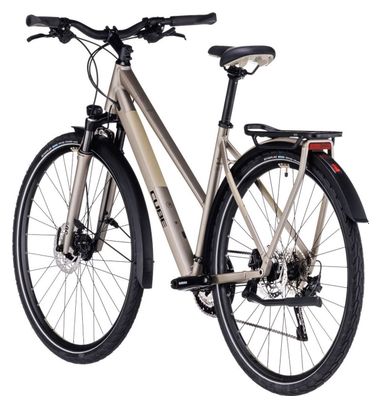

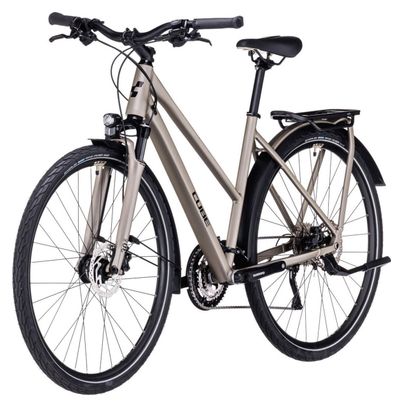

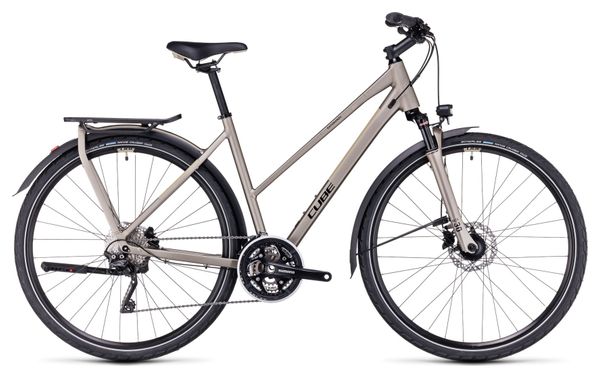

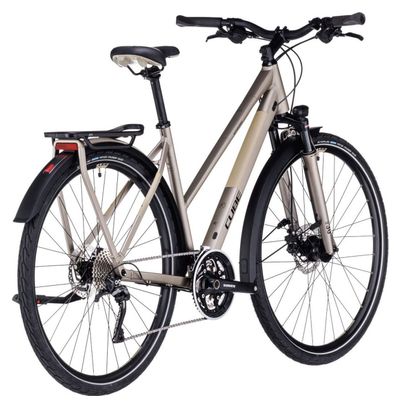

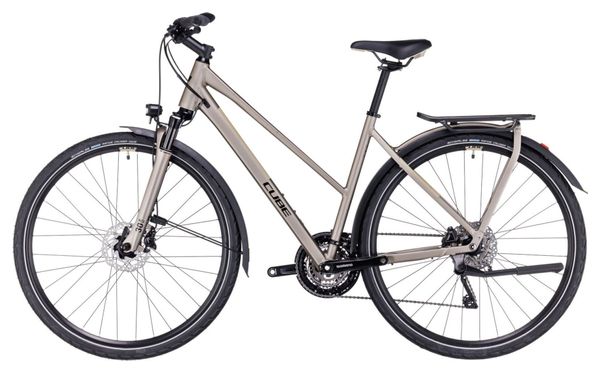

Cube Kathmandu Pro Trapeze Trekking Bike Shimano Deore/XT 10S 700 mm Flash Stone Beige Grey 2023
Cube Kathmandu Pro Trapeze Trekking Bike Shimano Deore/XT 10S 700 mm Flash Stone Beige Grey 2023
Cube Kathmandu Pro Trapeze Trekking Bike Shimano Deore/XT 10S 700 mm Flash Stone Beige Grey 2023
Cube Kathmandu Pro Trapeze Trekking Bike Shimano Deore/XT 10S 700 mm Flash Stone Beige Grey 2023
Cube Kathmandu Pro Trapeze Trekking Bike Shimano Deore/XT 10S 700 mm Flash Stone Beige Grey 2023
Cube Kathmandu Pro Trapeze Trekking Bike Shimano Deore/XT 10S 700 mm Flash Stone Beige Grey 2023
Cube Kathmandu Pro Trapeze Trekking Bike Shimano Deore/XT 10S 700 mm Flash Stone Beige Grey 2023
Cube Kathmandu Pro Trapeze Trekking Bike Shimano Deore/XT 10S 700 mm Flash Stone Beige Grey 2023
Cube Kathmandu Pro Trapeze Trekking Bike Shimano Deore/XT 10S 700 mm Flash Stone Beige Grey 2023
Cube Kathmandu Pro Trapeze Trekking Bike Shimano Deore/XT 10S 700 mm Flash Stone Beige Grey 2023
Cube

Cube Kathmandu Pro Trapeze Trekking Bike Shimano Deore/XT 10S 700 mm Flash Stone Beige Grey 2023 Cube

€1,399.00

€1,399.00

€1,399.00

Frame size / rider height

Size Guide

Choose your option

46 cm / 157-166 cm

Out of stock

50 cm / 164-172 cm

Out of stock

54 cm / 170-178 cm

Out of stock

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

similar products

Description

What size do you need?


Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride

Measure yourself accurately

To get started, measure your height and use the size chart available on each product description.

What to do if you are in between bike sizes?

If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.

Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
  • If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
  • On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.

Still confused? Contact us

Please note that specifications are subject to change without notice, based on component availability and other factors.

Classic elegance is the name of the game for the Cube Kathmandu's Trapeze frame. Its Integrated Carrier 3.0 is designed to work seamlessly with our Acid mudguard. We've fitted a flat mount for the rear disc brake – it also accommodates the kickstand – and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also equipped the rear end with a thru axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With internal cable routing to keep your gear shifts smooth with minimal maintenance, we reckon we've thought of everything. Just don't forget your toothbrush.

We designed the Cube Kathmandu Pro to have everything you need and nothing that you don't. From the elegant simplicity of the Integrated Carrier to the full-length mudguards, front and rear lights and Cube FM kickstand, it's the practical everyday companion that's rugged enough to take on longer trips, too. A SR Suntour air suspension fork makes even the roughest roads smoother, for a more comfortable ride. Shimano's XT 3x10 gears give you the range you need to make light work of any route. And Shimano hydraulic disc brakes ensure you can always stop safely, no matter what you're carrying or what the weather is throwing your way. Urban jungle or distant horizon, the Kathmandu Pro has got your back.

Main features:

  • Aluminium Superlite frame.
  • Shimano Deore/XT 3x10-speed drivetrain.
  • Shimano MT200/UR300 hydraulic disc brakes, 160/160 mm.

Features:

Frame Aluminium: Trapeze, Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted, Width tire maximum: 48 mm
Fork SR Suntour NCX D LO Air, Lockout, 63 mm travel
Shifters Shimano Deore SL-M6000, Rapidfire-Plus, 3x10-speed
Front Derailleur Shimano Deore FD-T6000, Top-Swing, 31.8 mm
Rear Derailleur Shimano XT RD-T8000, 10-speed
Cassette Shimano CS-HG500, 11-34T
Chain KMC X10
Crankset Shimano FC-T551, Hollowtech II, 175 mm, Integrated BB, Chainguard, 48/36/26T
Bottom Bracket Shimano BB-MT501, 68 mm BSA
Brakes Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Wheelset Cube ZX20, 32H, Disc
Hubs Front: Shimano DH-3D37, Hub Dynamo, QR, Centerlock / Rear: Shimano FH-MT400, 12 mm, Centerlock
Tires Schwalbe Range Cruiser, Active, 47-622, 28 x 1.75"
Handlebar Cube Comfort Trail Bar, 660 mm
Grips Acid Travel Comfort
Stem Cube Performance Stem Pro, 31.8 mm
Headset VP Integrated, Top 1 1/8", Bottom 1 1/2"
Pedals Acid PP Trekking
Saddle Natural Fit Sequence Comfort
Seatpost Cube Performance Post, 27.2 mm

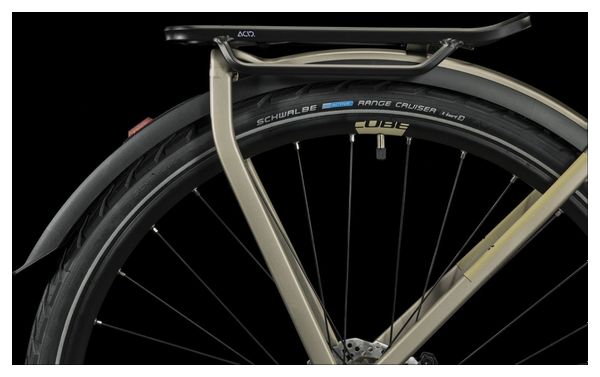

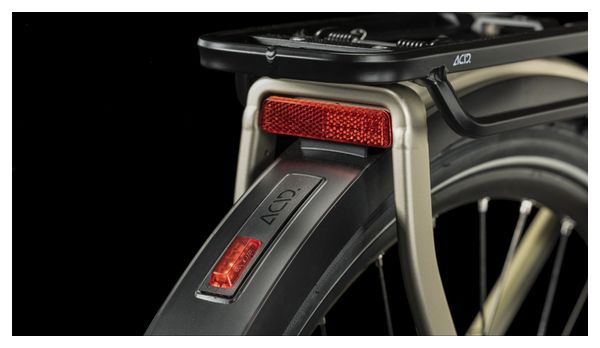

Accessories Cube Shiny 50 Front Light / Acid Mudguard Rear Light PRO-D, 6V, AC / Acid FM Pure Kickstand / Acid 56 Integrated Carrier 3.0 Mudguards / Ring Bell / Acid Integrated Carrier 3.0, Cube Adapter Compatible
Weight 15.7 kg
Weight Limit 115 kg: the maximum system weight consists of the bike, rider and equipments
Color flashstone´n´black
Reference 648310

Geometries:

Frame Size (cm) 46 50 54
Seat Tube (mm) 460 500 540
Top Tube (mm) 563 578 593
Chain Stays (mm) 455 455 455
Head Tube Length (mm) 153 153 188
Head Tube Angle (°) 70.5 71 71
Seat Tube Angle (°) 73 73 73
Wheelbase (mm) 1068 1078 1094
Stack (mm) 641 643 676
Reach (mm) 367 382 386

MORE INFORMATION

See all the Cube Kathmandu

Features

Gender Men
Women
Wheel Size 700mm
Groupset Shimano Deore XT
