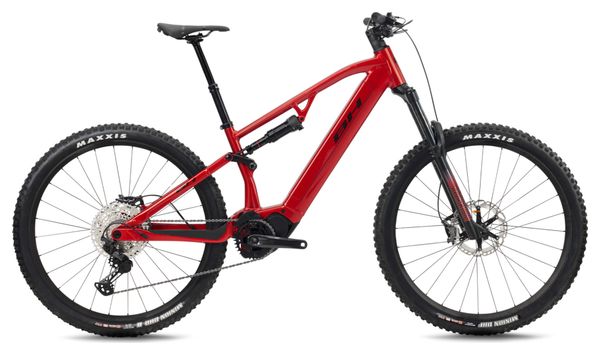

BH AtomE Lynx Pro 8.2 Shimano Deore 11V 720 Wh 29'' Red All-Suspension Electric Mountain Bike
BH
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
Note : Please note that specifications are subject to change without notice, based on component availability and other factors.
The AtomE Lynx Pro 8.2, a 140mm EMTB with maximum power to "roll" on any trail.
A geometry you can count on when the going gets tough.
ATOMe bikes feature a lighter, quieter and more compact Shimano ep6 motor, but with just as little pedaling resistance as the ep801. Ideal for use on trails or urban terrain, it guarantees natural pedaling and a maximum torque of 85 nm.
Access to the battery from the top of the downtube offers excellent ergonomics.
The battery, housed in the downtube with the smallest cross-section on the market, offers a capacity of 720 Wh and a range of up to 155 KM. Charging, which quickly reaches 80% of the battery's maximum capacity, can be done either via a port integrated into the frame or by connecting directly to the battery.
The split pivot suspension system allows you to tackle any terrain in any condition. Thanks to the "antisquat", which guarantees pedaling efficiency, and the "brake-squat", which ensures optimal braking.
Compact and customizable, it offers different profiles and adapts to a wide variety of hangers and cabling. Its compact, easy-to-read screen provides a dynamic display when changing assistance levels.
Product highlights :
- Aluminum frame with 140 mm travel.
- Shimano Deore transmission, 1x11 speeds.
- Shimano MT420 hydraulic disc brakes, 4 pistons, 203/203 mm.
Details :
| Frame | Aluminum: 140 mm Full Suspension Alloy 29" internal cable routing |
| Forks | RockShox Recon RL 150mm 15QR |
| Shock absorber | RockShox Deluxe Debonair |
| Motor | Shimano EP6, 85 Nm, 25 km/h |
| Battery | 720Wh |
| Display | Shimano EN600 |
| Derailleur lever | Shimano Deore, 1x11 speeds |
| Rear derailleur | Shimano Deore, 11 speeds |
| Cassette | Shimano CSM5100, 11 speeds, 11-51 Teeth |
| Chain | Shimano HG60 |
| Crankset | Shimano 34 teeth -165mm |
| Brakes | Shimano MT420, 4 pistons, 203/203mm |
| Wheels | BH Lite Mach1 Trucky 30 |
| Tires | Maxxis Minion TP120 EXO TR 29x2.5/2.4" tires |
| Handlebars | BH MTB Alloy Riser 35 780mm |
| Handlebars | Ergon GE10 |
| Stem | BH Ahead |
| Headset | Acros AZX-578 BL |
| Saddle | Prologo Proxim W450 Stn |
| Seat post | Kind Shock RAGEI |
| Seat clamp | Alloy |
| Reference | ES824 |
Geometries :
| Frame size | S | M | L |
| Wheel size (inches) | 29 | 29 | 29 |
| Seat tube (mm) | 400 | 400 | 440 |
| Top tube (mm) | 580 | 605 | 623 |
| Chain bases (mm) | 464 | 464 | 464 |
| Head tube length (mm) | 120 | 130 | 140 |
| Head tube angle (°) | 66 | 66 | 66 |
| Seat tube angle (°) | 74.5 | 74.5 | 74.5 |
| Stack (mm) | 624 | 633 | 642 |
| Reach (mm) | 427 | 455 | 475 |
MORE INFORMATION
See the whole range of E-Bikes available.
| 1 Bicycle bought = 1 Tree planted. Alltricks is committed to the planet. Read more |
Features
| Gender |
Women Men |
| Fork Travel | 150 |
| Shock Travel | 140 |
| Frame material | Alloy |
| Groupset | Shimano Deore M5100 11V |
| Year | 2024 |
