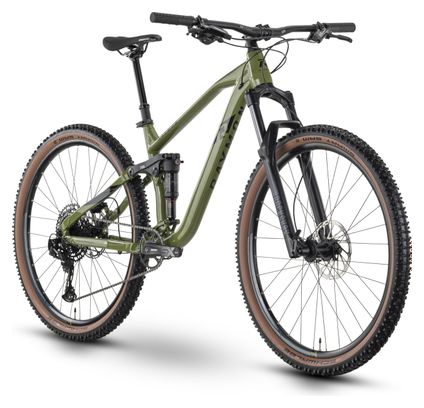

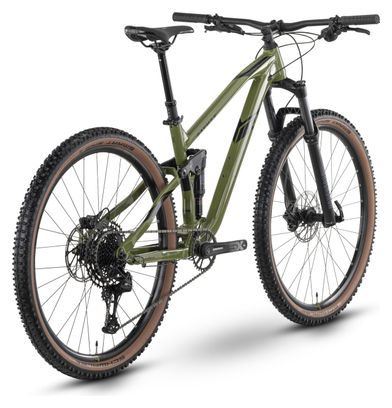

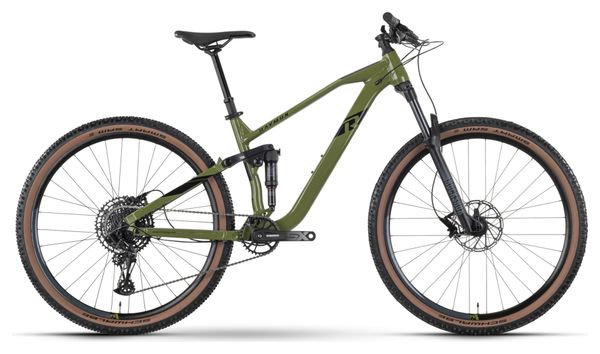

Raymon FullRay 120 4.0 Sram SX Eagle 12V 29'' Green 2023
R Raymon
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
Note : Please note that specifications are subject to change without notice, based on component availability and other factors.
Whether it's alpine cross, single-track or steep climbs: our All Mountain bikes are unbeatable. Like you, they're comfortable on any terrain and rugged enough to handle demanding rides.
Long travel and responsiveness make mountain bikers' hearts beat faster. Our Fully easily absorb irregularities such as rocks or roots, so you can concentrate fully on your trail.
For even better handling, we've equipped our two top models with a carbon main frame, which is only slightly heavier and extremely stable despite its low weight. Thanks to the compact geometry and the particularly steep top tube, our FullRays offer an extremely comfortable seating position and a low offset height that allows you to become one with your bike. The 29" tires provide better grip, greater stability and better rollover behavior, which makes them significantly safer, especially on descents.
Product advantages:
- 6061 aluminum frame with 120 mm of travel.
- Transmission Sram SX Eagle 1x12 Speeds.
- Hydraulic disc brakes Sram Level T, 180/180 mm.
Details :
| Frame | Aluminum: 29", 6061 alloy, Boost, 120 mm |
| Fork | RockShox Recon Silver RL, Solo Air, Air, 130 mm, tapered |
| Shock | RockShox Deluxe Select, Air, 210x50 mm |
| Derailleur shifter | Sram SX Eagle, 1x12-speed |
| Rear derailleur | Sram SX Eagle, 12-speed |
| Cassette | Sram PG-1210, 11-50 teeth |
| Chain | Sram SX Eagle, Powerlock |
| Crankset | Sram SX Eagle, 32 teeth |
| Bottom bracket | Sram DUB, BSA73, PowerSpline, 118 mm |
| Brakes | Sram Level T, 2 pistons, hydraulic disc brake, Sram Centerline, 180/180 mm, 6 holes |
| Wheels | Mach 1 TRAXX, Eyeleted, Tubeless Ready |
| Hubs | Front: R Raymon DA210F, 6 holes, 15x110 mm / Rear: R Raymon DA210R, 6 holes, 12x148 mm |
| Tires | Schwalbe Smart Sam, Active, 57-622, 29x2.25 |
| Handlebars | R Raymon Riser 31.8 mm, 780 mm, Sweep: 6 °, Rise: 15 mm |
| Handles | R Raymon MTB, Screw-on grips |
| Stem | R Raymon 31.8, 7 °, Ahead |
| Saddle | R Raymon MTB |
| Seatpost | R Raymon, 34.9 mm, Telescopic seatpost (Dropper Post) |
| Weight | 16.2 kg |
Geometries :
| Frame size | XS | S | M | L |
| Wheel size (inches) | 29 | 29 | 29 | 29 |
| Seat tube (mm) | 370 | 420 | 470 | 520 |
| Top tube (mm) | 560 | - | 605 | 627 |
| Base length (mm) | 455 | 455 | 455 | 455 |
| Steering sleeve (mm) | 100 | 110 | 120 | 130 |
| Steering angle (°) | 66 | 67 | 66 | 66 |
| Seat tube angle (°) | 77 | 77 | 77 | 77 |
| Wheelbase (mm) | 1170 | 1194 | 1218 | 1242 |
| Stack (mm) | - | - | - | - |
| Reach (mm) | 420 | 440 | 460 | 480 |
MORE INFORMATION
| 1 Bicycle bought = 1 Tree planted. Alltricks is committed to the planet. Read more |
Features
| Gender |
Men Women |
| Fork Travel | 130 |
| Shock Travel | 120 |
| Frame material | Alloy |
| Groupset | Sram SX Eagle 12S |
| Year | 2023 |
| Poids | 16.20 |
