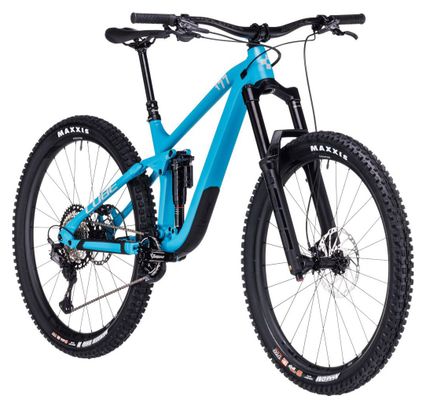

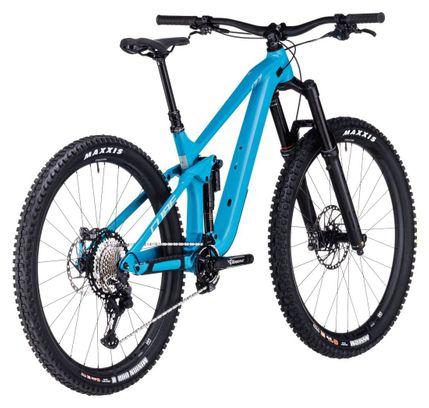

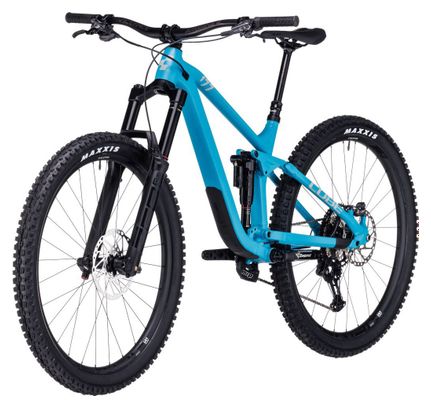

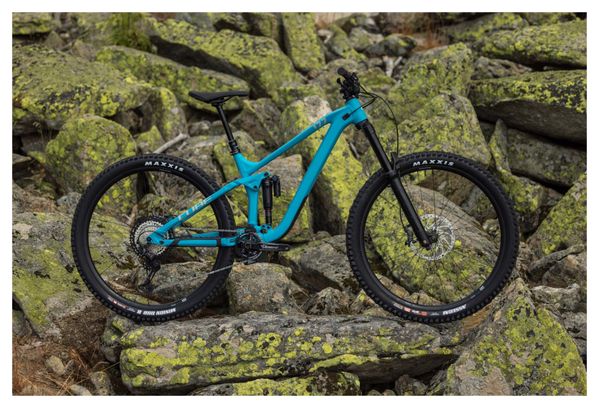

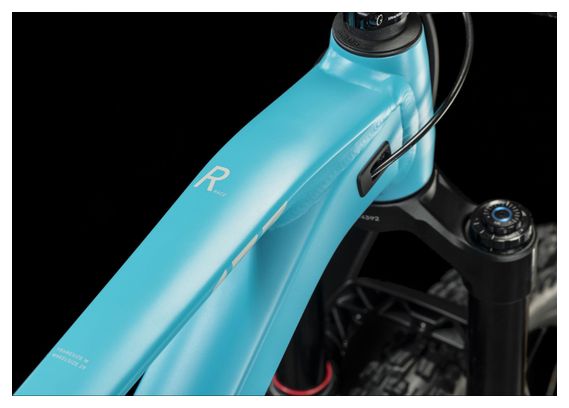

Cube Stereo One77 Race Full Suspension MTB Shimano XT 12S 29'' Bondi Blue
Cube Stereo One77 Race Full Suspension MTB Shimano XT 12S 29'' Bondi Blue
Cube Stereo One77 Race Full Suspension MTB Shimano XT 12S 29'' Bondi Blue
Cube Stereo One77 Race Full Suspension MTB Shimano XT 12S 29'' Bondi Blue
Cube Stereo One77 Race Full Suspension MTB Shimano XT 12S 29'' Bondi Blue
Cube Stereo One77 Race Full Suspension MTB Shimano XT 12S 29'' Bondi Blue
Cube Stereo One77 Race Full Suspension MTB Shimano XT 12S 29'' Bondi Blue
Cube Stereo One77 Race Full Suspension MTB Shimano XT 12S 29'' Bondi Blue
Cube Stereo One77 Race Full Suspension MTB Shimano XT 12S 29'' Bondi Blue
Cube Stereo One77 Race Full Suspension MTB Shimano XT 12S 29'' Bondi Blue

They love it!

★★★★★
★★★★★
1 Reviews
Cube
★★★★★
★★★★★
- 1 Reviews

Cube Stereo One77 Race Full Suspension MTB Shimano XT 12S 29'' Bondi Blue Cube

€1,999.99

€1,999.99

€1,999.99

€1,999.99

Frame size / rider height

Size Guide

Choose your option

M / 164-179 cm

Out of stock

L / 175-188 cm

Out of stock

XL / 184-195 cm

Out of stock

XXL / 192-200 cm

Out of stock

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

similar products

Description

What size do you need?


Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride

Measure yourself accurately

To get started, measure your height and use the size chart available on each product description.

What to do if you are in between bike sizes?

If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.

Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
  • If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
  • On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.

Still confused? Contact us
Buying guide

Please note that specifications are subject to change without notice, based on component availability and other factors.

Big wheels, big travel, big fun. The Cube Stereo One77's frame is based on our proven four-bar suspension design and Agile Trail Geometry, for superb suspension performance and dependable handling in a huge range of trail conditions. With a flip chip and two mounting points for air and coil, the rear suspension setup is designed to be progressive – and there's an angle adjustment insert so you can tweak the geometry to suit your own preference. The frame is equally happy with an air or coil shock, and covered bearings, internally routed cables and a threaded bottom bracket mean you can spend more time shredding and less time wrenching. Simply put, it redefines what a big-travel, big-wheeled bike can do.

Those people who say you can't have it all? They've obviously never seen the Cube Stereo One77 Race. Its precise handling and boulder-swallowing precision starts with the plush, accurate RockShox Zeb Ultimate fork and Super Deluxe Ultimate shock. Mountain-flattening ability is added with Shimano's reliable XT 1x12 gears and a RaceFace Turbine crank. Matching Shimano XT hydraulic disc brakes with Newmen Evolution wheels wrapped with grippy Maxxis Assegai and Minion DHR II tires ensure you're always in complete control. And there's a remote dropper post too, so you can show the trails who's boss.

Main features:

  • Move mountains with the Stereo One77.
  • All mountain ability plus bike park agility equals miles of smiles.
  • Flip-Chip system for suspension customisation.
  • Adjustable headset angle.
  • HPA Advanced Hydroform Aluminium frame, 170 mm travel.
  • Shimano XT 1x12-speed drivetrain.
  • Shimano XT hydraulic disc brakes, 203/180 mm.

Features:

Frame Aluminium: HPA Advanced Hydroform, ATG, ETC 4-Link, Air/Coil Shock Mount Flip-Chip, ISCG Mount, AXH, 170 mm travel
Fork RockShox ZEB Ultimate RC2, Tapered, Boost 15x110 mm, 170 mm travel

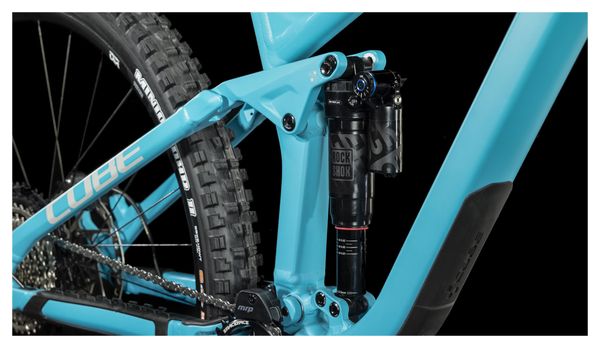

Rear Shock RockShox Super Deluxe Ultimate, 230x65 mm, Rebound & Low Speed Compression Adjust w/ 2- Pos. Lever / Shock hardware: 40x8 mm (Top), 28x8 mm (Bottom)
Shifter Shimano XT SL-M8100-IR, Direct Attach, 1x12-speed
Rear Derailleur Shimano XT RD-M8100-SGS, ShadowPlus, 12-speed
Cassette Shimano XT CS-M8100, 10-51T
Chain Shimano CN-M6100
Chain Guide MRP SXg Chain Guide

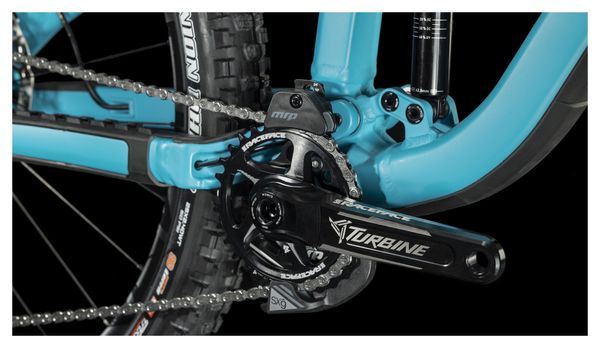

Crankset Race Face Turbine, 170 mm, 30T
Brakes Shimano XT BR-M8120, Hydr. Disc Brake, (203/180)
Wheelset Newmen Evolution SL A.30, 28/28 Spokes, Boost 15x110/12x148 mm, Tubeless Ready
Tires Front: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 29x2.5" WT / Rear: Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 29x2.4" WT
Handlebar Race Face Turbine R 35, 800 mm
Grips SDG Thrice
Stem Race Face Turbine R 35
Headset Acros Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for Angle Adjustment
Saddle SDG Bel Air V3 Lux Alloy
Seatpost Cube Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6 mm
Weight 15.6 kg
Weight Limit 115 kg: the maximum system weight consists of the bike, rider and equipments
Color bondiblue´n´grey
Reference 656200

Geometries:

Frame Size M L XL XXL
Wheel Size (inches) 29 29 29 29
Seat Tube (mm) 420 420 470 470
Top Tube* (mm) 583 / 585 604 / 605 627 / 629 655 / 656
Chain Stays (mm) 435 435 435 435
Head Tube Length (mm) 103 105 115 135
Head Tube Angle* (°) 63.8 / 64.4 63.8 / 64.4 63.8 / 64.4 63.8 / 64.4
Seat Tube Angle* (°) 76.7 / 76.5 76.7 / 76.5 76.7 / 76.5 76.7 / 76.5
Wheelbase* (mm) 1223 / 1216 1244 / 1236 1268 / 1261 1297 / 1289
Stack* (mm) 626 / 627 627 / 629 636 / 638 656 / 658
Reach* (mm) 446 / 444 466 / 464 486 / 484 506 / 504
Stem Length (mm) 40 40 50 50
Seatpost Length (mm) 480 480 480 480
Seatpost Travel (mm) 150 150 150 150

*Angle Set. Flip-Chip technology. The adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it.

MORE INFORMATION

See all the Cube Stereo

See our best MTBs.

See all Cube mountain bikes available.

Check out our Enduro MTB Range

Download the manual in PDF format

Features

Frame material Alloy
Groupset Shimano Deore XT
