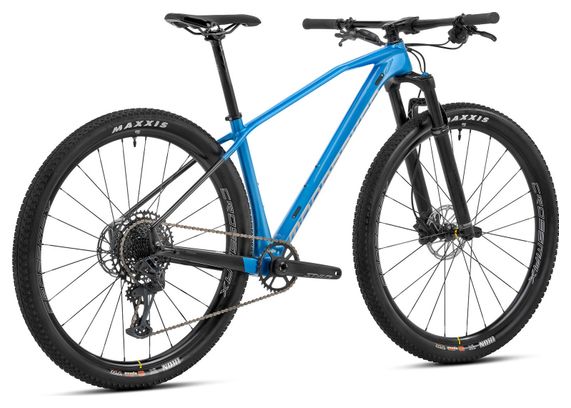

Mondraker Chrono Carbon R Hardtail MTB Sram GX/NX Eagle 12S 29'' Blue
Mondraker
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
Note : Please note that specifications are subject to change without notice, based on component availability and other factors.
The Mondraker Chrono Carbon R, as well as being all of those things, is comfortable too thanks to its STEALTH FULL CARBON frame. It’s an ideal mix if what you’re after is fun, either in a one day event, a stage race or, logically, for exploring the hills or dales. Its agility will let you enjoy the ride, however far you ride, while FORWARD GEOMETRY lets you do it optimally and safely. Its components were chosen with the same objective: a Fox 32 Float fork with 100 mm of travel, Mavic Crossmax wheels and SRAM GX/NX Eagle 12-speed drivetrain all finished off with components by ONOFF to keep things rolling.
Main features:
- Stealth full Carbon frame.
- Sram GX/NX Eagle 1x12-speed drivetrain.
- Sram Level T hydraulic disc brakes, 160/160 mm.
Features:
| Frame | Carbon: Chrono 29 Stealth full Carbon, XC Forward Geometry, 73 mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148 mm rear axle, Comfort Flat chainstays (Flatstays) design, Mondraker M068 Derailleur hanger |
| Fork | Fox 32 29 Float GRIP EVOL Rhythm, 100 mm travel, tapered steerer tube, Boost 15x110 mm axle, offset 44 mm. Settings: remote 2pos Push-unlock, low-speed rebound, air preload |
| Shifter | Sram Trigger NX Eagle, X-Actuation 1:1, 1x12-speed |
| Rear Derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, X-Actuation 1:1, 12-speed |
| Cassette | Sram XG-1230, 11-50T |
| Chain | Sram SX Eagle, Powerlock |
| Crankset | Truvativ Stylo 6K Eagle, Boost, DUB axle, Direct Mount chain ring, 34T, steel, X-SYNC 2, 170 mm (S), 175 mm (M, L, XL) |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73 mm |
| Brakes | Sram Level T, Hydr. Disc Brake, 2 piece caliper, Centerline 160 mm IS 6 bolts one-piece rotor |
| Wheelset | Mavic Crossmax 29, 25 mm internal width, welded rim, hookless, tubeless ready, 24 spokes, Mavic straight-pull double butted, contactless lacing spokes |
| Hubs | Front: Mavic, Boost 15x110 mm, IS 6 bolts / Rear: Mavic, Boost 12x148 mm, ID360 Ratchet system, IS 6 bolts |
| Tires | Maxxis Ikon, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead, 29x2.20" |
| Handlebar | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8 mm, width: 760 mm, 9º backsweep, 0º upsweep, 31.8 mm barbore |
| Grips | Onoff Twin, 1lock-on, 135 mm |
| Stem | MDK, 6061 T6 Alloy, 31.8 mm barbore, rise: +/-5º, 60 mm (S), 70 mm (M), 80 mm (L), 90 mm (XL) |
| Headset | Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Saddle | Mondraker XC Series, steel rail |
| Seatpost | Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2 mm, length 400 mm |
| Weight | 10.8 kg |
Geometries:
| Frame Size | S | M | L | XL |
| Wheel Size (inches) | 29 | 29 | 29 | 29 |
| Seat Tube (mm) | 395 | 430 | 470 | 520 |
| Top Tube (mm) | 590 | 610 | 630 | 650 |
| Chain Stays (mm) | 430 | 430 | 430 | 430 |
| Head Tube Length (mm) | 85 | 90 | 100 | 115 |
| Head Tube Angle (°) | 70 | 70 | 70 | 70 |
| Seat Tube Angle (°) | 72 | 72 | 72 | 72 |
| Wheelbase (mm) | 1086 | 1106 | 1127 | 1148 |
| Stack (mm) | 605 | 610 | 619 | 632 |
| Reach (mm) | 411 | 430 | 447 | 463 |
MORE INFORMATION
| 1 Bicycle bought = 1 Tree planted. Alltricks is committed to the planet. Read more |
Features
| Gender | Men |
| Fork Travel | 100 |
| Frame material | Carbon |
| Groupset | Sram GX/NX Eagle 12S |
| Year | 2023 |
| Pratique | Cross Country |
| Poids | 10.80 |
