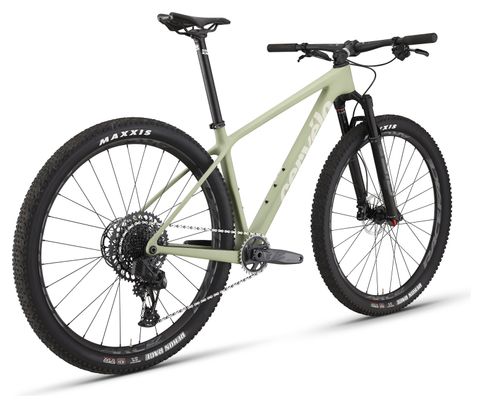

Cervélo ZHT-5 Sram GX Eagle AXS 12V 29'' Green 2023
Cervélo ZHT-5 Sram GX Eagle AXS 12V 29'' Green 2023

They love it!

Cervélo ZHT-5 Sram GX Eagle AXS 12V 29'' Green 2023

Cervelo

Please select

Taille cadre / taille cycliste

M / 165-175 cm

Out of stock

L / 175-185 cm

Out of stock

Size guide

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Non available

We will contact you by e-mail when this item is back in stock.

Choose an option

Description

What size do you need?


Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride

Measure yourself accurately

To get started, measure your height and use the size chart available on each product description.

What to do if you are in between bike sizes?

If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.

Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
  • If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
  • On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.

Still confused? Contact us

Note : Please note that specifications are subject to change without notice, based on component availability and other factors.

When the Jumbo-Visma team decided it was time to tackle XCO racing, they turned to us to provide the answer. The ZHT-5 marks a new era for the team and Cervélo, as we will be racing together. Our engineering know-how has already proven itself in cyclocross (R5-CX) and gravel racing (Áspero). Now we've taken it to the next level and designed a mountain bike worthy of the Cervélo name.

The ZHT-5 is a Cervélo through and through: fast, efficient and fun to ride. The 69-degree head tube angle, modern reach and short chainstays combine to make it a stable bike at high speeds and nimble enough when you need to elbow your way through the pack. There's enough clearance in the cockpit to be comfortable on the handlebars, whether you're loading the front end into a hard-to-clear hairpin on the way up or getting behind the seat to save time on the way down.

Our mantra is to make riders faster. And to do that, we need to create bikes that turn power into acceleration with the best possible efficiency. And nothing is more efficient than a hardtail. But power is nothing without control, which is why we focused on creating a fast competition XC bike that handles with confidence in technical sections, making you want to ride even faster.

Weighing in at just 907 grams (size Medium), the ZHT-5 is a featherweight boxer with top-end speed that only a hardtail can deliver. Decades of building frames designed for the world's strongest sprinters have resulted in a super stiff mountain bike that propels you forward without compromising weight or riding feel.

Product Highlights:

  • Speed first.
  • Stiff, light and ready to fight.
  • Modern geometry for modern riders.
  • Carbon frame, with Rockshox SID SL Select fork with 100 mm of travel.
  • Sram GX Eagle AXS 1x12 speed transmission.
  • Sram Level TL hydraulic disc brakes, 160/160 mm.

Details:

Frame Carbon: 907g ZHT-5 carbon, Cervelo Thru-axle, 12x148
Fork Rockshox SID SL Select, DebonAir spring, Charger RL damper, tapered steerer, 15x110mm, Maxle Stealth, 44mm offset, 100mm travel
Derailleur shifter Sram GX Eagle AXS, 1x12 speed
Rear derailleur Sram GX Eagle AXS, 12 speed
Cassette Sram Eagle XG-1275, 10-52 teeth
Chain Sram GX Eagle, 12 speed
Crankset Sram GX Eagle, 32T, Boost 148 DUB
Bottom bracket Sram DUB, BSA 73 mm
Brakes Sram Level TL, hydraulic disc
Wheels Front wheels: Race Face ARC Offset 27, 27mm IW, E*thirteen TRS Race TC, 15x110mm, 24H, 6 bolt, tubeless compatible
Rear: Race Face ARC Offset 27, 27mm IW, E*thirteen TRS Race, 12x148mm, XD freehub, 28H, 6 bolt, tubeless compatible
Tires Maxxis Rekon Race, EXO 120TPI, 29x2.4
Handlebars Race Face Effect Alloy, 35mm clamp, 760mm width, 10mm rise
Stem Race Face Aeffect Alloy, 35mm clamp, 6 degree
Saddle Prologo Dimension NDR T4.0
Seatpost Race Face Ride XC Alloy 30.9
Headset FSA IS2 1-1/2 x 1-1/2
Color Moss Khaki

Geometries :

Frame size S M L XL
Seat tube (mm) 377 433 485 519
Top tube (mm) 582 608 635 666
Base length (mm) 430 430 430 430
Steering sleeve (mm) 89 95 107 121
Steering angle (°) 69 69 69 69
Seat tube angle (°) 74 74 74 74
Wheelbase (mm) 1090 1116 1145 1177
Stack (mm) 606 612 623 636
Reach (mm) 409 433 457 484

MORE INFORMATION

1 Bicycle bought = 1 Tree planted. Alltricks is committed to the planet. Read more

Features

Gender Women
Men
Fork Travel 100
Frame material Carbon
Groupset Sram GX Eagle AXS 12V
Year 2023
Pratique Cross Country
