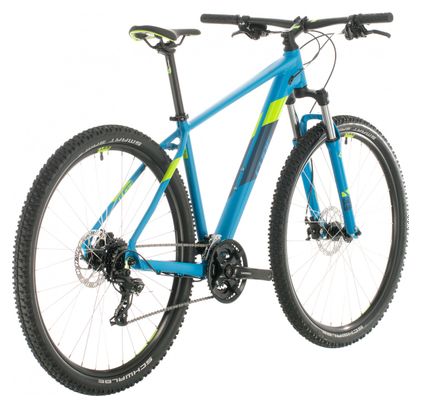

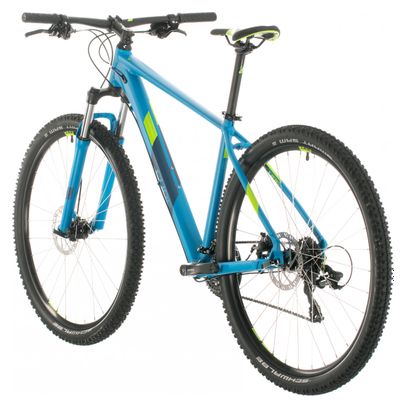

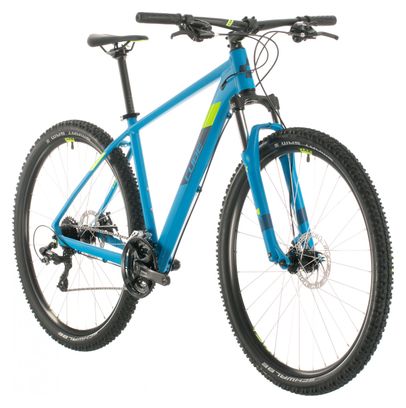

Cube MTB Hardtail Aim Shimano 8s 29'' Blue / Green 2020 Cube

Name: Cube MTB Hardtail Aim Shimano 8s 29'' Blue / Green 2020
Brand: Cube
SKU: 1326207

€459.00

Frame size / rider height

Size Guide

Choose your option

17 Inches / 165-174 cm

Out of stock

19 Pouces / 173-182 cm

Out of stock

21 Inches / 181-190 cm

Out of stock

Non available

We will contact you by e-mail when this item is back in stock.

I also want to receive other offers by e-mail

Non available

We will contact you by e-mail when this item is back in stock.

I also want to receive other offers by e-mail

Non available

We will contact you by e-mail when this item is back in stock.

I also want to receive other offers by e-mail

Description

Buying guide


	Please note that specifications are subject to change without notice, based on component availability and other factors.

If you're just starting out in the world of fat tyre adventuring, you'll need a bike you can rely on - a companion that'll be with you over every pebble, rock and root, no matter where your curiosity takes you. That's why we designed the Aim, using our expertise in aluminium frame building to create a bike that's perfectly suited to the job. You're assured a comfortable ride and safe, intuitive handling thanks to our Agile Ride Geometry and light, strong Aluminium Lite frame. Fitting fenders or a rack is quick and easy thanks to our cunningly hidden mounting system. Internal cable routing minimises maintenance and complements the Aim's clean looks and, of course, we selected reliable components to keep you riding rather than fiddling with adjustments. The Suntour fork adds comfort and control over the bumps, easy-shifting Shimano gears give you the confidence to tackle any hill with ease, and powerful Tektro mechanical disc brakes mean you're always in control. The result is a bike that'll inspire you to explore, wherever the trail leads you. And with our Size Split system, you're sure to find the Aim to fit you perfectly.

Main Features :

Aluminium Lite AMF Frame
Internal Cable Routing
SR Suntour Fork
Shimano Groupset

Details :

Frame	Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
Fork	SR Suntour XCE, 100mm
Rear Derailleur	Shimano RD-TX800, 8-Speed
Cassette	Shimano CS-HG200, 12-32T
Chain	KMC CU8.3
Bash	Shimano FC-TY501, 42x34x24T, 170mm
Brakes	Tektro MD-280, Mech. Disc Brake
Rims	CUBE SD20, 32H, Disc
Tires	Schwalbe Smart Sam, Active, 2.25
Handlebar	CUBE Rise Trail Bar, 680mm
Grips	CUBE Performance Grip
Stem	CUBE Performance Stem Pro, 31.8mm
Headset	CUBE FPH863, Semi-Integrated
Saddle	Natural Fit Venec Lite
Seat Post	CUBE Performance Post, 27.2mm
Seat Clamp	CUBE Varioclose, 31.8mm
Total Weight	14.5 kgs

Geometries :

Frame Size	14''	16''	17''	18''	19''	21''	23''
Seat Tube	355	405	420	450	470	515	565
Top Tube	545	561	575	585	595	615	635
Chainstay Lenght	427	427	450	427	450	450	450
Headtube	106	109	108.5	129	119.5	129.5	144.5
Direction Angle	69	69	69	69	69	69	69
Seat Tube Angle	74	73.5	73.5	73.5	73.5	73.5	73.5
Wheelbase	1051	1062	1104	1088	1125	1146	1167
BB Heihgt	-51.5	-51.5	-65	-51.5	-65	-65	-65
Reach	374	384	391	402	407	425	441
Stack	595	608	623	617	633	642	657
Rim Size	27.5	27.5	29	27.5	29	29	29
