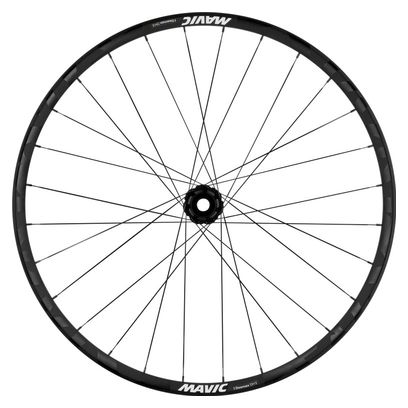

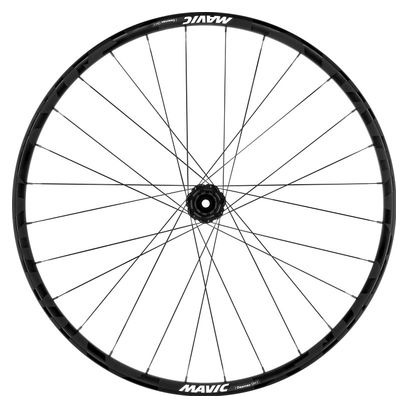

Mavic Deemax DH 29'' Wheelset | DH 20x110 - 12x157 mm | 6 bolts | 2024 Mavic

Designed at the foot of the French Alps and manufactured in our workshops, this exceptional wheel has been developed, tested and approved by Mavic DH team riders on the most demanding World Cup trails. The Mavic Deemax DH 29 features a 30mm wide welded rim specially designed to absorb heavy impacts, shocks and other vibrations, offering maximum confidence on rough terrain. The Deemax DH 29 makes aggression fun and vice versa.

Equipped with 28 welded steel J-Bent spokes, the Deemax DH offers the ideal balance between strength and flexibility for maximum performance on the most demanding descents. The spokes are designed to be easy to repair, so you can get back on the track quickly and avoid a tedious pit stop or workshop. Each wheel comes with two spare spokes for added peace of mind. To meet the demands of the DH track, the double Blackshield treatment offers two levels of resistance to stone impacts and scratches.

The wide rim shape makes it easy to fit DH tyres with cross-sections between 2.0" and 3.0", giving riders exceptional versatility in adapting their tyre configuration to the conditions. The ultimate downhill wheel, the Deemax DH 29 embodies Mavic heritage and innovation and is the ideal choice for all riders looking for optimum performance on the toughest descents. Choose total confidence on any terrain, with ease of maintenance and versatility to boot.

Main features:

• The wider (30mm) welded rim is designed to absorb heavy impacts.
• The 28 double-butted J-Bent spokes offer the best compromise between strength and dynamism.
• Double rim surface protection (Blackshield) preserves the aesthetics of the rim against stone impacts.

Features:

• ASTM category 5: Gravity riding with a focus on downhill.
• Maximum weight supported by the wheels: must not exceed 150 kg (bike weight included).
• Minimum tyre size: width 52 mm - pressure max. 2.95 bar / 43 psi.
• Maximum tyre size: width 76 mm - pressure max. 2.45 bar / 36 psi.

• Material: Maxtal.
• Drilling: traditional (28 holes).
• Internal width: 30 mm.
• Height: 22 mm.
• ETRTO size: 622x30TC.
• Tire type: UST Tubeless Ready.
• Use with Mavic Tubeless Tape.
• Profile: asymmetrical.
• Braking system: disc.

• Material: steel.
• Shape: angled, flat, constricted, antirot (front and rear).
• Nipples: steel, ABS.
• Number: 28 front and rear.
• Lacing: crossed 3 (front and rear).

• Body material: aluminum.
• Disc standard: 6-bolt.
• Axle material: aluminum.
• Axle size: 20x110 mm front / 12x157 mm rear.
• Bearing technology: QRM automatic setting, sealed cartridge.
• Freewheel technology: Instant Drive 360.

• Pair (29"): 2060 g.
• Front wheel (29"): 980 g.
• Rear wheel (29"): 1080 g.

• UST valve not mounted on wheel.
• UST rim tape mounted on wheel.
• Spare spokes (2 per wheel).
• User guide.
• Multifonction adjustment wrench (with the rear wheel).

Technology:

• Instant Drive 360 freewheel technology: The Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
• UST Tubeless technology: Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
• QRM Auto bearing preload technology: Qualité de Roulements Mavic Auto (QRM Auto). Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
