Note : Please note that specifications are subject to change without notice, based on component availability and other factors.

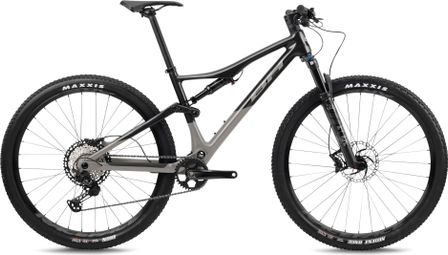

Always fast. Short distances. Long distances. On trails. On trial roads. Climbing. Downhill. It's what you're looking for in a dual XC and marathon bike. The Nº1 frame for the World Cup with David Valero and the BH Coloma team.
For the best balance between aggressiveness and stability.
Longer reach, 68º /67º steering angle and short 430 mm chainstays preserve agility on ascents and descents
Like all high-end BH frames, the Lynx Race is designed on the basis of HCIM (Core Internal Molding) carbon molding technology, which reduces frame and pushrod weight to a minimum, while using a greater quantity of high-modulus fibers to achieve a weight of 1,850 grams including shock absorber.
A new, oversized main suspension axle with self-centering bearings increases torsional rigidity by 30%.
Thanks to the use of the "Metric" standard, the Lynx Race offers 100 or 120 mm of travel, while maintaining the same level of antisquat, which guarantees pedaling efficiency, and brake-squat, which ensures optimal braking.
Your eyes see potholes and obstacles. But your body doesn't notice them. They're there, but not to slow you down. Now the obstacles are there to have fun with.
Take on that trail sitting on the saddle and feel how the wheel traces the terrain while you can concentrate on pedaling harder and harder.
Frame | Carbon: Lynx Race Carbon, PC Layup, Acros ICR, PF92, 148x12, UDH |
Forks | Fox 34SC Performance Push to Lock kabolt 100mm |
Shock absorber | Fox DPS Evol Performance Push to Lock, 190x40mm ,DCM,DRM,CMF |
Derailleur lever | Shimano XT 8100, 1x12-speed |
Rear derailleur | Shimano XT 8100, 12-speed |
Cassette | Shimano XT 8100, 10/52 Teeth |
Chain | Shimano XT |
Crankset | Shimano XT 8100, 34 teeth, 175mm |
Brakes | Shimano XT, 180/160 mm |
Wheels | BH Evo Alloy Tubeless, 25mm, 28H |
Tires | Front: Maxxis Ardent EXO Maxxis Ardent EXO 2.25 / Rear: Maxxis Ikon EXO 2.25 |
Handlebars | BH SL Top Flat 780mm, 10mm Rise |
Grips | BH SL Lock On |
Stem | BH FIT 60mm, 31.8mm, -6 |
Headset | Acros ICR FIT 36/45º, Block Lock 160º, BH FIT 36/45º, Block Lock 160º, BH SL Lock On |
Saddle | Prologo Nago RS |
Seat post | BH SL 31.6mm 420mm |
Reference | DX704 |
Frame size | S | M | L | XL |
Seat tube (mm) | 400 | 420 | 460 | 500 |
Top tube (mm) | 567 | 592 | 598 | 643 |
Base length (mm) | 430 | 430 | 430 | 430 |
Steering bushing (mm) | 90 | 90 | 100 | 120 |
Steering angle (°) | 67 | 67 | 67 | 67 |
Seat tube angle (°) | 76 | 76 | 76 | 76 |
Wheelbase (mm) | 1133 | 1159 | 1170 | 1212 |
Stack (mm) | 589 | 589 | 620 | 644 |
Reach (mm) | 420 | 445 | 470 | 490 |
1 Bicycle bought = 1 Tree planted. Alltricks is committed to the planet. Read more |
Gender |
Men Women |
Fork Travel | 100 |
Shock Travel | 100 |
Frame material | Carbon |
Groupset | Shimano XT M8100 12S |
