Note : Please note that specifications are subject to change without notice, based on component availability and other factors.

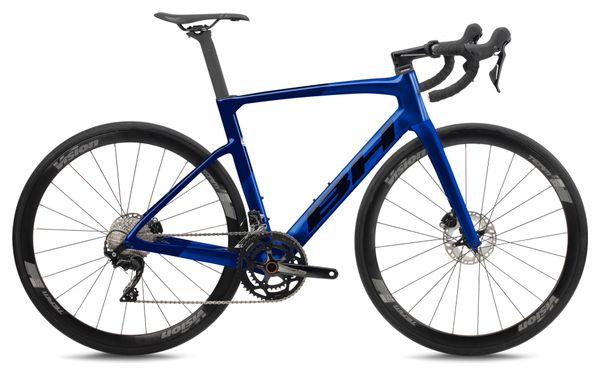

The BH RS1 3. 0 racing bike is ideal if you're fighting the wind with every pedal stroke. You fight the wind with every pedal stroke. It's a battle you'll never have to fight again, and one you'll enjoy. Only cyclists know the feeling of performance, power and efficiency you get when your body and machine are working at 100%. Addiction to speed.
Whether you're in the middle of a competition, riding your favorite development or simply enjoying your favorite route, you're fighting the wind with every pedal stroke.
A battle that will now be a piece of cake with the BH RS1 3.0.
Lightness and rigidity
HCIM internal hollow-core molding technology: thickness control and optimization in the most critical parts of the frame.
A compact frame with no bubbles or imperfections.
The Kamm Tail profile of the RS1 tubes ensures a totally aerodynamic cross-section.
Rigorous computational and fluid dynamics analyses have been carried out to match the aerodynamic values of our aero G8 range.
The seatpost clamping system is integrated into the down tube to optimize the aerodynamics of the top tube.
Low tightening torque guarantees maximum functionality.
The seatpost is optionally available with a 15° offset to adapt to all cyclists, enabling them to adopt positions seeking the best performance or greater comfort.
Using the BB386EVO system, the bottom bracket has an oversized diameter of up to 86 mm. In addition, the diameter of the bottom diagonal tubes has been increased by up to 80 mm, reducing tube thickness and increasing torsional and rear-end rigidity.
The RS1's extremely short chainstays make for a highly responsive bike that converts every pedal stroke into watts.
But they also produce a short, aerodynamic rear end.
The new RS1 frame incorporates the ACR system, which allows 100% of cables to be routed internally for a streamlined frame with no visible cables.
Wheel arch for tires up to 30 mm wide
Frame | Carbon: RS1 Disc ACR Monocoque, PC Layup |
Forks | Carbon: RS1 Disc Full Integrated Tapeder, Full Carbon 1.5 |
Derailleur | Shimano 105, 2x11 speeds |
Front derailleur | Shimano 105 |
Rear derailleur | Shimano 105, 11 speeds |
Cassette | Shimano 105, 11/34 teeth |
Chain | Shimano 105, 11 speeds |
Crankset | FSA, 50/34 teeth |
Brakes | Shimano 105 hydraulic |
Wheels | Vision Team35 |
Tires | BH 700x28 |
Handlebars | FSA Energy ACR Compact |
Stem | FSA NS ACR |
Headset | FSA ACR |
Saddle clamp | RS1 Integrated |
Saddle | San Marco Monza |
Seat post | RS1 Aero |
Reference | LD303 |
Frame size | XS | S | M | L | XL | XX |
Seat tube (mm) | 460 | 480 | 500 | 520 | 540 | 560 |
Top tube (mm) | 516 | 531 | 545 | 561 | 576 | 591 |
Base length (mm) | 412 | 412 | 415 | 415 | 418 | 418 |
Steering bushing (mm) | 120 | 135 | 150 | 175 | 190 | 215 |
Steering angle (°) | 71 | 72 | 72.5 | 73 | 73.5 | 73,5 |
Seat tube angle (°) | 74.5 | 74 | 73.5 | 73.5 | 73 | 72,75 |
Stack (mm) | 526 | 544 | 557 | 583 | 597 | 623 |
Reach (mm) | 370 | 375 | 380 | 388 | 393 | 398 |
1 Bicycle bought = 1 Tree planted. Alltricks is committed to the planet. Read more |
Manufacturer Weight (g) | 9000 |
Gender |
Women Men |
Wheel Size | 700mm |
Groupset | Shimano 105 11S |
