Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Please note that specifications are subject to change without notice, based on component availability and other factors. |
Whether you're in the middle of a competition, riding your favorite development or simply enjoying your favorite route, you're fighting the wind with every pedal stroke.

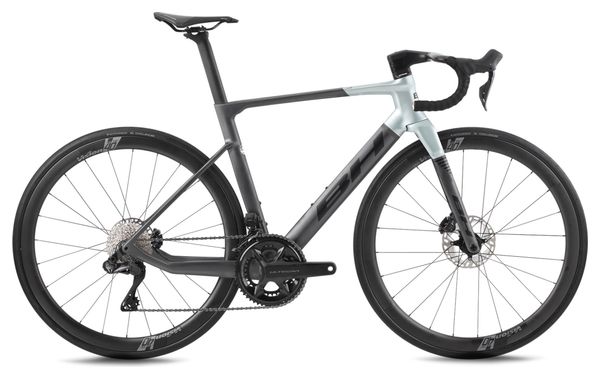

A battle that will now be a piece of cake with the BH RS1 5.5.
Lightness and rigidity
HCIM hollow-core internal molding technology: thickness control and optimization in the most critical parts of the frame.
A compact frame with no bubbles or imperfections.
The Kamm Tail profile of the RS1 tubes ensures a totally aerodynamic cross-section.
Rigorous computational and fluid dynamics analyses have been carried out to match the aerodynamic values of our G8 aero range.
The seatpost locking system is integrated into the down tube to optimize the aerodynamics of the top tube.
Low tightening torque guarantees maximum functionality.
The seatpost is optionally available with a 15° offset to adapt to all cyclists, enabling them to adopt positions seeking the best performance or greater comfort.
Using the BB386EVO system, the bottom bracket has an oversized diameter of up to 86 mm. In addition, the diameter of the bottom diagonal tubes has been increased by up to 80 mm, reducing tube thickness and increasing torsional and rear-end rigidity.
The RS1's extremely short chainstays make for a highly responsive bike that converts every pedal stroke into watts.
But they also produce a short, aerodynamic rear end.
The new RS1 frame incorporates the ACR system, which allows 100% of cables to be routed internally for a streamlined frame with no visible cables.
Wheel arch for tires up to 30 mm wide
Product advantages :
- Carbon frame,fork and wheels.
- Shimano Ultegra Di2 2x12-speed transmission.
- Shimano Ultegra hydraulic disc brakes.
Details :
| Frame | Carbon: RS1 Disc ACR Monocoque, PC Layup |
| Forks | Carbon: RS1 Disc Full Integrated Tapeder, Full Carbon 1.5 |
| Derailleur | Shimano Ultegra Di2 Hydra 2x12 speed |
| Front derailleur | Shimano Ultegra Di2 |
| Rear derailleur | Shimano Ultegra Di2 12 speed |
| Cassette | Shimano Ultegra 11/34 teeth |
| Chain | Shimano Ultegra 12v |
| Crankset | Shimano Ultegra 52/36 teeth |
| Brakes | Shimano Ultegra hydraulic |
| Wheels | Vision SC45 |
| Tires | Hutchinson Challenger 700x 28 |
| Handlebars | Evo Monocoque ACR |
| Stem | Evo Monocoque ACR |
| Headset | FSA ACR |
| Seat clamp | RS1 Integrated |
| Saddle | Prologo Nago R4 |
| Seat post | RS1 Aero |
Geometries :
| Frame size | XS | S | M | L | XL | XXL |
| Seat tube (mm) | 460 | 480 | 500 | 520 | 540 | 560 |
| Top tube (mm) | 516 | 531 | 545 | 561 | 576 | 591 |
| Steering bushing (mm) | 120 | 135 | 150 | 175 | 190 | 215 |
| Base length (mm) | 412 | 412 | 415 | 415 | 418 | 418 |
| Steering angle (°) | 71 | 72 | 72.5 | 73 | 73.5 | 73.5 |
| Seat tube angle (°) | 74.5 | 74 | 73.5 | 73.5 | 73 | 72.75 |
| Stack (mm) | 526 | 544 | 557 | 583 | 597 | 623 |
| Reach (mm) | 370 | 375 | 380 | 388 | 393 | 398 |
MORE INFORMATION
See all our Road bikes.
Features
| Manufacturer Weight (g) | 8000 |
| Gender |
Women Men |
| Wheel Size | 700mm |
| Groupset | Shimano Ultegra Di2 |
