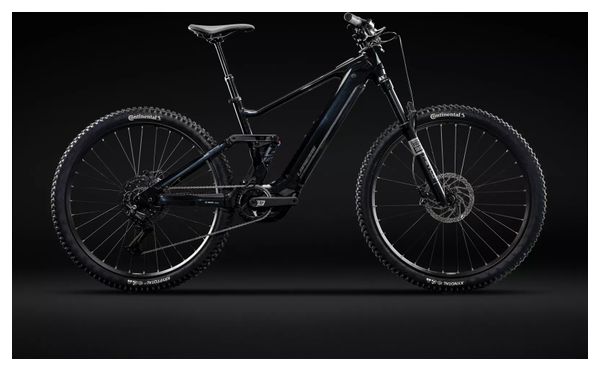

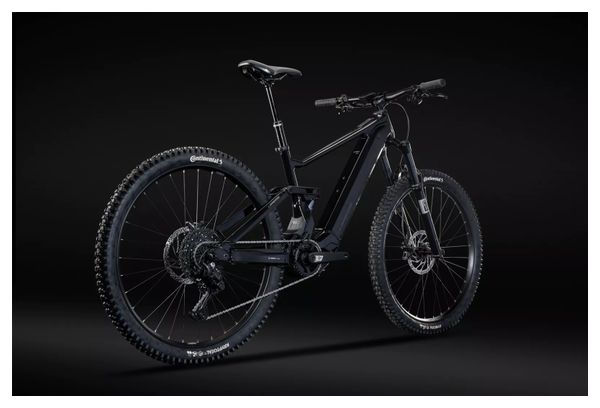

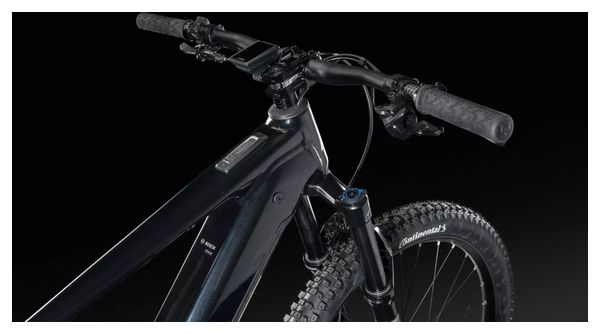

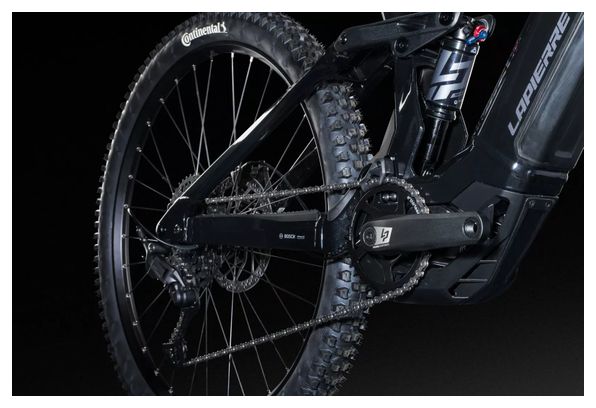

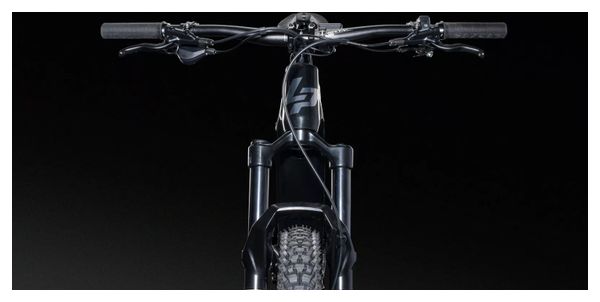

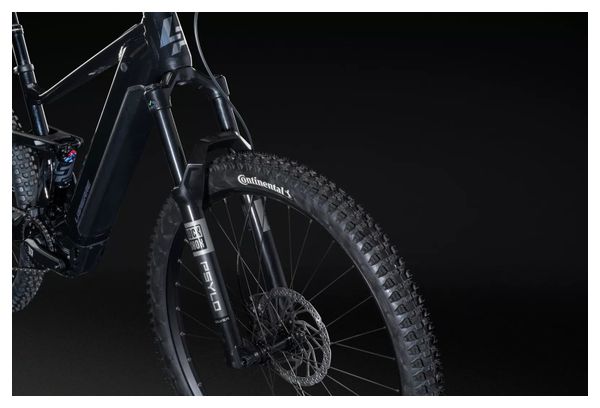

Lapierre Overvolt AM 4.6 Full-Suspension EMTB Shimano Cues 10S 600Wh MX (29/27.5'') Beige 2025
Lapierre
Color : Black
+ 1 Color
Description
What size do you need?
Choosing the right sized bike depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride
Measure yourself accurately
To get started, measure your height and use the size chart available on each product description.
What to do if you are in between bike sizes?
If you are on the edge of two different bike sizes, don't worry, you'll probably be ok on either size (rather than thinking that one size will be awful and the other will fit). Indeed, bikes are adjustable: the seatpost can slide up and down, the saddle can move backwards and forwards and you can even switch out parts like the stem for different sized ones to help the bike fit better.
Finding out whether or not you should pick a bigger or a smaller frame is sometimes as simple as personal preference, but there are a few simple ways to work out which might suit best:
- If you’re flexible, you might prefer a shorter head tube, so the smaller size might work out better for you. You can use a longer stem to make the reach more comfortable.
- On a bigger bike, the reach to the handlebars will be longer. This means that if you have proportionally longer arms, you might be more comfortable on a bigger frame.
Still confused? Contact us
| Please note that specifications are subject to change without notice, based on component availability and other factors. |
The Lapierre Overvolt AM is a real all-rounder for the mountains: at ease on both ascents and descents. This electrically-assisted mountain bike, whose development priority was to centralise and lower the centre of gravity, can tackle the most technical trails. The differentiated wheels make the most of both diameters. The result is a delight to ride and unlimited fun.
Main features:
- Aluminium frame, absolute kinematics.
- Bosch sport performance motor.
- Lapierre components, Shimano transmission.
Features:
| Frame | Aluminium: Bosch Overvolt AM, UHD hanger |
| Fork | Rockshox, Domain Gold Isolator R 15x110 29’ 170 mm |
| Shock | Lapierre, Shock 205x60 mm Trunnion/30x8 mm |
| Motor | Bosch Performance line CX, 85Nm |
| Battery | Bosch, Powertube Horizontal 600Wh |
| Display | Bosch, Kiox 300, SmartSystem |
| Derailleur shifter | Shimano Cues U6000, 1x10-speed |
| Rear Derailer | Shimano Cues U6000 Shadow+, 10-speed |
| Cassette | Shimano Cues LG400, 11-48T |
| Chain | Shimano Cues LG500 |
| Crankset | Samox, EC40-F13-ISIS + E13 E-spec steel chainring 34T |
| Brakes | Shimano M4100, 4 pistons, hydraulic, Shimano RT30 discs, 203/203 mm |
| Wheelset | Front : Ryde Disc30 32H, 30-622 Black Anod / Rear: Disc35 32H, 35-584 Black Anod, Shimano hubs 15x110/12x148 mm, HG freehub |
| Tires | Front: Continental Kryptotal F Enduro Continental Kryptotal F Enduro Super soft 60-622 / Rear: Continental Kryptotal R Enduro Soft 60-584 |
| Handlebar | Lapierre Alloy 6061 DB, Width: 800mm, Rise: 30mm, Ø: 35 mm |
| Stem | Lapierre alloy CNC, Ø: 35 mm |
| Saddle | Royal Vivo |
| Seatpost | JD, dropper post, YSP18, Ø: 31.6 mm + Shimano lever |
| Weight | -- |
Geometries :
| Frame size | S | M | L | XL |
| Seat tube (mm) | 390 | 430 | 460 | 490 |
| Top tube (mm) | 588 | 610 | 634 | 664 |
| Chainstay (mm) | 460 | 460 | 460 | 460 |
| Head tube (mm) | 110 | 130 | 150 | 160 |
| Head tube angle (°) | 64.5 | 65 | 65 | 65 |
| Seat tube angle (°) | 76.5 | 76.5 | 76.5 | 76.5 |
| Wheelbase (mm) | 1231 | 1248 | 1276 | 1311 |
| Stack (mm) | 638 | 641 | 659 | 663 |
| Reach (mm) | 433 | 455 | 475 | 500 |
| Seatpost (mm) | 130 | 130 | 150 | 170 |
| Stem (mm) | 35 | 35 | 45 | 45 |
MORE INFORMATION
See our best MTBs.
See the whole range of E-Bikes available.
Features
| Frame material | Alloy |
| Groupset | Shimano Cues |
